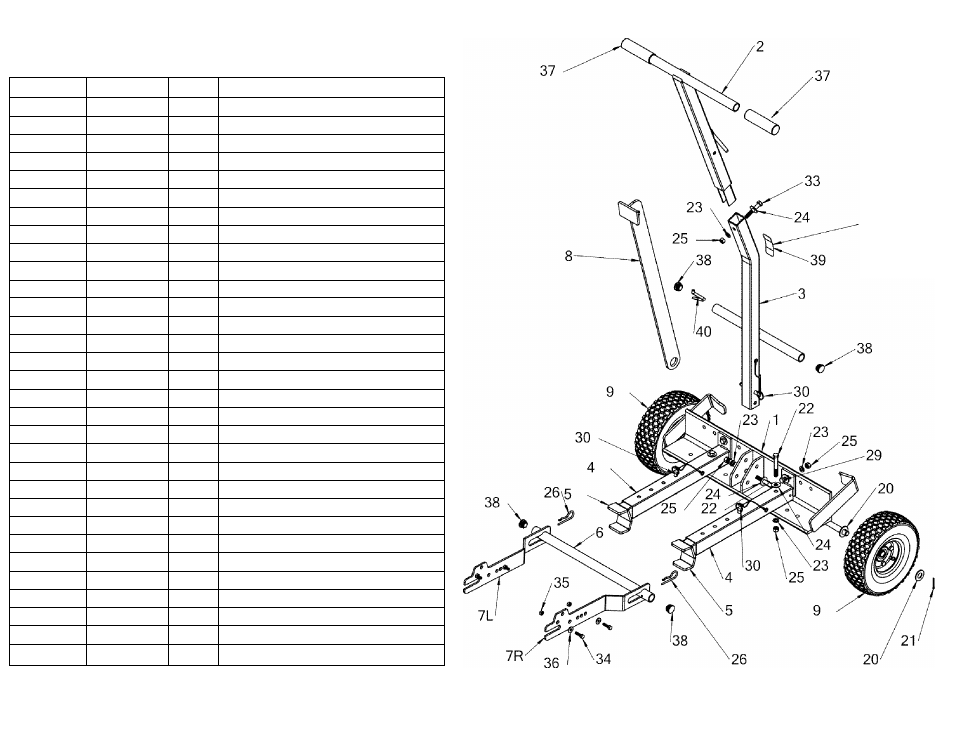

Repair Parts List
MODEL NUMBER - 610.24600
REF. NO. PART NO. AMT. DESCRIPTION
1
51001
1
Body Angle
2
51002
1
Handle Top
3
51003
1
Handle Bottom
4
41009
2
Lift Tube Assembly
5
51004
2
Lift Tube Extension
6
51005
1
Lift Cross Tube
7L
410131
1
Tractor Mounting Bar - Left
7R
410132
1
Tractor Mounting Bar - Right
8
51006
1
Stabilizer Bar
9
310011
2
Tire 4.10/3.50-4
10
310031
1
Hardware Bag
11
310041
1
Assembly Manual
20
310071
4
5/8" SAE Flat Washer
21
300081
2
Cotter Pin 1/8"
X
1-1/2"
22
310051
3
3/8"-16
X
2-3/4" Hex Bolt
23
310072
6
3/8" Split Lock Washer
24
310073
8
3/8" USS Flat Washer
25
310062
6
3/8"-16 Hex Nut
26
300082
2
Hair Pin Cotter .148
27
310061
4
3/8"-16 Nylok Hex Nut
28
310054
2
3/8"-16
X
1-1/2" Self-thread Bolt
29
310055
6
3/8"-16x 1-1/4" Hex Bolt
30
310081
4
3/8"
X
2-1/8" Ring Grip Pin
33
310053
1
3/8"-16x2-1/4" Hex Bolt
34
310052
4
1/4"-20x1" Hex Bolt
35
310065
4
1/4"-20 NylockHexNut
36
310075
4
1/4" USS Flat Washer
37
310182
2
Handle Grip
38
310221
4
Tube Plug RT8-1
39
31026
1
Handle Scuff Pad
40
31019
1
Valeo Snap Button
Peel off
backing,
adhere to
handle.
FOR MISSING PARTS, Call 1-800-652-2321, Monday - Friday, 8 a.m. - 5 p.m. E.S.T.
