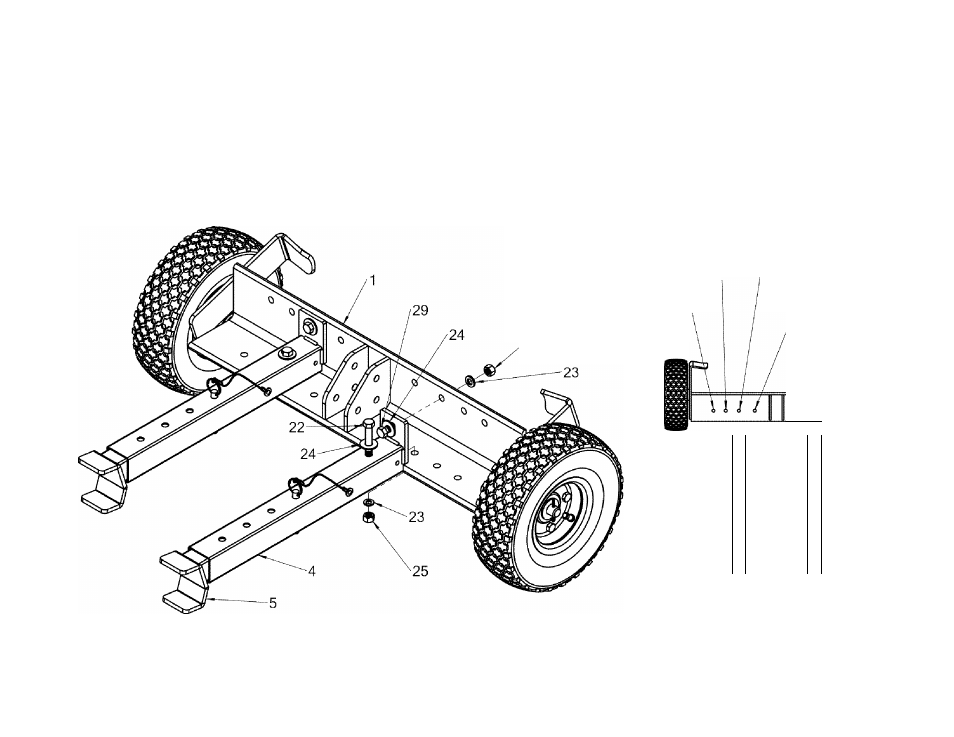

Lift tubes come pre-assembled. Attach lift tube assemblies (4 ) to angle frame (1 ) using bolts (22 ), flat washers ( 24 ), split lock washers (23 )
and hex nuts (25 ).
•
Secure rear of lift tube assembly (4 ) to angle frame (1 ) using bolts ( 2 9 ) , flat washers ( 24 ), split lock washers (23 ) and hex
nuts ( 2 5 ) .
Note: Over-tightening receiver bolts (22 ) could cause damage to lift tubes ( 4 ).
Assemble Tractor Lift
Attach Lift Tubes to Angle Frame
Determining the width between lift tubes.
Front of Craftsman Tractors
Front of Craftsman Zero Turn
25
Note; The higher the lift tube extensions (5)
are positioned, the harder the tractor will be to lift.
Brush guard bumper
(can a ¡so be used for
front of Craftsman tractor)
Push mower
o o o o
D C B A A
B
o
O
X
X
o
o
o
o
o
o
_
_
Settings:
A.
Push Mower
B. Brush guard / Bumper installed
C. Front of Craftsman Tractor
D. Front of Craftsman Zero Turn
FOR MISSING PARTS, Call 1-800-652-2321, Monday - Friday, 8 a.m. - 5 p.m. E.S.T.
