OPERATION

Using the Tractor Lift

Step 3. Engaging Stabilizer Bar

Stabilizer bar MUST be engaged immediately after raising the tractor.

WARNING; Failure to engage stabilizer bar may result in serious personal

Injury and or property damage.

•

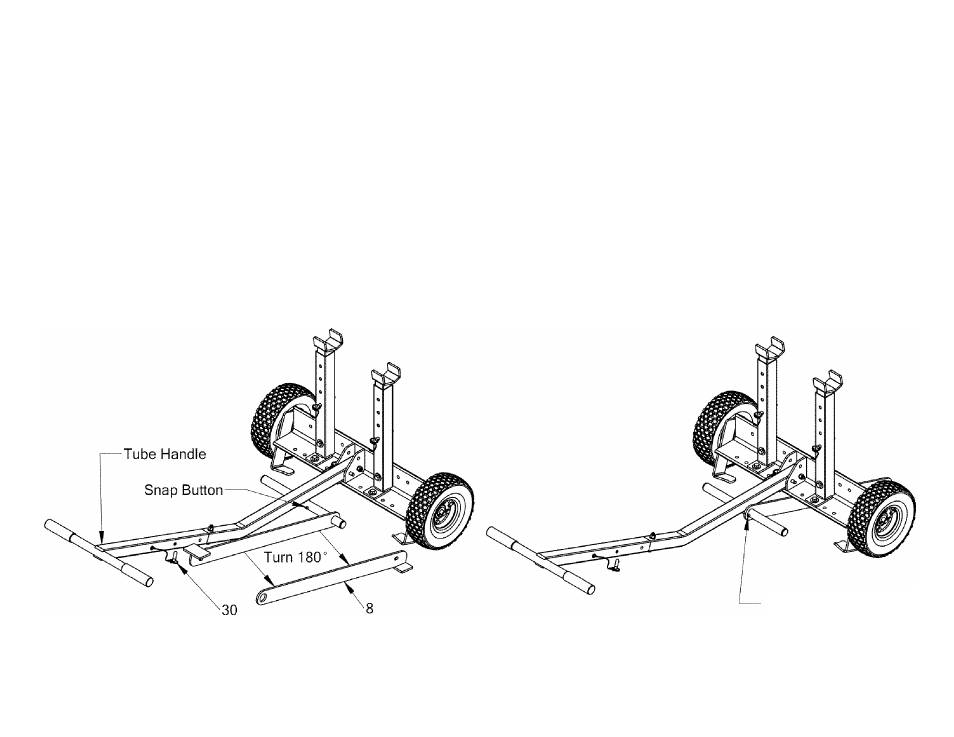

Remove ring grip pin { 30 ) from tube handle. Press snap button

and slide stabilizer bar ( 8 ) from foot bar tube.

•

Turn stabilizer bar 180 degrees as shown at bottom of Figure 1.

•

Position stabilizer bar under base of unit between wheels.

•

Slide stabilizer bar back onto foot bar tube making sure the bar is
positioned back over snap button.

Snap Button

Figure 1

Figure 2

FOR MISSING PARTS, Call 1-800-652-2321, Monday - Friday, 8 a.m. - 5 p.m. E.S.T.
