OPERATION

A. WARNING: Always remove battery pack from

your saw when you are assembling parts, making

adjustments, assembling or removing blades,
cleaning, or when not in use. Removing battery
pack will prevent accidental starting that could
cause serious personal injury.

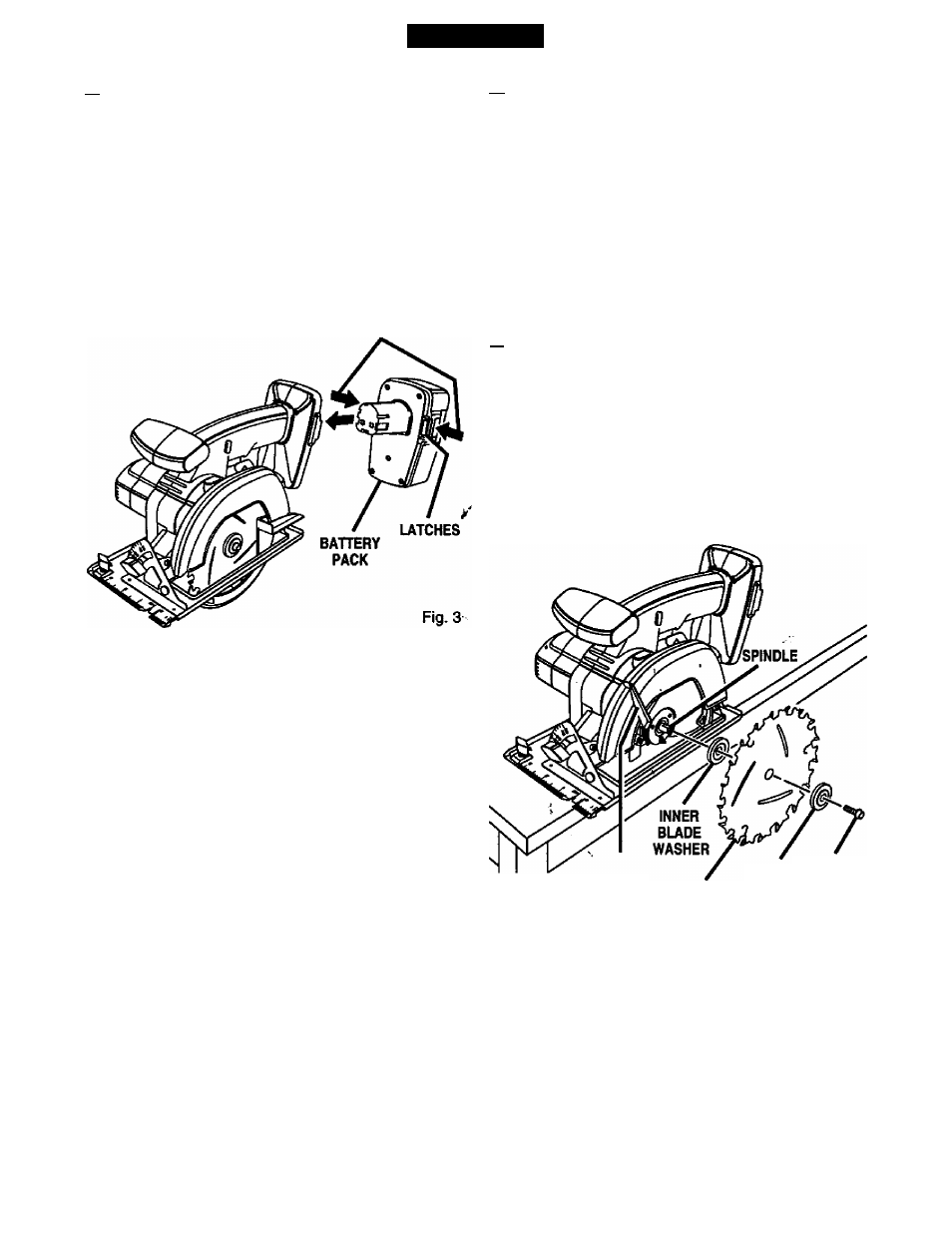

TO REMOVE BATTERY PACK

■ Locate latches on end of battery pack and

depress to release battery pack from your saw.

See Figure 3.

DEPRESS LATCHES TO

RELEASE BAHERY PACK

Remove battery pack from your saw.

TO INSTALL BATTERY PACK

See Figure 3.

Place battery pack in your saw. Align raised rib
inside saw with groove on battery pack.

Make sure the latches on each side of your
battery pack snap in place and battery pack is
secured in saw before beginning operation.

CAUTION: When placing battery pack in your
saw, be sure raised rib inside saw aligns with
groove on battery pack and latches snap in place
properly. Improper assembly of battery pack can
cause damage to internal components.

A. WARNING: A 5-1/2 in. blade is the maximum

blade capacity of your saw. Never use a blade

that is too thick to allow outer blade washer to
engage with the flats on the spindle. Larger

blades will come in contact with the blade guard,

while thicker blades will prevent blade screw
from securing blade on spindle. Either of these

situations could result in a serious accident.

TO ASSEMBLE OR REMOVE BLADE

TO ASSEMBLE BLADE:

■ Remove battery pack from saw.

A

WARNING: Failure to remove battery pack from

saw could result in accidental starting causing
possible serious personal injury.

■ Locate latches on end of battery pack and depress to

release battery pack from your saw. See Figure 3.

■ Remove blade wrench (5 mm hex key) from

storage area. See Figure 2.

■ Depress spindle lock button and remove blade

screw and outer blade washer. See Figgre 4.

LOWER

BLADE

GUARD

HANDLE

BLADE

OUTER

BLADE

WASHER

Fig. 4

Note: Turn blade screw clodrwise to remove.

■ Wipe a drop of oil onto inner blade washer and

outer blade washer where they contact blade.

A WARNING: If inner blade washer has been

removed, replace it before placing blade on

spindle. Failure to do so could cause an accident
since blade will not tighten properly.

10
