TRACTOR--MODEL NUMBER 917.2720601

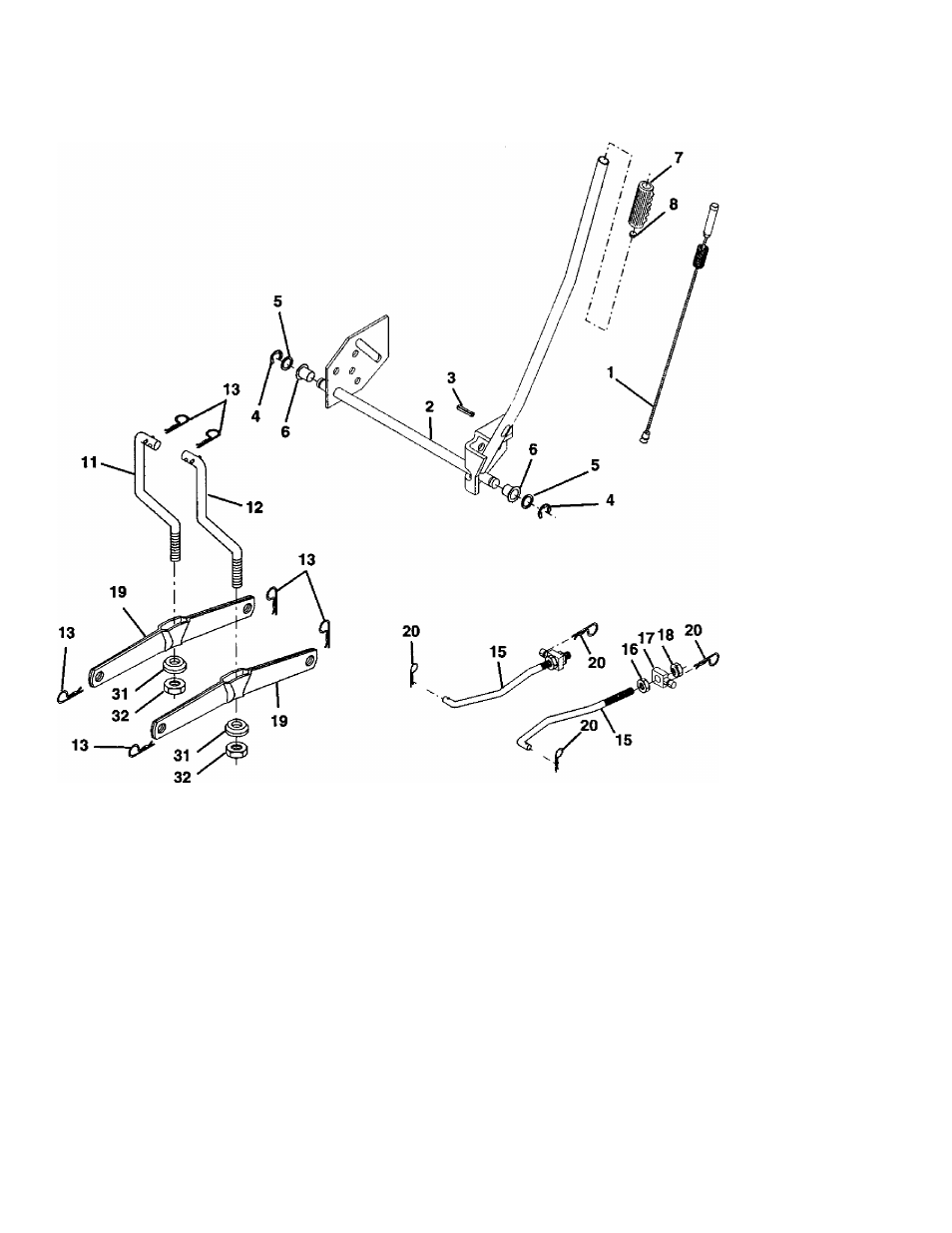

LIFT ASSEMBLY
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 15Э460 Lift Lever Inner Wire Assembly 15 173288 Link. Front
2 159471 Shaft Assembly, Lift 16 73350800 Nut, Hex, Jam 1/2-13 UNC
3 105767X Pin, Groove 17 175689 Trunnion
4
5 12СХХЮ02
19211621 E'Ring
Washer 21/32 x 1 x 21 Gauge
18 73800800 Locknut, Hex. with Washer Insert
1/2-13 UNC
6 120183X Bearing, Nylon 19 139868 Arm, Suspension, Rear
7 125631X Grip, Handle, Fluted 20 163552 Retainer Spring
8 122365X Button, Plunger, Red 31 169865 Bearing, Pvt. Lift
11
12 139865
139866 Link, Lift, LH.
Link, Uft, R.H. 32 73540600 Nut. Crownlock 3/8-24
13 STD624008 Retcuner Spring
NOTE: All component dimensions given in U.S. inches
1 Inch - 25.4 mm
