Craftsman 917.2720601 - Manual (Page 42)

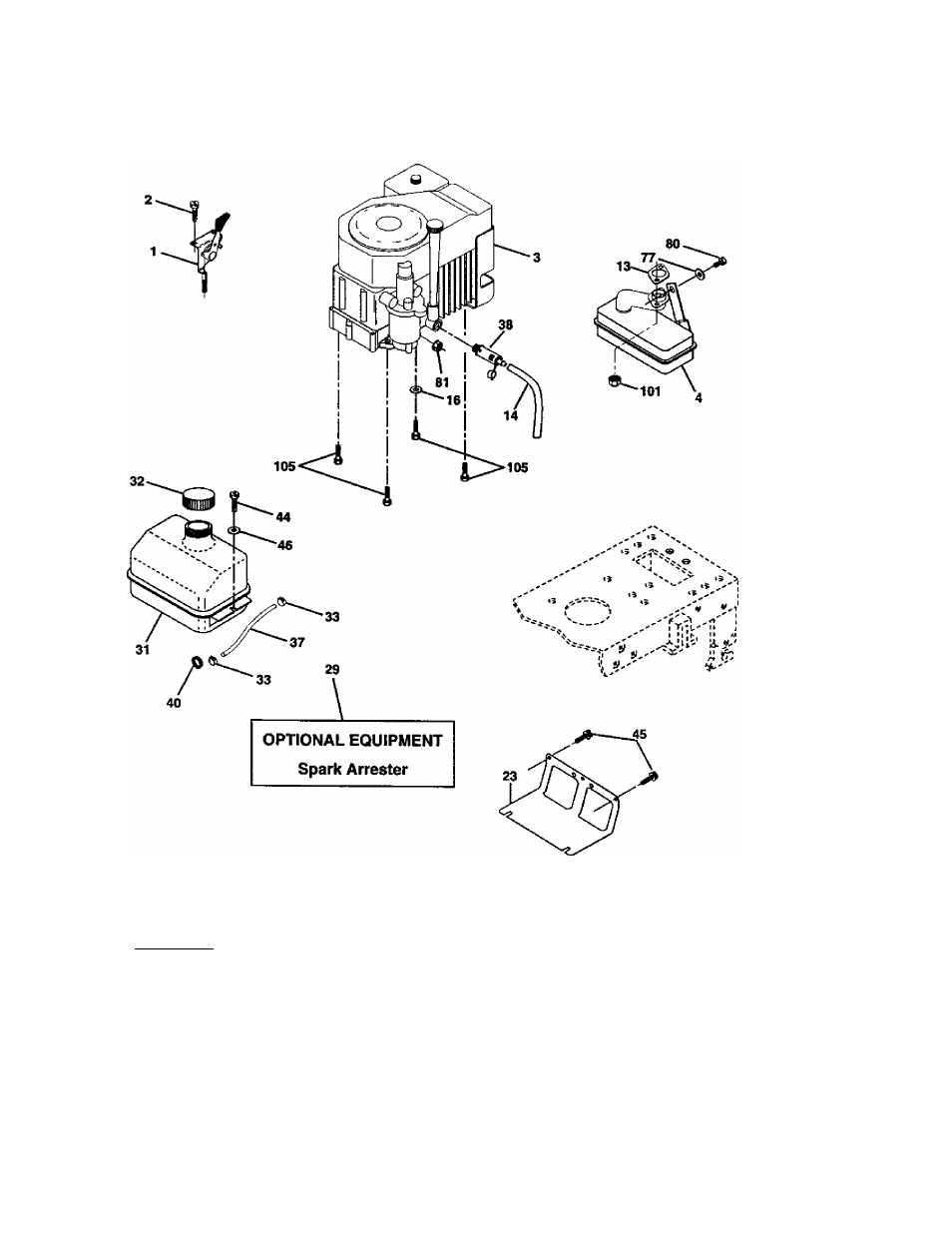

ENGINE
TRACTOR - - MODEL NUMBER 917.2720601
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 170548 Control, Throttle 37 137040 Line, Fuel
2 17720408 Screw, Hex Head, Thread Cutting 38 148315 Plug, Drain Oil Easy
1/4-20 X 5/8 40 124028X Bushing Snap
3 Engine, (See Breakdown) Kohler 44 17670412 Screw, Hex Washer Head, Thd.,
Model No. CV460-26509 Roll. 1/4-20 X 3/4
4 174667 Muffler 45 17000612 Screw Hex Wsh Thdr 3/8-16 x 3/4
13 12-041-03 Gasket Kohler 46 19091416 Washer 9/32 x 7/8 x 16 Gauge
14 148456 Tube Drain Oil Easy 77 19101216 Washer 5/16x3/4x16 Ga. ”
16 STD551237 Washer 80 74760508 Bolt Hex Hd 5/16-18 Uncx 1/2
23 169837 Shield Bm/Dbr Guard 81 73510400 Nut Keps Hex 1/4-20Unc
29 137180 Arrestor, Spark 101 M73030800 Nut Flan-ge M8-1,25 Non-Lk Zinc
31 109202X Tank, Fuel 105 17120616 Screw 3/8-16 X 1
32 158990 Cap Assembly, Fuel Sears,
Vented
NOTE: All component dimensions given In U.S. inches
33 123487X Clamp, Hose 1 inch = 25.4 mm
42
