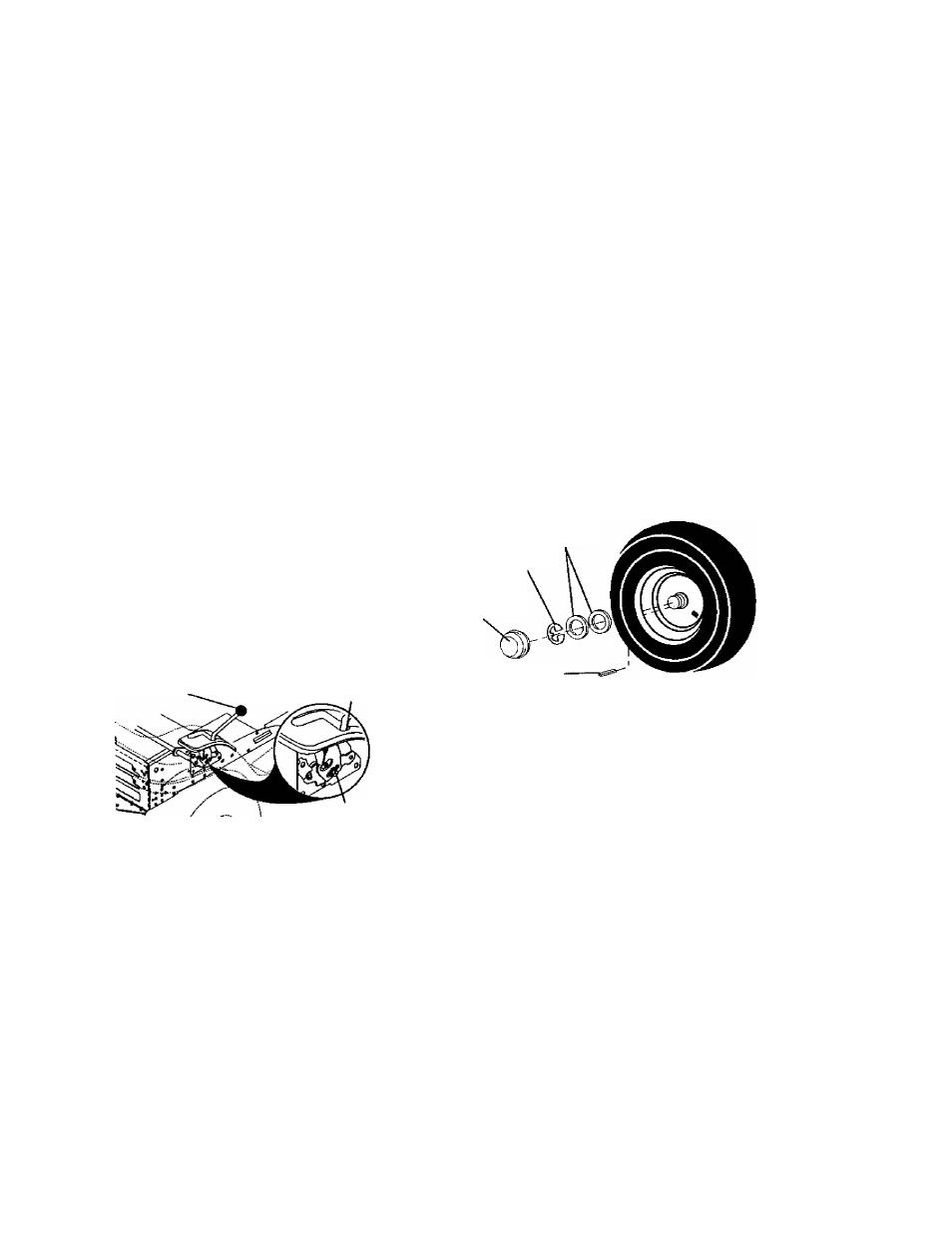

TRANSAXLE MOTION CONTROL
LEVER NEUTRAL ADJUSTMENT
The motion control lever has been preset
at the factory and adjustment should not
be necessaiy.
Loosen adjustment bolt in front of the
right rear wheel, and lightly tighten.
Start engine and move motion control
lever until tractor does not move
forward or backward.
Hold motion control lever in that
position and turn engine off.
While holding motion control lever in
place, loosen the adjustment bolt.
Move motion control lever to the
neutral (N) (lock gate) position.
6. Tighten adjustment bolt securely.
NOTE: If additional clearance is needed
to get to adjustment bolt, move mower
deck height to the lowest position.
After above adjustment is made, if the
tractor still creeps fonward or backward
while motion control lever is in neutral
position, follow these steps:
1. Loosen the adjustment bolt.
Move the motion control lever 1/4 to
1/2 inch in the direction it is trying to
creep.
Tighten adjustment bolt securely.
Start engine and test.
If tractor still creeps, repeat above
steps until satisfied.
Motion Control Lever
Lock Gate
2 .
3.
4.
5.
FRONT WHEEL TOE-IN/CAMBER
The front wheel toe-in and camber are
not adjustable on your tractor. If damage
has occurred to affect the front wheel toe-
in or camber, contact a Sears or other
qualified senrice center.
TO REMOVE WHEEL FOR REPAIRS
1. Block up axle securely.
2. Remove axle cover, retaining ring and
washers to allow wheel removal (rear
wheels have a square key • Do not
lose).
3. Repair tire and reassemble.
NOTE: On rear wheels only: align grooves
in rear wheel hub and axle. Insert square
key.
4. Replace washers and snap retaining
ring securely in axle groove.
5. Replace axle cover.
NOTE: To seal tire punctures and prevent
flat tires due to slow leaks, purchase and
use tire sealant from Sears. Tire sealant
also prevents tire dry rot and corrosion.
Washers
Retaining
Ring
Axle
Cover
Adjustment Bolt
TRANSMISSION REMOVAL/REPLACE-
MENT
Should your transmission require
removal for senrice or replacement, it
should be purged after reinstallation and
before operating the tractor. See “PURGE
TRANSMISSION” in the Operation
section of this manual.
TO ADJUST STEERING WHEEL ALIGN­
MENT
If steering wheel crossbars are not
Square Key
(Rear Wheel Only)
TO START ENGINE WITH A WEAK
BATTERY
^WARNING: Lead-add batteries generate
explosive gases. Keep sparks, flame and
smoking materials away from lotteries.
Always wear eye protection when around
batteries.
If your battery is too weak to start the engine, it
should be recharged. (See “BATTERY" in the
MAINTENANCE section of this manual).
If "jumper cables" are used for emergency
starting, follow ftiis procedure:
IMPORTANT: Yojr tractor is equipped with a
12 volt system. The other vehicle must also be
a 12 volt system. Do not use your tractor
battery to start other vehicles.
TO ATTACH JUMPER CABLES -
horizontal (left to right) when wheels are i. Connect one end of the RED cable to
positioned straight fon/vard, remove
steering wheel and reassemble with
crossbars horizontal. Tighten securely.
the POSITIVE (+) terminal of each
battery(A-B), taking care not to short
against tractor chassis.
2. Connect one end of the BLACK cable
to the NEGATIVE (-) terminal (C) of
26 fully charged battery.
