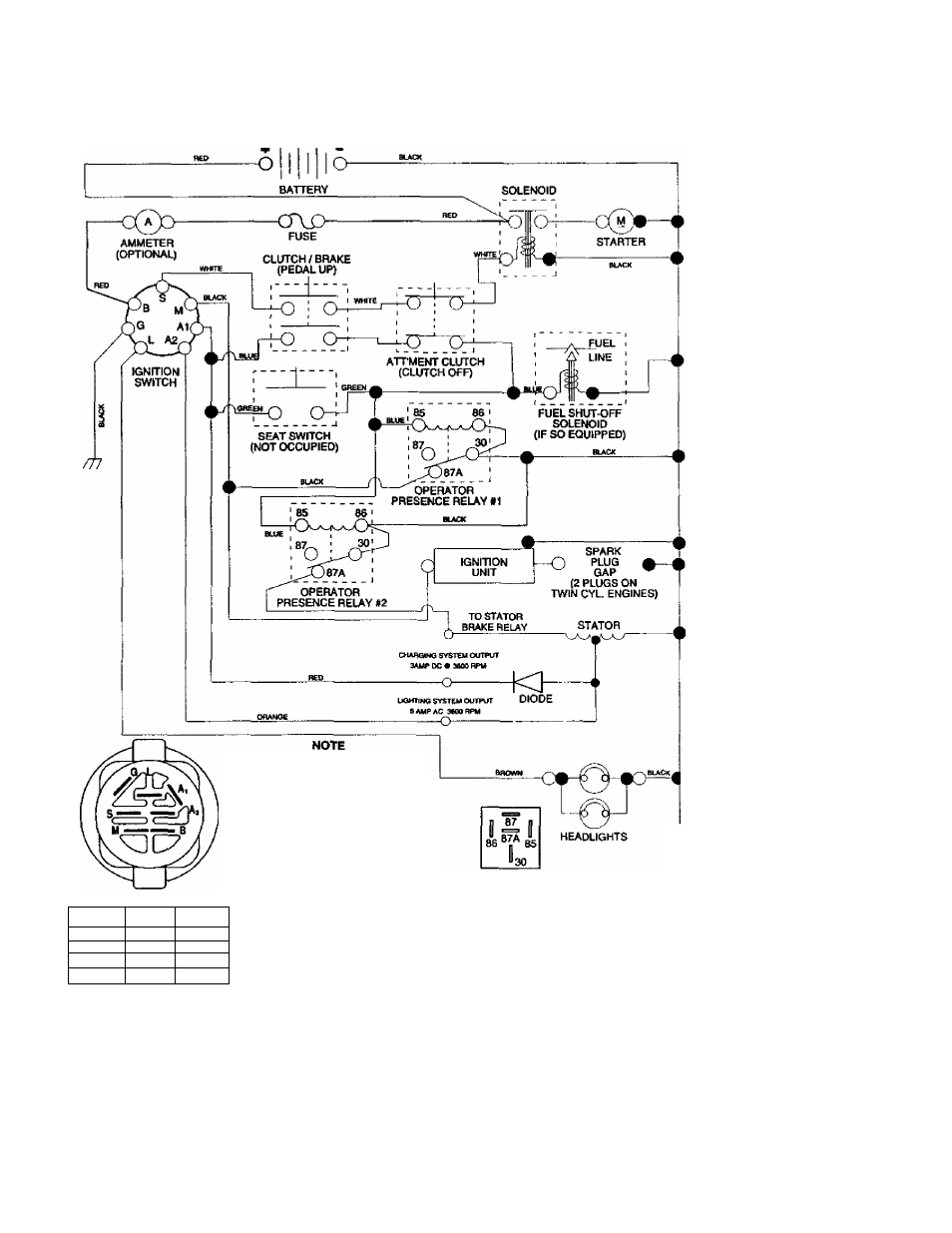

SCHEMATIC

TRACTOR--MODEL NUMBER 917.2720601

IGNITION SWITCH

POSITION

CIRCUIT

-MAKE"

OFF

MH3+A1

NONE

RUWLIQHT

B+A1

A2+L

RUN

B+A1

NONE

START

B + S * A 1

NONE

YOUR TRACTOR IS

EQUIPPED WITH A SPECIAL

ALTERNATOR SYSTEM.

THE UGHTS ARE NOT

CONNECTED TO THE

BATTERY. BUT HAVE THEIR

OWN ELECTRICAL SOURCE.

BECAUSE OF THIS, THE

BRIGHTNESS OF THE LIGHTS

WILL CHANGE WITH ENGINE

SPEED. AT IDLE THE LIGHTS

WILL DIM. AS THE ENGINE IS

SPEEDED UP, THE LIGHTS

WILL BECOME THEIR BRIGHTEST.

RELAY

NON-REMOVABLE

CONNECTIONS

WIRING INSULATED CLIPS

NOTE: IF WIRING INSULATED CLIPS WERE REMOVED FOR

SERVICING OF UNIT, THEY SHOULD BE REPLACED TO

PROPERLY SECURE YOUR WIRING.

rti

REMOVABLE

CONNECTIONS
