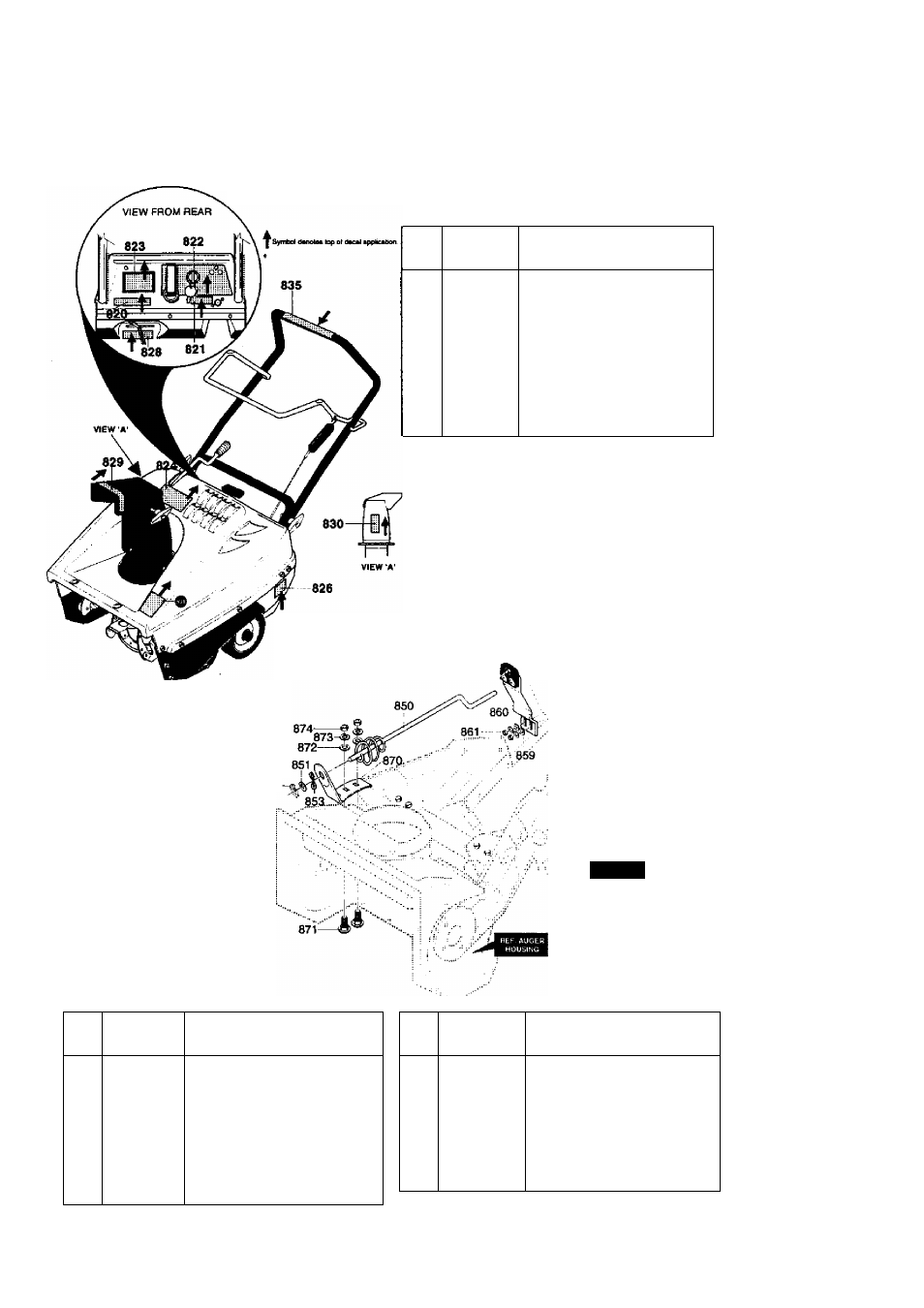

CRAFTSMAN 21" - 5H.P. SNOW THROWER 536.885210
DECALS
REF.
NO. PART NO. PART NAME
821 340737 Decal, Electric Start
822 761568 Decal. Das 21 "ES Sears
823 761569 Decal. Spark Plug Access
824 761658 Decal, Deco5/21ES
826 69880 Decal, Warn Hot Muffler
828 318494 . Decal, Choke
829 761078 Decal, Danger Stripe
830 70142 Decal, Danger Chute Hand
831 70141 Decal. Danger Auger Foot
835 761150 Decal, Auger Control Bar
344251A
CHUTE CONTROL ROD ASSEMBLY ^57
,, sse
854
' '■
858
852
R E F L O W E R
H A N D L E
REF.
NO. PART NO. PART NAME
REF.
NO. PART NO. PART NAME
850 337941 Chute Rod Assembly 859 120393 Washer, Flat .344x.69x.065
851 71072 Washer, Flat .406x.81x.066 860 71060 Washer. Sptlk ,31x.58x.08
852 71082 Cotter Pin .094x1.00 861 71034 Nut, 1/4-20 Reghex
853 313431 Washer, Curved Spring 870 333946-853 Chute Rotate Bracket
854 335264 Chute Crank Brkt Assy 871 340720 Bolt, 5/16-18X.75 Carr.
855 71072 Washer, Flat ,406x.81x.066 872 71071 Washer. Flat.349x.69x.066
856 57082 Knob, Sleeve 873 71060 Washer, Sptlk .31x.58x.08
857 331532 Nut, Push 874 71037 Nut. 5/16-18 Reghex
858 3809 Bolt 1/4-20X.63 Carr. 334313C
