CRAFTSMAN 21" - 5H.P. SNOW THROWER 536.885210

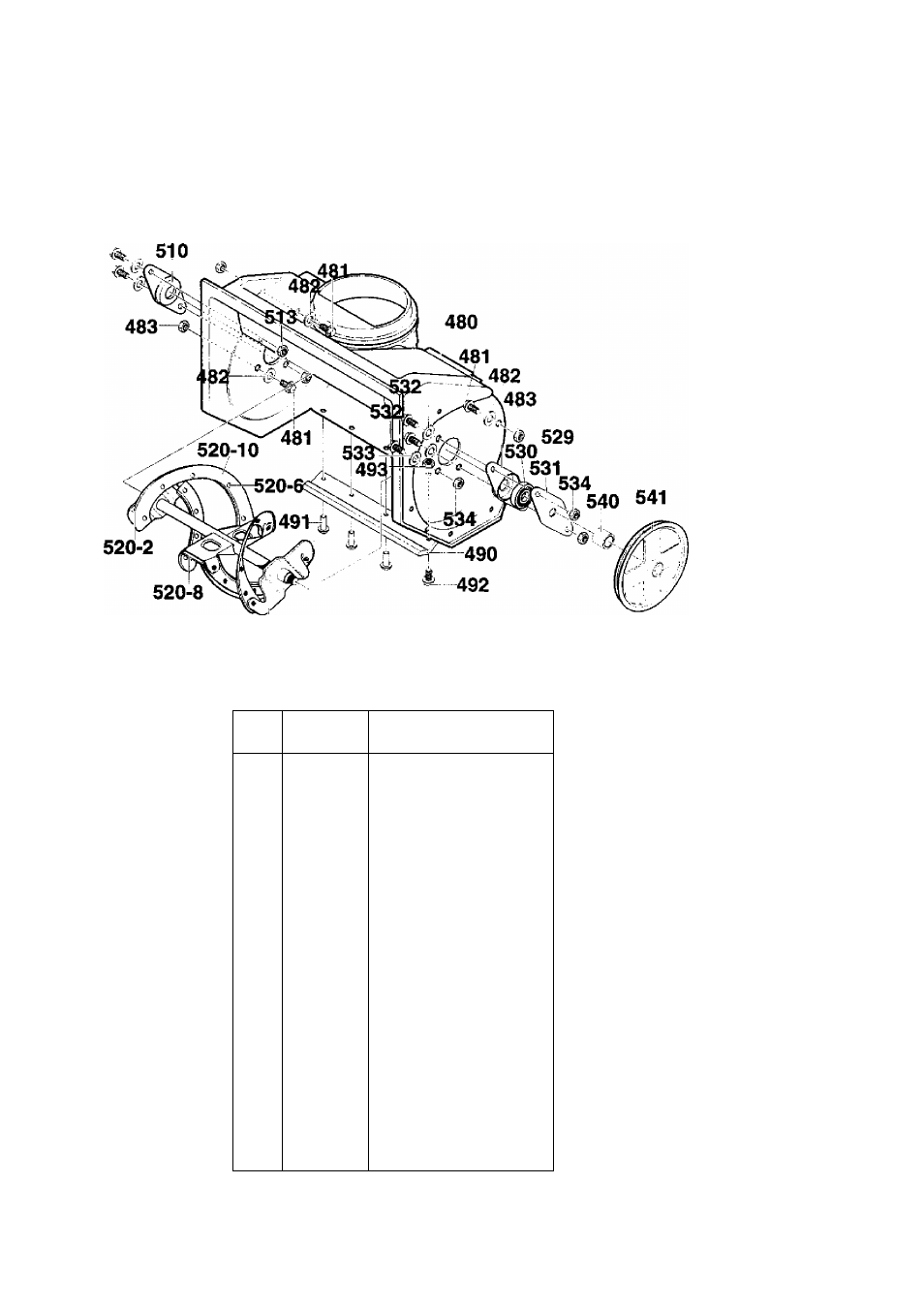

AUGER HOUSING ASSEMBLY
483
520
REF.
NO.
PART NO. PART NAME
480 340091 Auger Housing Assy.
481 302628 Screw, 1/4-20X.75
482 71067 Washer. Flat .28lx.63x.065
483 73826 Nut, 1/4-20 Reghexctrik
490 55323 Scraper Blade
491 577707 Rivet, Ovset
492 302628 Screw 1/4-20X.75
493 302635 Nut, 1/4-20 Ctrlock
510 577023 Brng, FI 670x1,25
511 710263 Screw 1/4-20x,1,00
512 71067 Washer, Flat .281x.63x.065
513 302635 Nut, 1/4-20 Ctrik
520 327072 Auger Assembly
520-2 302565 Blade, Auger
520-6 49838 Rivet, Ovset
520-8 335992 Blade, Center ^
520-10 307049-853 Auger & Blade Assy
529 580251 Retainer, Bearing
530 43846 Brng, Ball 6203-2RS
531 334287 Plate, Retnr Brng
532 579052 Screw 1 /4-20X.63
533 71067 Washer, Flat .281x.63x.065
534 73826 Nut, 1/4-20 Reghexctrik
540 578101 Spacer, Slev .640x.88x.15
541 313670 Pulley. Poly 6'
