ASSEMBLY
TO INSTALL THE THROTTLE
CONTROL ASSEMBLY
@ Place a No 10 x 1-1/2 inch hex head screw down
through the hole in the upper handle right side and
attach the throttle control to the underside of the handle
(see Fig, S),
m Attach the throttle cable to the right lower handle by
threading a tie strap through the hole in the lower
handle and around the throttle cable on the outside o1
the handle.
# Thread the pointed end of the strap through the other
(square) end of the strap and pull tight around the
throttle cable and lower handle.
NOTE: One side of the tie strap is rough, while the other
side is smooth The rough side must be on the inside of the
loop formed when the ends of the tie strap are put together,
® Try to loosen the tie strap, if it will loosen, it is put
together with the smooth side to the inside of the loop
Remove the tie strap and reverse the direction
® Cut off excess strap

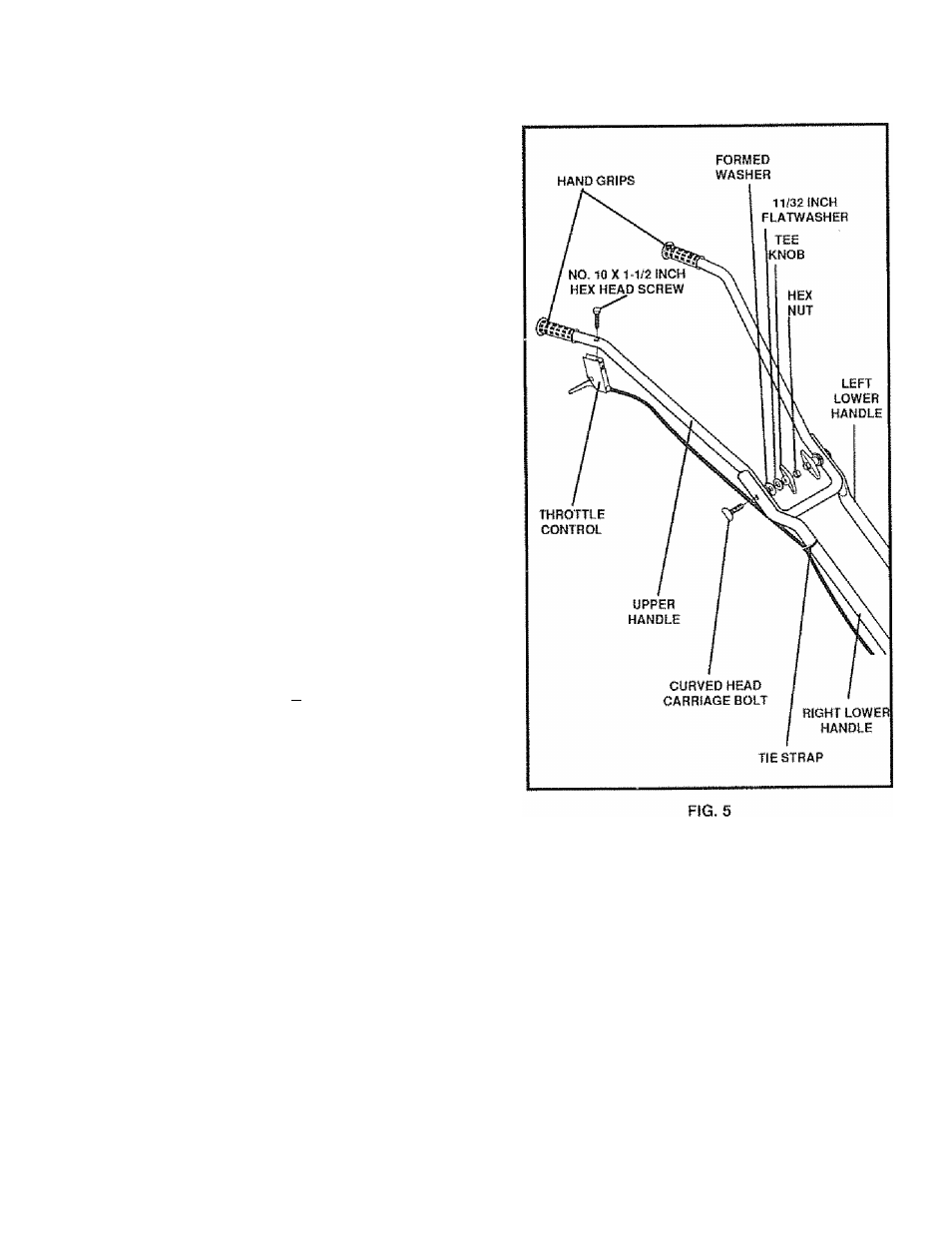

HANDGRIP ASSEMBLY
# Install the hand grips onto the upper handies (see Fig
5). It may be necessary to lubricate the handles with
soap and water to aid assembly
Cui*
f y .
imi'
W
BEFORE YOU OPERATE AND ENJOY YOUR NEW
MINI TILLER/CULTIVATOR, WE WISH TO ASSURE THAT
YOU RECEIVE THE BEST PERFORMANCE AND SATISFAC^
riON FROM THIS QUALITY PRODUCT
PLEASE REVIEW THE FOLLOWING CHECKLIST.
/ All assembly instrudions have been completed
/ Ha remaining loose parts in carton.
/ All fasteners have been properly installed and tightened
WHILE LEARNING HOW TO USE YOUR MINI TILLER/CUL Ti-
VATOR. PAY EXTRA ATTENTION TO THE FOLLOWING
IMPORTANT ITEMS:
// Fuel tank is filled with correct gasoiine and oil mixture
// Become familiar with all controis-their location and
function, operate controls before starting engine,
