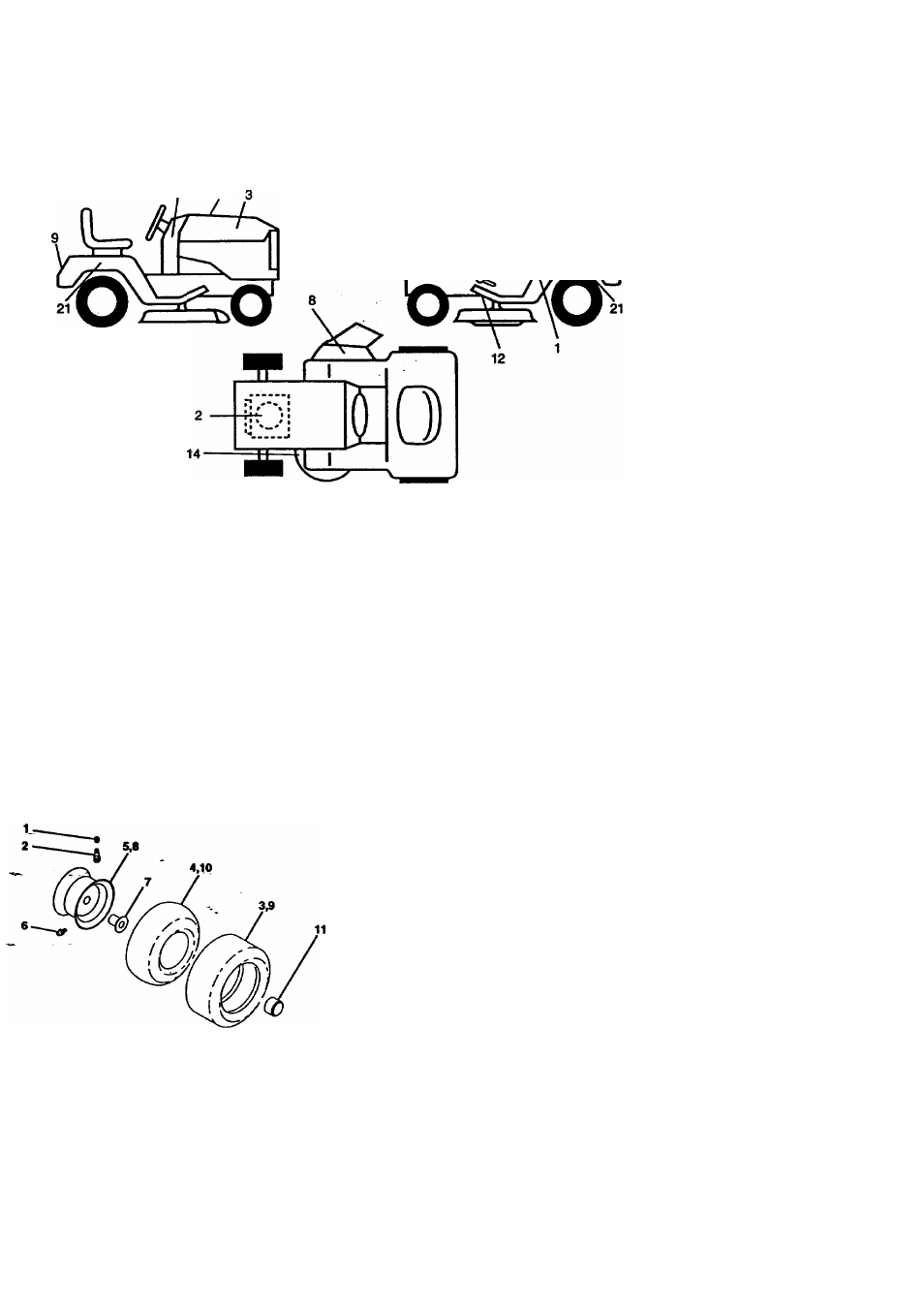

TRACTOR - - MODEL NUMBER 917.270711
DECALS
13
6
13
10
KEY
PART
KEY
PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
156368
Decal, Open Instr.
13
163254
Decal, Dash Panel B&S
2
165406
'"Decal, Hp Engine
14
160396
Decal, V-BeR Schematic
3
163200
Decal, Hood, R.H.
20
149516
Decal BaReiy Dngr/Psn Eng
4
163202
Decal, Hood, LH.
21
163207
Decal, Fender Sd. Wht
6
133644
Decal, Customer Maintenance
- -
138311
Decal, UR Hande
8
163203
Decal, Deck Mower EZ
- -
154515
Pad Footrest LH STLT
9
163204
Decal, Fender, CraRsman
- -
154516
Pad Footrest RH STLT
10
156439
Decal, Fender Danger
- -
165434
Owner's ManuaL EngHsh
12
146046
Decal, V-BeR Drive Schematic
165435
Owner's Manual, Spanish
WHEELS & TIRES
KEY
PART
NO. NO.
1
2
3
4
5
6
8
9
10
11
59192
65139
106222Х
59904
106732X427
278Н
9040Н
106108X427
122082Х
7152J
104757Х
144334
DESCRIPTION
Valve Cap, Tire
Stem, Valve
■nre,Fionl
-Tube, Front Hre
(Not Provided, Service Rem
Only)
Rim, Front
Fitttig, Grease (Front Wheel
Only)
•
Bearing, Flange (Front Wheel
Only)
Rim, Rear
Tire, Rear
Tube, Rear Tire
(Not Provided, Senrice Rem
Only)
Cap, Axle
Sealant, Tire 10 oz.
NOTE: АП component dimensions given in U.S. inches
1 inch = 25.4 mm
