TRACTOR - - MODEL NUMBER 917^70711

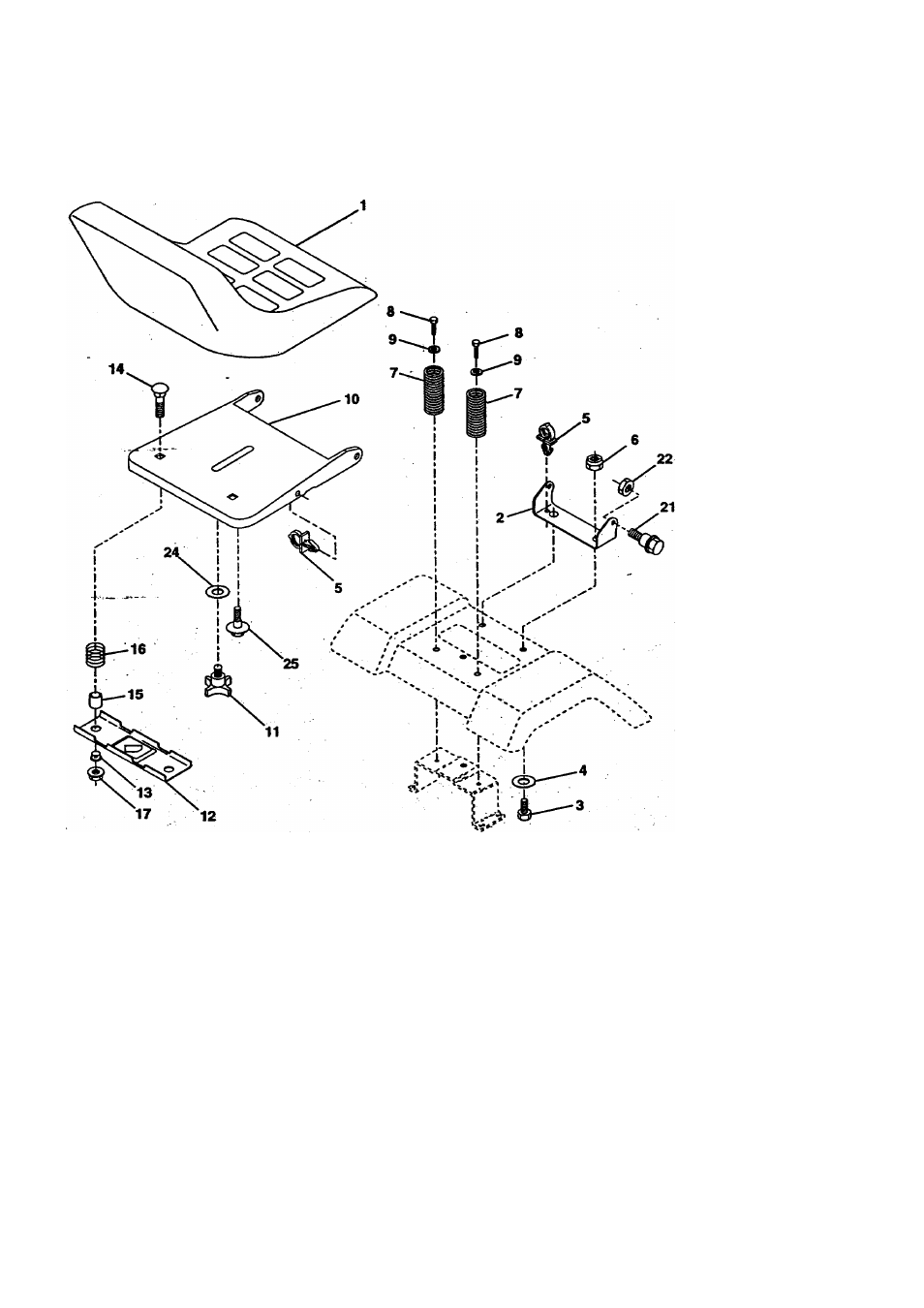

SEAT ASSEMBLY
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
140123
Seat 3350 BIk/bIk Craftsman
13
121248X
Bushing Snap Bik Nyi 50 Id
2
140551
Bracket Pnt Pivot Seat (bik)
14.
72050412
Bolt Rdhd Sht Nk 1/4-20x1-1/2
3
STD523710
BoKRnHex3/8-16uncX1
15
134300
Spacer Split 28 X 96 Zinc
4
19131610
.washer 13/32 X 3/4 X10 Ga
16
121250X
Spring Cptsn 1 27 Bik Pnt
5
145006
Clip Push In Hinged
17
123976X
Nut Lock 1/4 Lge Fig Gr5Zinc
6
STD541437
Nut Hex Lock w/lns 3/8-16 Unc
21
153236
Bolt Shoulder 5/16-18 Uno-2A
7
124181X
Spring Seat Cptsn 2 250 BtkZi
22
STD541431
NutHexLockw/lrrs5/16-18
8
17490616
Screw Thdrol 3/8-16 X1 Ty-tt
24
19171912
Vibsher 17/32 X1-3/16 X12 Ga.
9
19131614
Washer 13/32X1 X14Ga
25
127018X
Bolt Shoulder 5/16-18X62
10
11
155925
120068X
Pan Pni Seat
Knob ^t 1/2-13 Unc Bik
NOTE:
An component cBmenskMis given biU.S.itwh-
12
121246X
Bracket Pnt Mounting Switch
esi inch = 25.4 mm
