KNOW YOUR TRACTOR
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR
TRACTOR

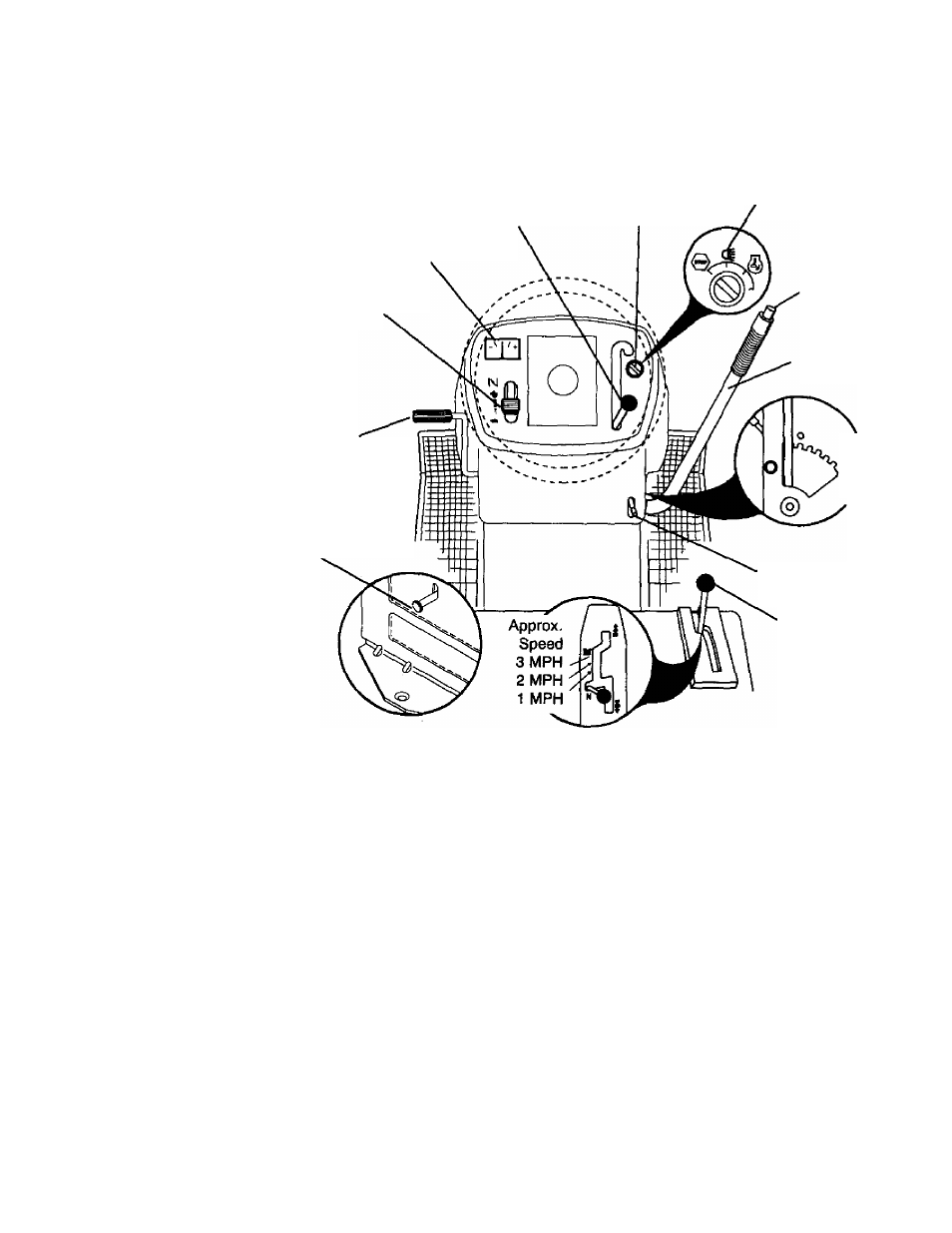

Compare the illustrations with your tractor to familiarize yourself with the locations of
various controls and adjustments. Save this manual for future reference.
Attachment
Clutch Lever Ignition
Switch
Light Switch
Position
Ammeter
Throttle/Choke
Control
Freewheel Control
Clutch/Brake
Control
Lift Lever
Plunger
Attachment
Lift Lever
o Height
Adjustment
Indicator
Parking Brake
Motion Control
Lever
Our tractors conform to the safety standards of the American
National Standards Institute.
ATTACHMENT CLUTCH LEVER:
Used to
engage the mower blades, or other at­
tachments mounted to your tractor.
LIGHT SWITCH:
Turns the headlights on
and off.
THROTTLE/CHOKE CONTROL:
Used to
control engine speed.
CLUTCH/BRAKE PEDAL:
Used for
declutching and braking the tractor and
starting the engine.
FREEWHEEL CONTROL:
Disengages
transmission for pushing or slowly towing
the tractor with the engine off.
MOTION CONTROL LEVER:
Selects the
speed and direction of the tractor.
ATTACHMENT LIFT LEVER:
Used to
raise and lower the mower deck or other
attachments mounted to your tractor.
LIFT LEVER PLUNGER:
Used to release
attachment lift lever when changing its
position.
IGNITION SWITCH:
Used for starting and
stopping the engine.
AMMETER:
Indicates battery charging (+)
or discharging (-).
PARKING BRAKE:
Locks clutch/brake
into the brake position.
