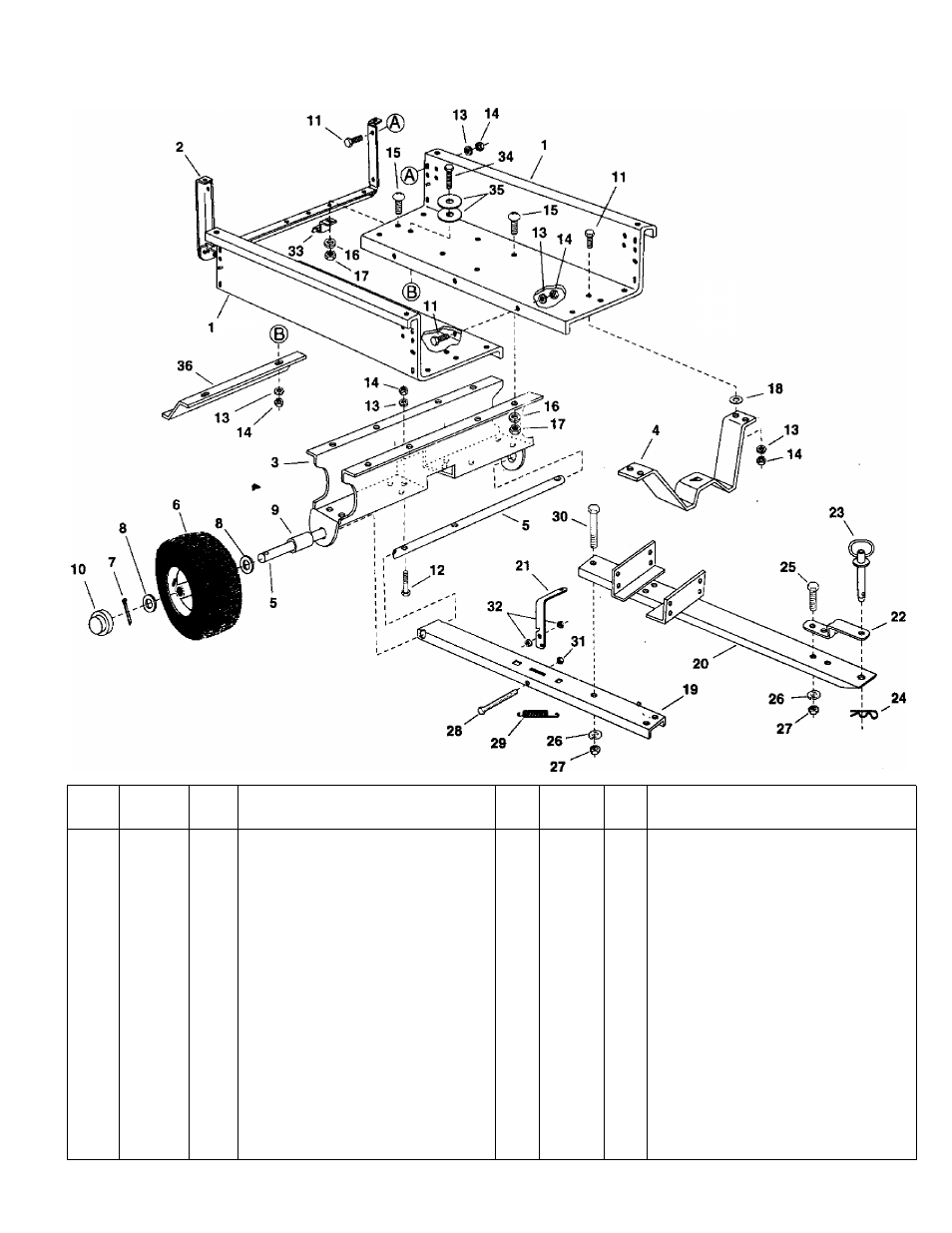

REPAIR PARTS FOR MODEL 486.24516 CART BODY
REF.
NO.
PART
NO.
QTY.
DESCRIPTION
REF,
NO.
PART
NO.
QTY
DESCRIPTION
1
23985
2
Cart Body
19
63917
1
Tongue Weldment Ass'y. (Rear)
2
62458
1
Tailgate Reinforcement Bracket
20
63155
1
Tongue Weldment Ass'y. (Front)
3
23507
1
Wheel Support
21
24614
1
Latch Lock Lever
4
24497
1
Latch Stand Bracket
22
23475
1
Hitch Bracket
5
23488
1
Axle, Wheel r Dia.
23
43884
1
Hitch Pin
6
46272
2
Wheel w/Tire, 15 x 6.00
24
43343
1
Pin, Hair Cotter 1/8"
7
43093
2
Cotter Pin, 1/8" Dia. x 1-1/2"
25
43087
2
Hex Bolt, 3/8-16x1-1/4"
8
43601
4
Washer, Fiat 1"
26
43003
5
Lockwasher, 3/8"
9
44678
2
Spacer Tube. 1-1/4" x 2" Lg.
27
43082
5
Hex Lock Nut, 3/8-16 Thread
10
43014
2
Hub Cap
28
47407
1
Hex Bolt, 5/16-18x3-3/4"
11
43866
9
Hex Bolt, 1/4-20 x 5/8"
29
47408
1
Spring, Extension
12
1509-69
2
Hex Bolt, 1/4-20 x 1-3/4"
30
43574
3
Hex Bolt, 3/8-16
X
3"
13
43177
13
Lockwasher, 1/4"
31
43064
1
Hex Lock Nut, 5/16-18
14
43178
13
Hex Nut, 1/4-20 Thread
32
46980
2
Hex Nut, 5/16-18 (SEMS)
15
43814
14
Truss Hd. Bolt, 5/16-18
X
3/4“
33
23838
2
Door Support
16
43086
14
Lockwasher, 5/16"
34
43661
2
Hex Bolt, 1/4-20x1"
17
43083
14
Hex Nut. 5/16-18 Thread
35
43572
4
Flat Washer, 1-1/2" x 11/32"
18
43088
2
Washer, Flat 1/4"
36
24604
1
Skid Plate
