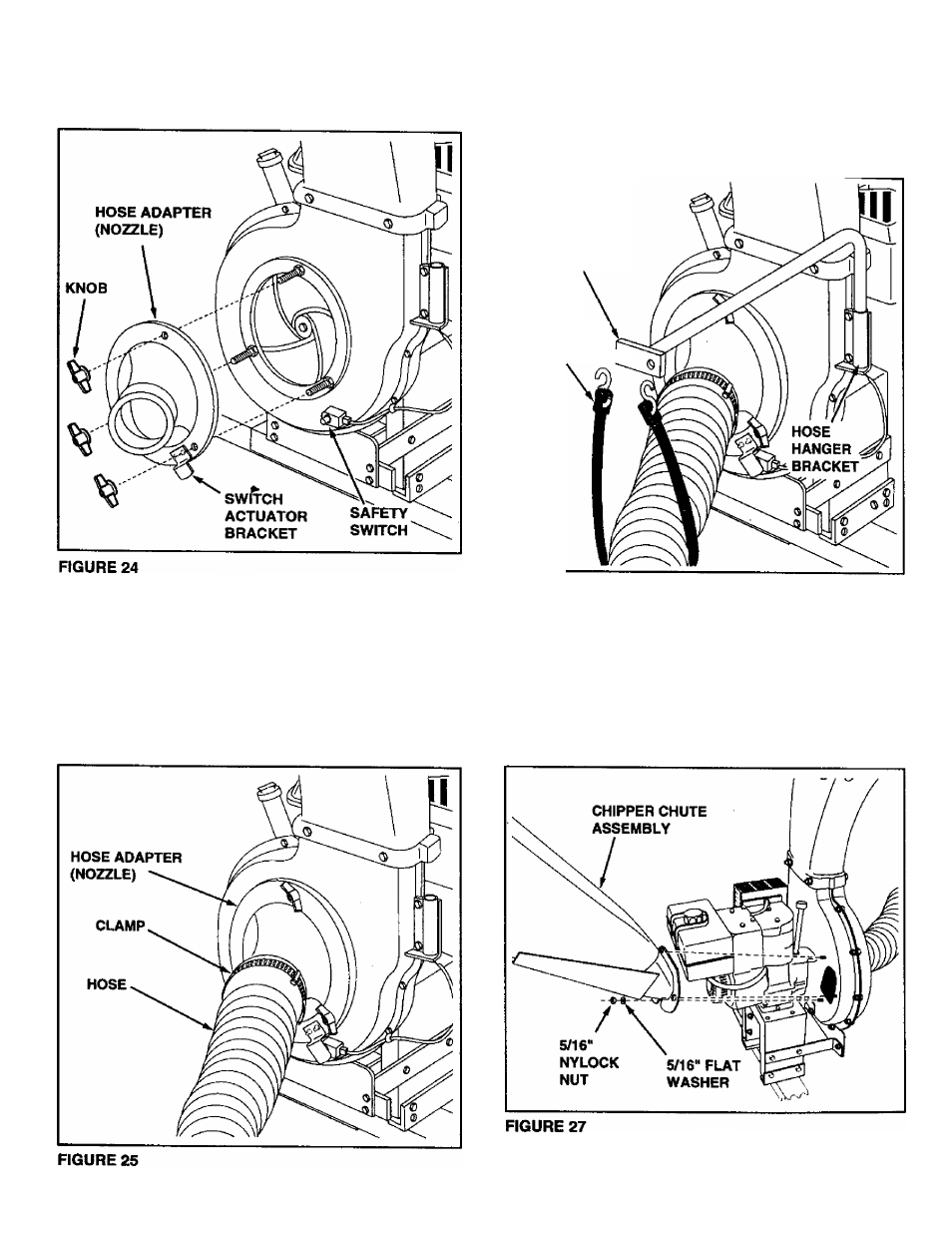

• Assemble the hose adapter (nozzle) to the front of

the impeller housing, securing it with the three knobs.

Make sure that the switch actuator bracket depresses

the switch on the housing. See figure 24.

Place a hose clamp onto the end of the hose. Push
the hose onto the hose adapter (nozzle). Tighten the
hose clamp onto the hose and hose adapter.

Do not

collapse the hose adapter when tightening the
clamp.

See figure 25.

The remaining hose clamp will be used later to fasten

the hose to the deck adapter.

Place the hose hanger rod assembly down into the
hose hanger bracket on the impeller housing assem
bly. See figure 26.
Loop the rubber tie strap under the hose. Fasten the
hooks to the hose hanger rod assembly. See figure
26.

HOSE HANGER
ROD ASSEMBLY

25‘TARP
STRAP

I©

FIGURE 26

HINT:

Tip the cart bed back for easier access in the

next paragraph.

•

Attach the chipper chute assembly to the weld bolts
on the back side of the impeller housing using three

5/16"

flat washers and

5/16"

Nylock nuts.

Tighten.

See figure 27. -

•

Insert the tamper plug into the end of the chipper

chute assembly.
