Craftsman 247.388250 - Manual (Page 24)

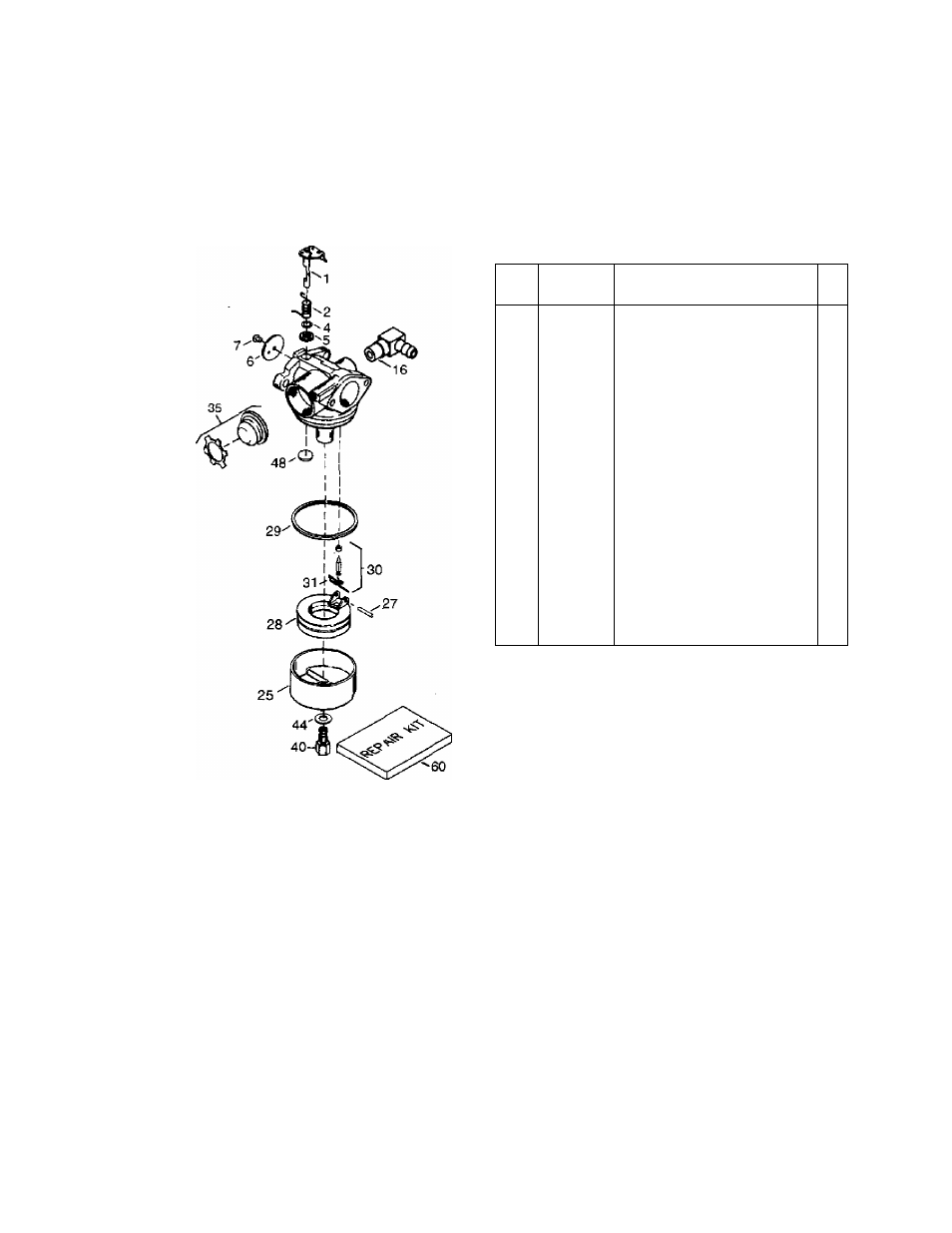

Carburetor No. 640173
CRAFTSMAN ENGINE NO. 143.994002 FOR
CRAFTSMAN 4.0 H.P. LAWN MOWER MODEL 247.388250
Key
No.
Part No. Description Qty.
1 631615 Throttle Shaft & Lever Assembly
2 631767 Throttle Return Spring 1
4 631184 Dust Seai Washer (Throttle) 1
5 631183 Dust Seal (Throttle) 1
6 631616 Throttle Shutter 1
7 650506 Shutter Screw
16 631807 Fuel Fitting 1
25 631700 Float Bowl 1
27 631024 Float Shaft 1
28 632019 Float 1
29 631028 Float Bowl "0" Ring 1
30 631021 Inlet Needle, Seat & Clip (Incl.
31) 1
31 631022 Spring Clip 1
35 632047A Primer Bulb/Retaining Ring 1
40 631937A High Speed Bowl Nut 1
44 631334 Bowl Nut Washer 1
48 631027 Welch Plug, Atmospheric Vent 1
60 632760 Repair Kit 1
