I
OPERATIO
J

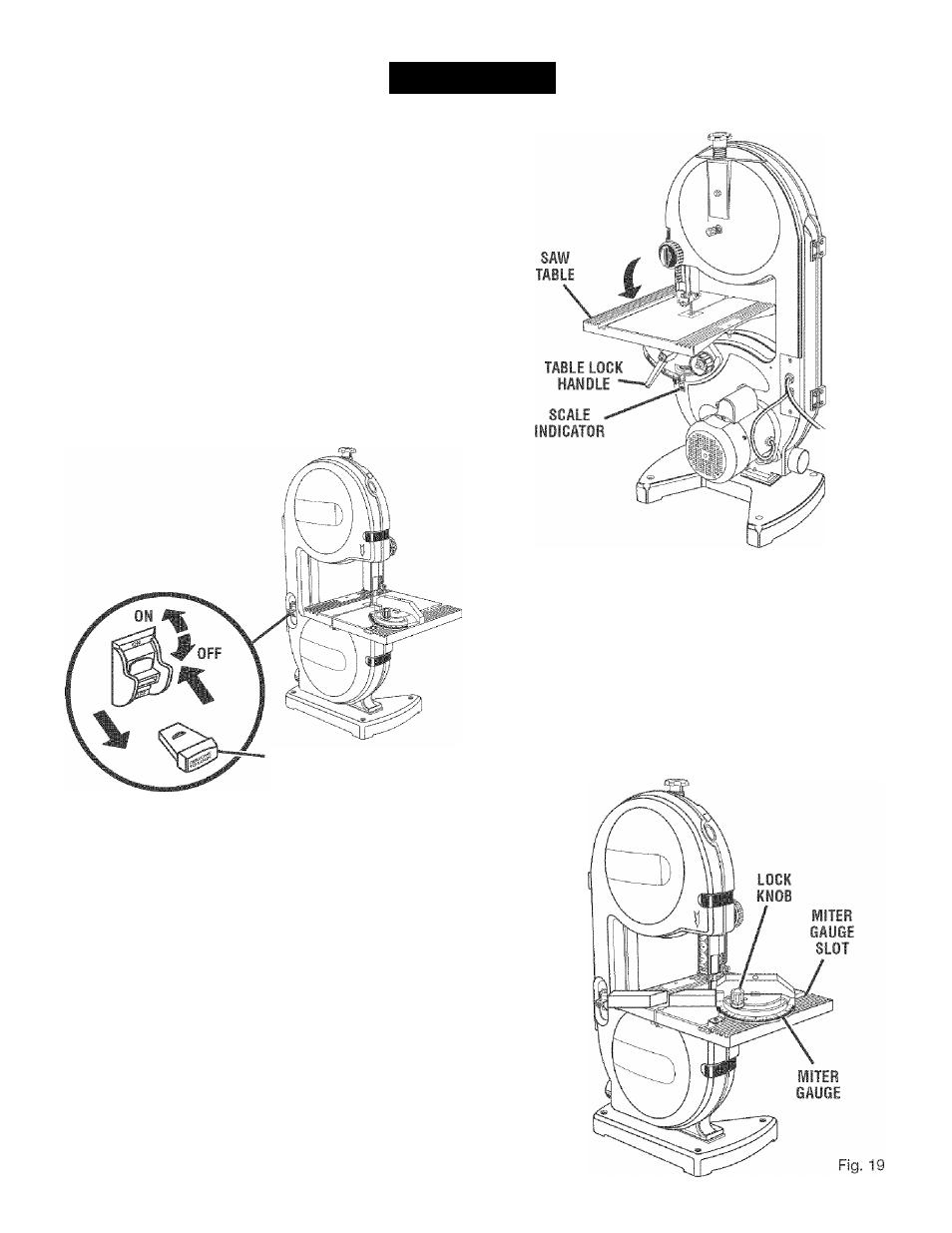

BEFORE LEAVING THE SAW
See Figure 17.
■ Wait until the saw has come to a full and complete
stop.
■ Place the switch in the OFF position, remove the switch
key from the switch assembly. Store key in a safe
place.
■ Unplug the saw from the power source.
■ Make workshop childproof.
■ Lock the shop.
LOCKING THE SWITCH
See Figure 17.
■ Wait untif the saw has come to a full and complete
stop.
SWITCH
KEY
Fig. 17
■ Place the switch in the OFF position, remove the switch
key from the switch assembly. Store key in a safe
place.
TILTING THE TABLE
See Figure 18.
■ Loosen the table lock handle slightly.
■ Turn the angle adjustment knob, tilting the saw table
toward the front of the saw housing until it reaches the
desired angle.
■ Using the scale indicator, check angle markings.
■ Retighten the table lock handle to hold saw table securely
in place.
Fig. 18
USING THE MITER GAUGE
See Figure 19.
The miter gauge can be turned 45° to the right or left.
■ Loosen the lock knob on the miter gauge.
■ With the miter gauge in the miter gauge slot, rotate the
gauge until the desired angle is reached on the index
scale.
■ Retighten the lock knob.
20
