TRACTOR - - MODEL NUMBER 917.275900

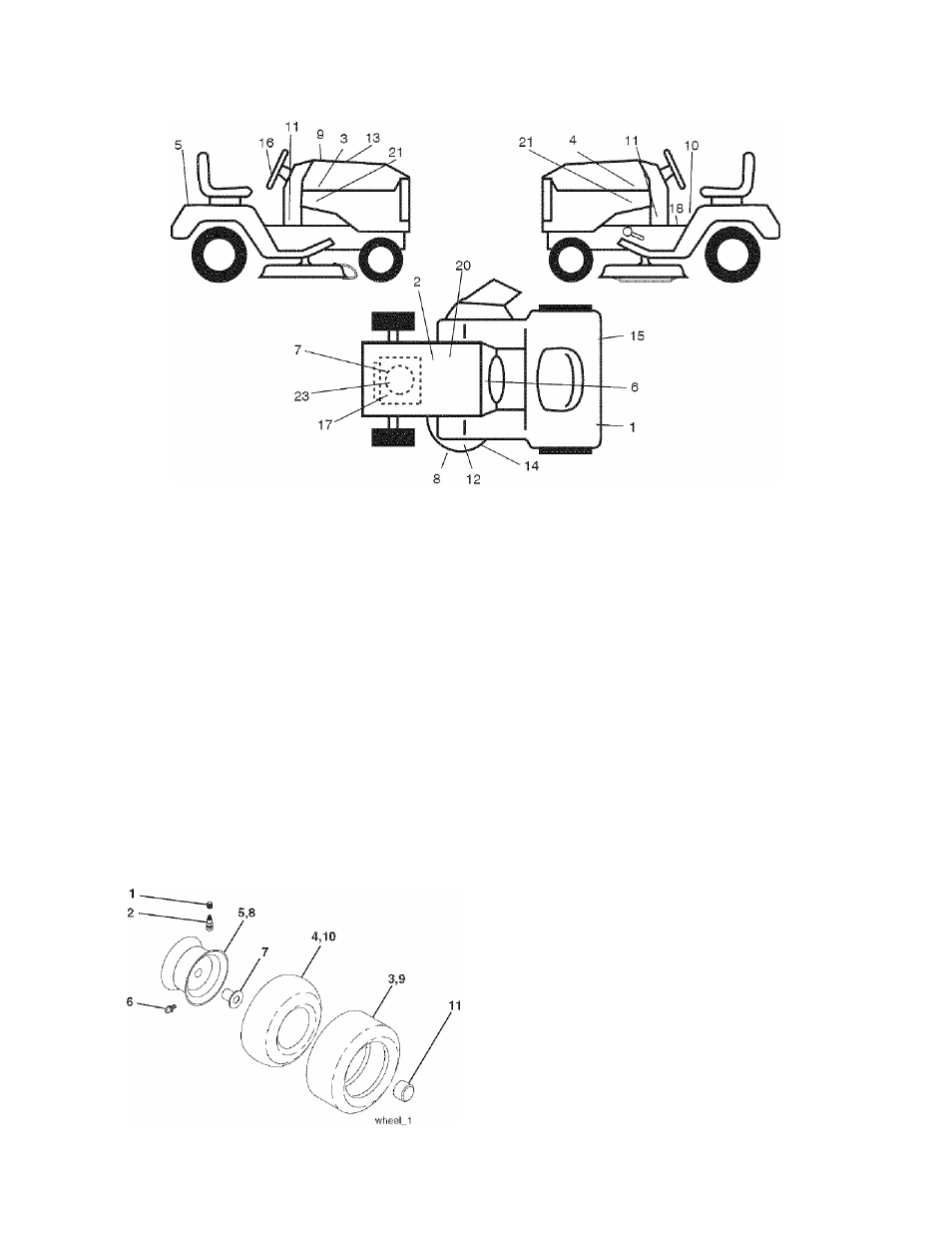

DECALS
KEY
NO. PART
NO.
DESCRIPTION
KEY
NO. PART
NO.
DESCRIPTION
1 187407 Decal Reflector LH 14 175291 Decal V-Belt Schematic
2 138047 Decal Battery Diehard Sears 15 187408 Decal Reflector RH
3 194023 Decal Hood RH 16 164065 Decal Steering Wheel
4 194024 Decal Hood LH 17 177914 Decal Engine
5 194027 Decal Fender Craftsman 18 193307 Decal Fender Opr.
6 193645 Decal Dash 20 149516 Decal Battery
7 177918 Decal Engine 21 194025 Decal Hood Side Panel
8 178455 Decal Deck Caution 23 194270 Decal Engine
9 169239 Decal Replacement Hood
- -
184310X428 Pad Footrest LH
10 156439 Decal Fender Danger
- -
184311X428 Pad Footrest RH
11 169189 Decal Panel Dash
- -
166960 Decal Bypass
12 178482 Decal Mower Heavy-Duty
- -
195943 Manual Owner's English
13 133644 Decal Customer Resp. - - 195944 Manual Owner's Spanish
WHEELS & TIRES KEY PART
NO. NO.
1
2
3
4
5
10
11
59192
65139
106222X
59904
106732X417
278H
9040H
106108X417
138468
7152J
104757X428
144334
DESCRIPTION
Cap Valve Tire
Stem Valve
Tire F Ts 15
X
6.0 - 6 Service
Tube Front (Service Item Only)
Rim Asm 6" front Service
Fitting Grease (Front Wheel Only)
Bearing Flange (Front Wheel
Only)
Rim Asm S" rear Service
Tire R Ts 20 X 8-8 C Service
Tube Rear (Service Item Only)
Cap Axle BIk 1.50 x 1.00
Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S.
1 inch = 25.4 mm
inches
