Craftsman 917.275900 - Manual (Page 43)

TRACTOR - - MODEL NUMBER 917.275900

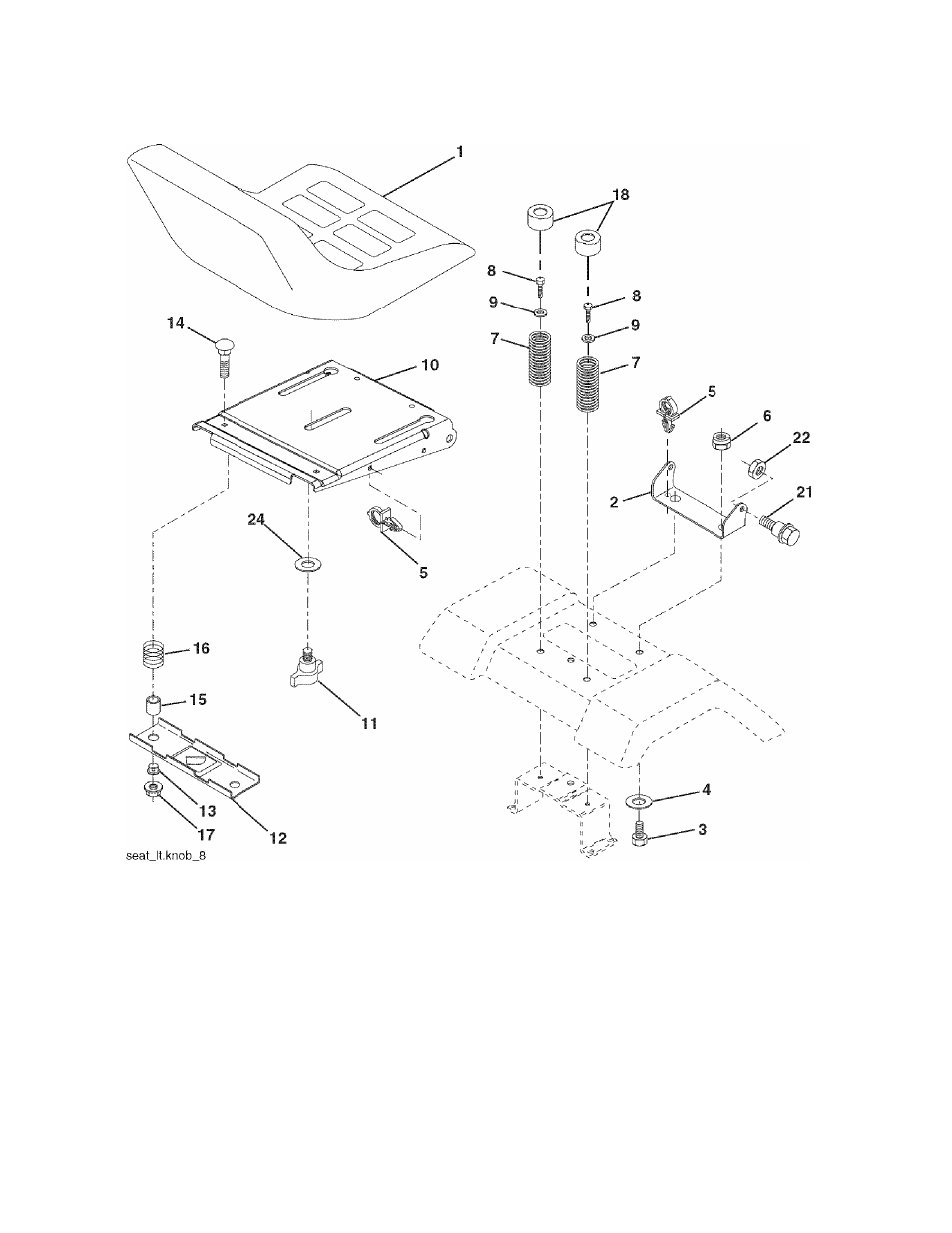

SEAT ASSEMBLY
KEY PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
12
180598
180166
STD523710
19131610
145006
STD541437
124181X
17000616
19131614
180186
166369
174648
DESCRIPTION
Seat
Bracket Pivot Seat
Bolt Fin Hex 3/8-16 unc x 1
Washer 13/32 x 1 x 10 Ga
Clip Push-in
Nut Hex w/lns 3/8-16 unc
Spring Seat Cprsn
Screw 3/8-16
X 1-1/2
Washer 13/32 x 1 x 14 Ga.
Pan Seat
Knob Seat Adj Wingnut
Bracket Mounting Switch
KEY PART
NO. NO.
13 121248X
14 72050412
15 121249X
16 123740X
17 123976X
18 124238X
21 171852
22 STD541431
24 19171912
DESCRIPTION
Bushing Snap BIk Nyl 50 Id
Bolt Rdhd Sqnk 1 /4-20 x 1-1/2
Spacer Split
Spring Cprsn
Nut Lock 1 /4 Lge Fig Gr. 5 Zinc
Cap Spring Seat
Bolt Shoulder 5/16-18 unc
Nut Hex Lock W/lns 5/16-18
Washer 17/32 x 1 -3/16 x 12 Ga.
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
43
