BRIGGS AND STRATTON 5 H.P. ENGINE MODEL NO. 133412-0059-01

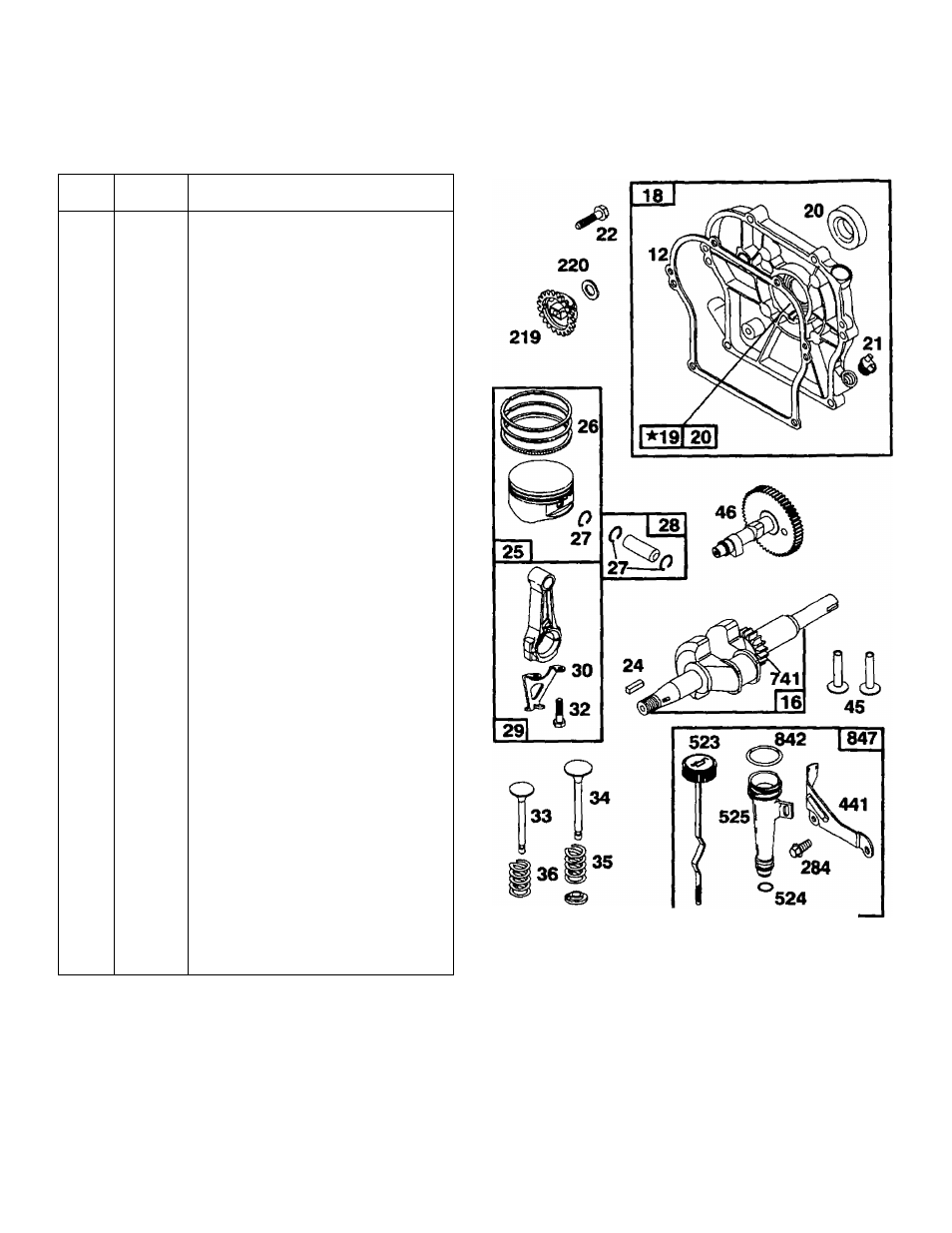

Repair Parts
REF.
NO.
PART
NO.
DESCRIPTION
12 ‘270080 Gasket-Crankcase (.015" Thick,
Std.)
•270125 Gasket-Crkcse. (.005" Thick)
*270126 Gasket-Crkcse. (.009" Thick)
16 397103 Crankshaft
Note; To Replace Crankshaft Gear
Key.
Order Part No. 94388.
18 494044 Cover Ass'y--Crankcase
19 495660 Bushing-Crankcase Cover
20 294606 Seal-Oil
21 66768 Plug-Oil Filter
22 94682 Screw-Crankcase Cover Mounting
Sem
24 222698 Key-Flywheel
25 393819 Piston Ass’y- (Std.)
393820 Piston Ass’y. (.010" O.S.)
393821 Piston Ass'y. (.020" O.S.)
393822 Piston Ass’y. (.030" O.S.)
26 399067 Ring Set-Piston (Std.)
399014 Ring Set-Piston (.010" O.S.)
399015 Ring Set-Piston (.020" O.S.)
399016 Ring Set-Piston (.030" O.S.)
27 26026 Lock-Piston Pin
28 298909 Pin Ass’y.-Piston (Std.)
298908 Pin Ass’y.-Piston (.005" O.S.)
29 299430 Rod Ass’y.-Connecting
390459 Rod Ass’y.-Connecting
(.020" Undersize Crankpin Bore)
30 221890 Dipper-Conn. Rod
32 94745 Screw-Conn. Rod
33 211119 Valve-Exhaust
34 261044 Valve-Intake
35 260552 Spring-Intake Valve
36 26478 Spring-Exhaust Valve
40 93312 Retainer-Spring
45 260642 Tappet-Valve
46 212733 Gear-Cam
219 494845 Gear-Governor
220 221551 Washer-Thrust
284 94620 Screw-Hex. Hd.
441 224240 Bracket-Oil Fill
523 494416 Dipstick and Cap Ass’y.
524 *271485 Seal-Oil Fill
525 280578 Tube-Oil Fill
741 262992 Gear-Timing
842 *270920 Seal-Oil Fill Cap
847 494417 Tube Ass'y.-High Oil Fill
40 ^ A REQUIRES SPECIAL TOOLS
TO INSTALL. SEE REPAIR
INSTRUCTION MANUAL
•Included in Gasket Set—Part No. 495661.
Assemblies include all parts shown in frames.
