Tools Required for Assembly
Adjustable wrench
'en wrench
Remove Pressure Washer from Carton
• Open carton fronn the top. Locate and remove from
box the handle, gun, wand, videotape, and oil.
• Cut carton along dotted lines.
• Remove all carton inserts.
• Roll unit through opening in carton.
NOTE: The hose is located at the bottom of the box.
Preparing the Pressure Washer for First Use
Note: Included with your pressure washer is a video
cassette tape on how to prepare your unit for
operation. It is recommended you view this tape
before performing the next steps.

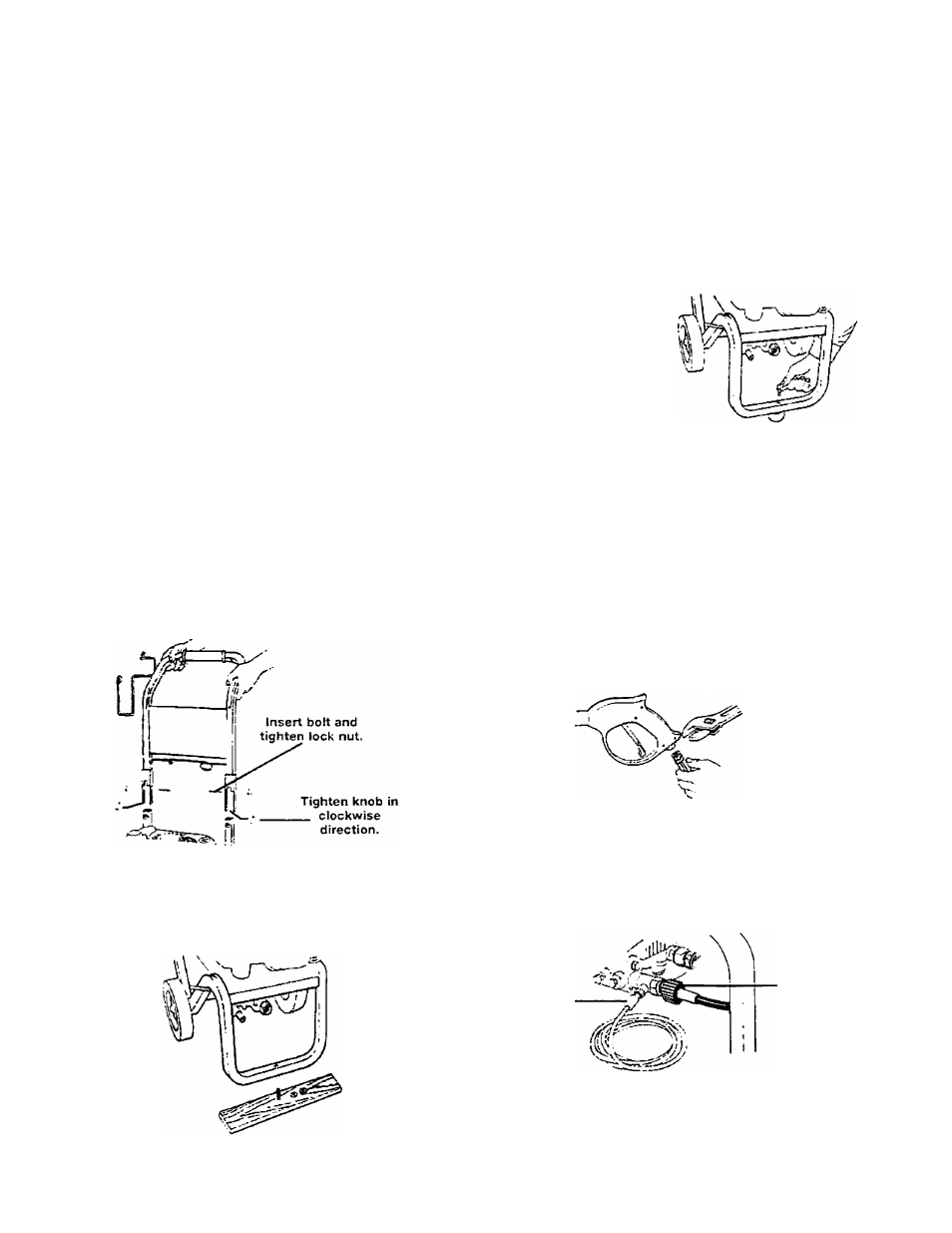

1. Insert handle onto frame.
« Insert knobs into the threaded slot in front of the
frame handle and tighten by turning in a clock­
wise direction.
• Slide bolts into the slot in the side of the frame
handle and tighten the nuts by turning in a clock­
wise direction.
2. Using an adjustable wrench, remove nut from
bolt that attaches board to frame. Remove wood
plank from the frame of the unit. Discard bolt and
board.
3. Mount the rubber isolator to the frame. To mount
isolator place threaded end of bolt through the
washer.
• Next with washer on bolt place threaded end of
bolt through the larger hole in bottom of the
rubber isolator.
• Place threaded portion of bolt through the same
hole location the wood plank was mounted to
on the pressure washer.
• Next place the tee nut over the threaded portion
of the bolt and use the Allen wrench provided to
tighten isolator to the frame.
TEE NUT
PRESSURE
WASHER
FRAME
-ISOLATOR
BOLT--------S \
A WASHER
4. Connect wand extension to gun. To tighten, turn
knob in clockwise direction. Hand tighten.
------
5. Remove tie wrap off of high pressure hose.
Unwind high pressure hose and attach the
threaded end to the gun. Tighten with adjustable
wrench.
6. Connect high pressure hose to outlet on
pressure washer and hand tighten firmly.
Connect chemical pickup hose to hose barb
on pump.
CHEMICAL
HOSE
HIGH
PRESSURE
HOSE
NOTE: Always keep hose away from engine muffler.
