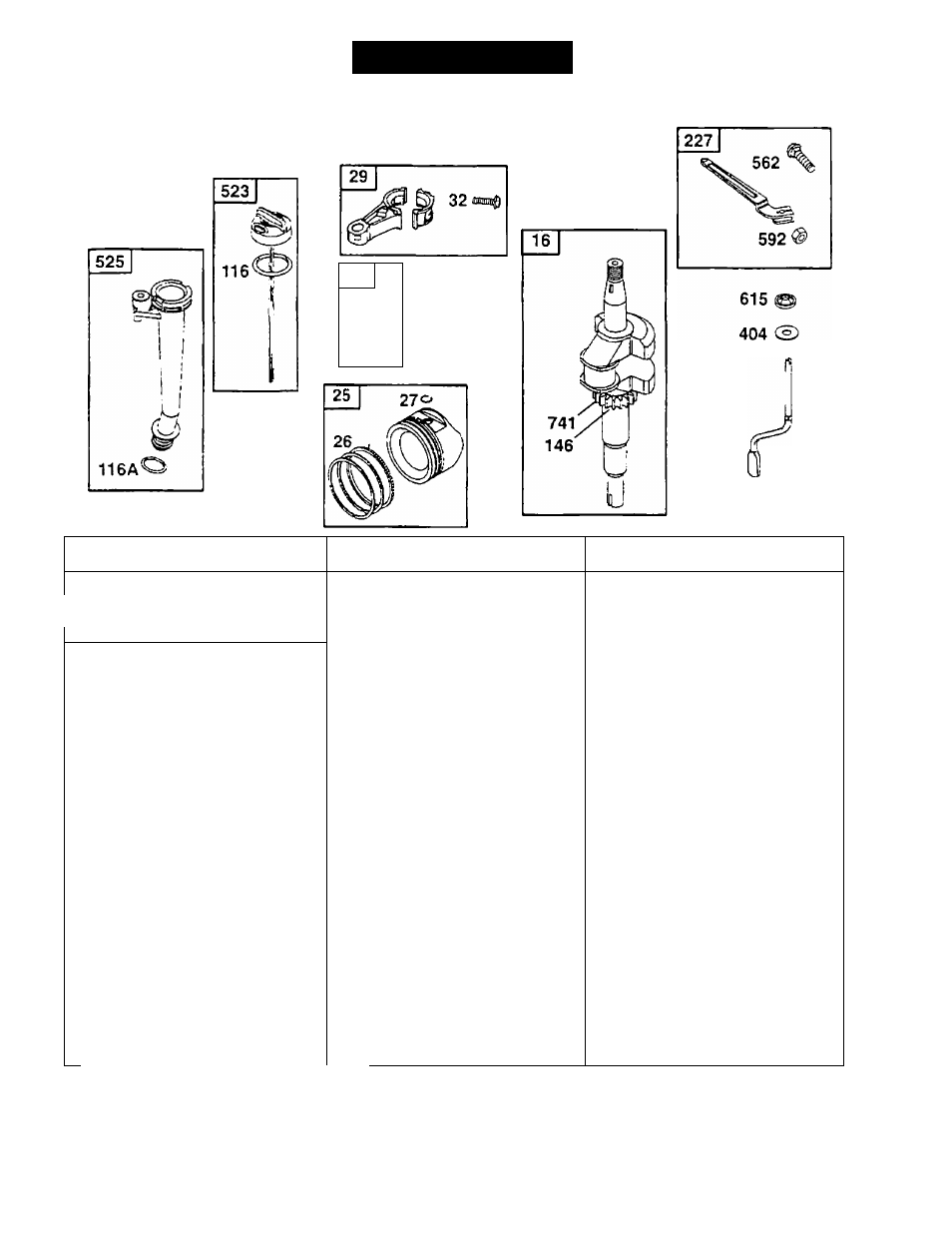

ENGINE PARTS
CRAFTSMAN 2400 PSI HIGH PRESSUIRE WASHER 919.679240
BRIGGS ENGINE MODEL #120602-01350-E2
284
847
24
28
27
o
L
616
REF. PART
NO. NO. DESCRIPTION
REF. PART
NO. NO. DESCRIPTION
REF. PART
NO. NO. DESCRIPTION
16 693291 Crankshaft
26 499631 Ring Set
116A *280966 Seal-O-Ring
24 222696 Key-Flywheel
(Standard)
146 94388 Key-Timing
25 499627 Piston Assembly
------------Note----------
227 498772 Lever-Governor
(Standard)
692785 Ring Set
284 94511 Screw-Shoulder
------------ Note----------
(.010" O.S.)
404 67072 Washer
692788 Piston Assy.
692786 Ring Set
523 499621 Dipstick
(.010" O.S.)
(.020" O.S.)
525 495265 Tube-Oil Fill
692789 Piston Assy.
(.020" O.S.)
692787 Ring Set
(.030" O.S.)
562 94852 Bolt-Governor Lever
692790 Piston Assy.
27 263190 Lock-Piston Pin
592 231082 Nut-Hex.
(.030” O.S.)
28 499423 Pin-Piston
615 94474 Retainer-Governor
(Standard)
29 499424 Rod-Connecting
616 263175 Crank-Governor
32 94699 Screw-Connecting
741 262598 Gear-Timing
Rod
847 498715 Dipstick/Tube
116 *280393 Seal-O-Ring
Assembly
Included in Gasket Set-Part No. 692702.
Included in Valve Overhaul Kit-Part No. 692705.
• Included in Carburetor Kit-Part No. 692703
♦ Included in Carburetor Gasket Set-Part No. 692704.
Assemblies include all parts shown in frames.
