Craftsman 917.274040 - Manual (Page 45)

TRACTOR - - MODEL NUMBER 917.274040

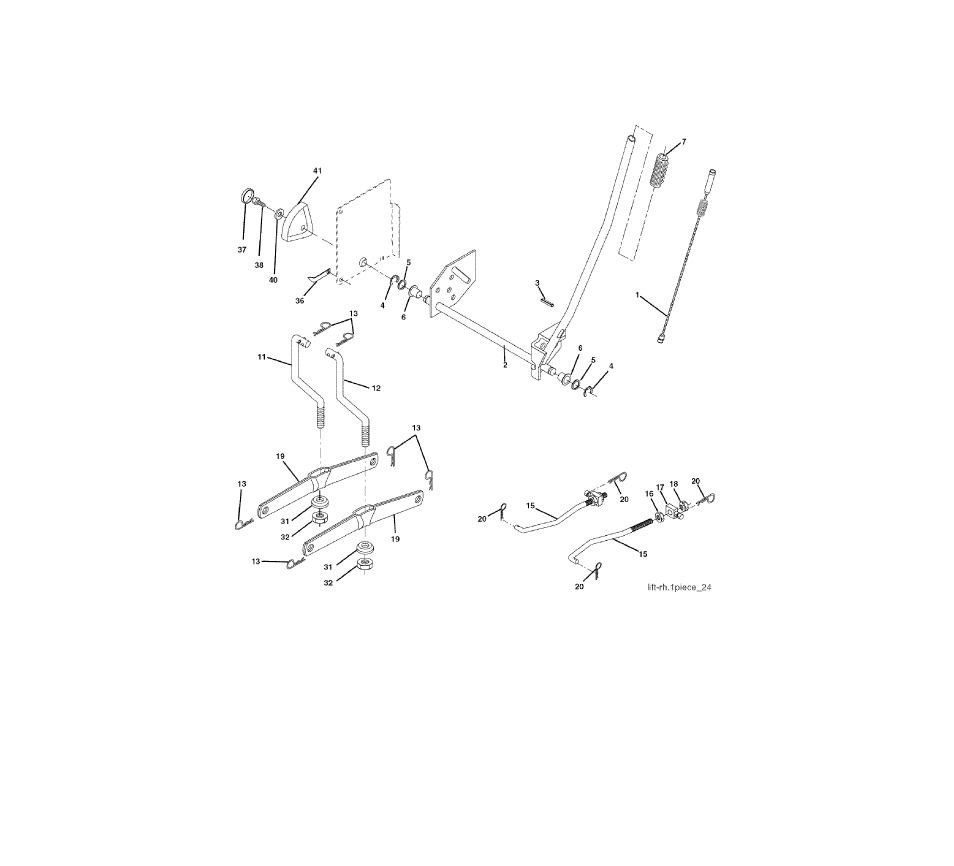

LIFT ASSEMBLY
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 179504 Plunger Assembly 18 73800800 Nut Lock w/Wsh 1/2-13 unc
2 159476 Shaft Assembly, Lift 19 139868 Arm Asm. Suspension Mower
3 188822 Pin, Groove 20 163552 Retainer Spring
4 12000002 E-Ring 31 169865 Bearing Pivot Lift
5 19211621 Washer 21/32 x 1 x 21 Ga. 32 73540600 Nut Crownlock 3/8-24
6 120183X Bearing, Nylon 36 155097 Pointer Height Indicator
7 175830 Grip, Handle, Fluted 37 123935X Plug Hole
11 139865 Link, Lift, L.H. 38 17060516 Screw 5/16-18x1
12 139866 Link. Lift, R.H. 40 19112410 Washer 11/32 x 1-1/2 x 10 Ga.
13 4939M Retainer Spring 41 155098 Indicator Height Stit
15 173288 Link Front Sus.
16 73350800 Nut Hex Jam 1/2-13 unc NOTE : All component dimensions given in U.S. inches
17 175689 Trunnion Front Susp. 1 inch = 25.4 mm
