Craftsman 917.274040 - Manual (Page 42)

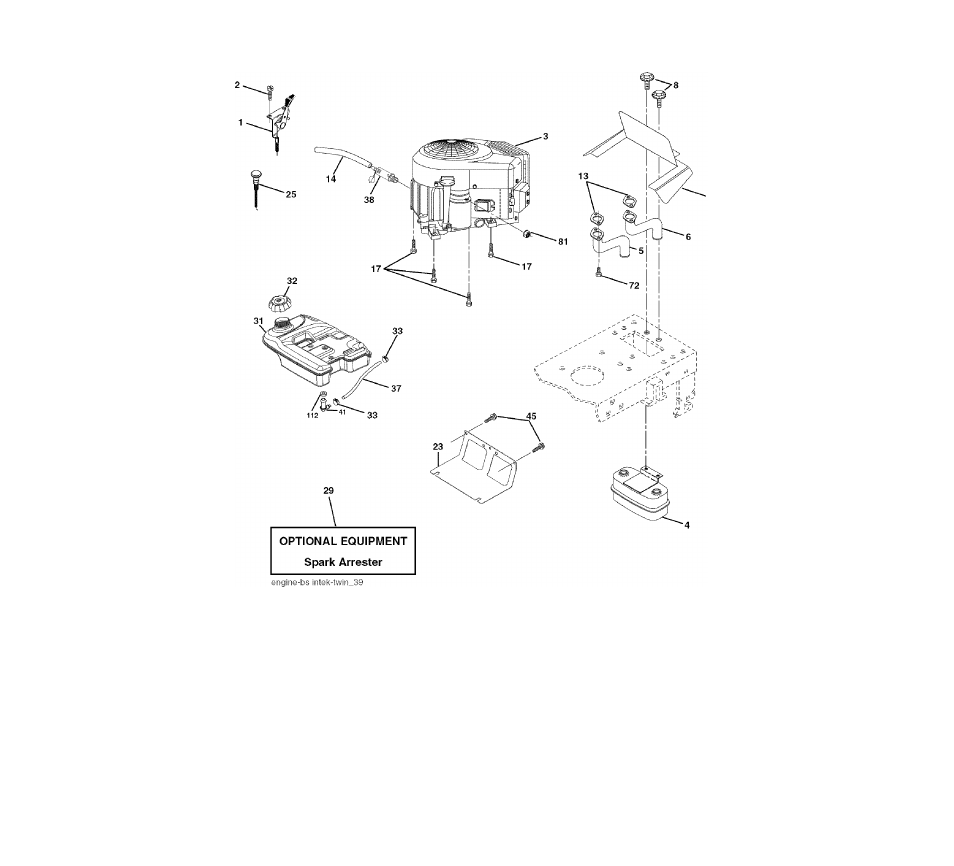

ENGINE
TRACTOR - - MODEL NUMBER 917.274040
■10
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 175437X428 Control Throttle 29 137180 Kit Spark Arrestor {Flat Scrn)
2 191611 Screw 10x3/4 Single Lead-Hex 31 179022 Tank Fuel 4.0 Rear
3 Engine, Briggs Model 407577- 32 179124X428 Cap Asm Fuel
0284-El (See Breakdown) 33 123487X Clamp Hose Black
4 149723 Muffler Asm Twin Lo-Tone 37 8543R Line Fuel
5 160589 Exhaust Tube RH 38 181654 Plug Drain Oil Easy
6 159955 Exhaust Tube LH 41 139277 Stem Tank Fuel
8 181877 Bolt 5/16-18 unc X 3/4 w/sems 45 17000612 Screw Hexwsh Thdr 3/8-16 x 3/4
10 162797 Shield Browing 72 183906 Screw 5/16-18x1
13 165391 Muffler Gasket 81 73510400 Nut Keps Hex 1/4-20 unc
14 148456 Tube Drain oil 112 3645J Bushing
17 17060624 Screw 3/8-16 X 1-1/2
23 169837 Shield Heat NOTE: All component dimensions given in U.S.
25 187767X505 Control Choke inches 1 inch = 25.4 mm
42
