Craftsman 917.274040 - Manual (Page 44)

TRACTOR - - MODEL NUMBER 917.274040

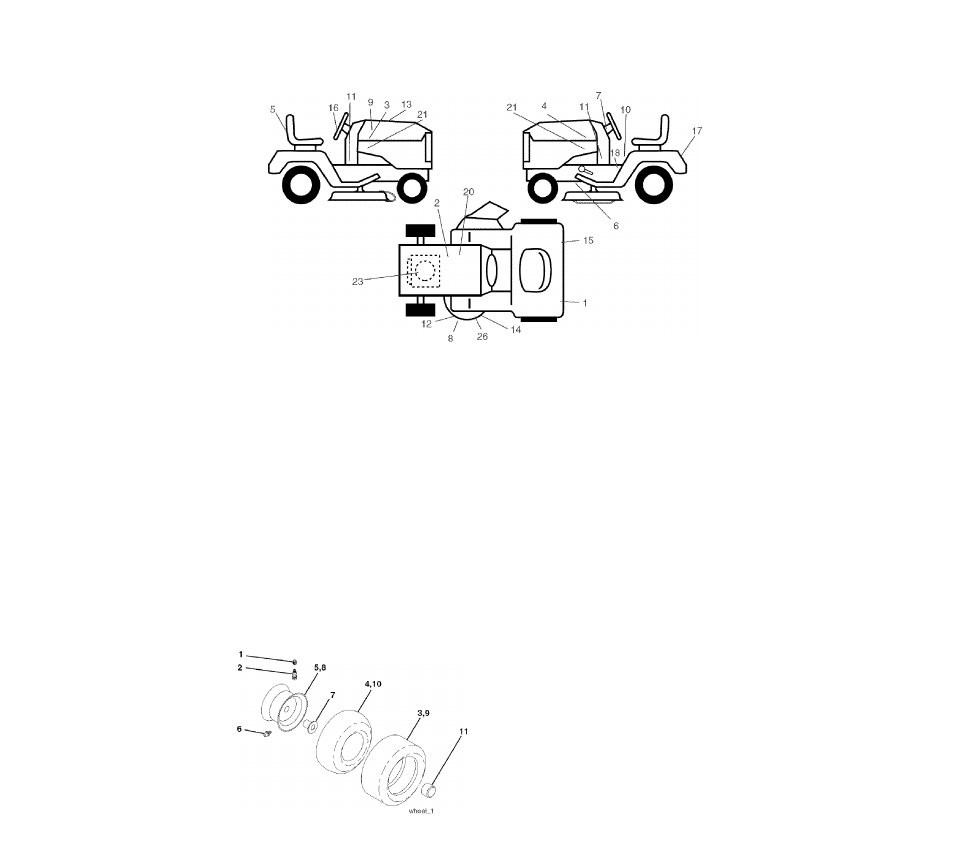

DECALS
KEY PART KEY PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 187407 Decal, Reflector, LH 16 192965 Decal, Steering Wheel
2 138047 Decal, Battery, Diehard, Sears 17 192962 Decal Fender
3 192963 Decal, Flood RH 18 156811 Decal, Fender Opr.
4 192964 Decal, Hood LH 20 149516 Decal, Battery
6 146046 Decal, V-Belt, Drive Schematic 21 192967 Decal, Hood, Side Panel
7 164096 Decal, Dash 23 189622 Decal, Engine
8 179128 Decal, Deck, Caution 26 181470 Decal, Deck level
9 192952 Decal, Replacement Hood - - 184310X428 Pad, Footrest, ST/LT, LH
10 156439 Decal, Fender, Danger
. .
184311X428 Pad, Footrest, ST/LT, RH
11 192966 Decal, Panel, Dash . . 166960 Decal By-Pass
12 172331 Decal, Mower, Heavy-Duty - - 192440 Manual, Owner's, English
13 133644 Decal, Replacement Parts
. .
192441 Manual, Owner's, Spanish
14 160396 Decal, V-Belf, Schematic
15 187408 Decal, Reflector, RH
WHEELS&TIRES KEY PART
NO. NO.
DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F Ts 15 x 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X417 Rim Asm 6" front Service
6 278H Fitting Grease (Front Wheel Only)
7 9040H Bearing Flange (Front Wheel
Only)
8 106108X417 Rim Asm 8" rear Service
9 122082X Tire R Ts 20x10^8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X428 Cap Axle BIk 1 50 x 1 00
-- 144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
44
