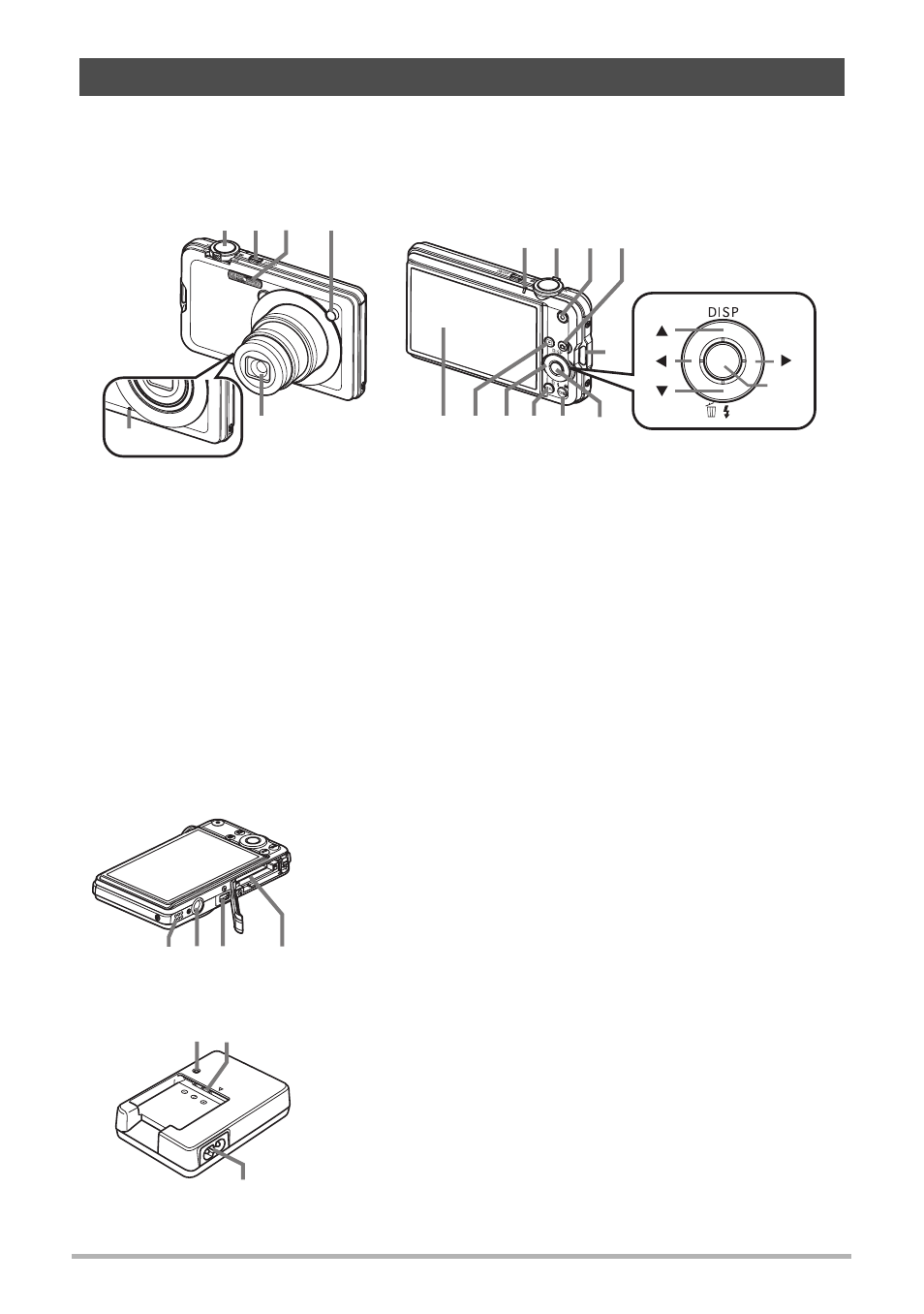

The numbers in parentheses indicate the pages where each item is explained.
.
Camera
.
Charger Unit
General Guide
1 Shutter button (page 24)
2 [ON/OFF] (Power)
(page 23)
3 Flash (page 36)
4 Front lamp
(pages 27, 70, 76)
5 Lens
6 Microphone
(pages 51, 111)
7 Back lamp
(pages 23, 25, 36)
8 Zoom controller
(pages 24, 47, 92, 93)
9 [0] (movie) button
(page 50)
bk [r] (REC) button
(pages 23, 24)
bl Strap hole (page 2)
bm [SET] button (page 31)
bn [BS] (^) button
(page 55)
bo [MENU] button
(page 64)
bp Control button
([8] [2] [4] [6])
(page 31)
bq [p] (PLAY) button
(pages 23, 28)
br Monitor screen
(pages 10, 162)
5
3 4 2 1
6
8 9 bk 7
bl
bn bo bp bq br bm
[ ]
[ ]
[ ] [ ]
[SET]
Back
bs Battery/memory card slots (pages 17, 21, 172, 174)
bt USB/AV port (pages 94, 118, 125, 134)
ck Tripod hole
Use this hole when attaching to a tripod.
cl Speaker
bs ck cl bt
Bottom
Front
3
2 1
1 [CHARGE] Lamp
2 +- Contacts
3 AC jack
