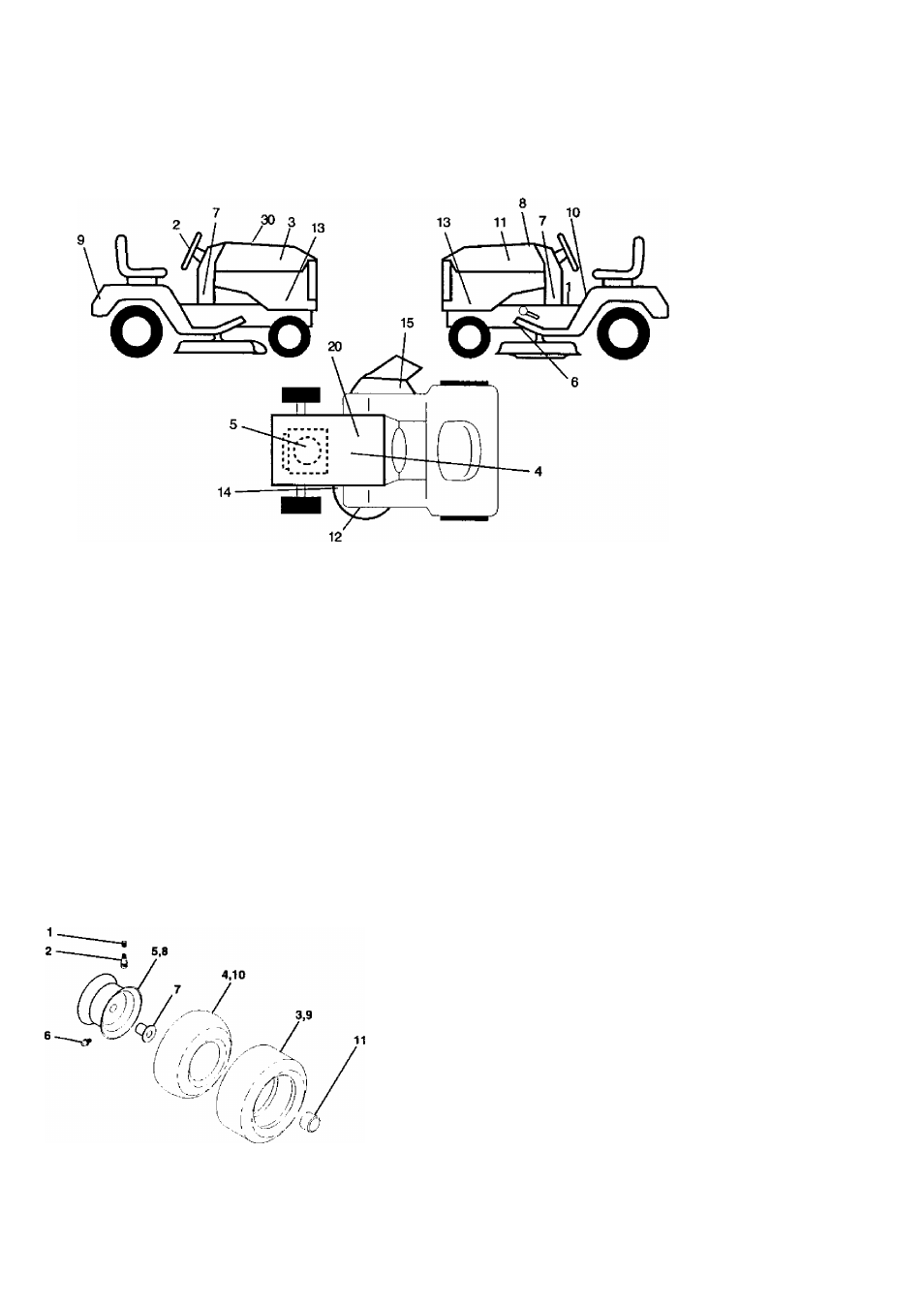

DECALS
TRACTOR--MODEL NUMBER 917.272464
KEY PART
NO. NO.
1
2
3
4
5
6
7
8
9
10
11
156811
164065
177356
138047
181569
146046
181703
133644
163204
156439
177357
DESCRIPTION
Decal Fend STLT Oper
Decal Steer. Wheel
Decal Hood RH
Decal Batt Diehard
Decal Engine
Decal V Belt Drive Sch
Decal Dash Pnl
Decal Customer Responsibility
Decal Craftsman
Decal Fender Danger Eng/Fr
Decal Hood LH
KEY PART
NO. NO.
12
13
14
15
20
30
172331
177355
160396
179128
149516
181429
165800X428
165799X428
138311
169210
184117
184118
DESCRIPTION
Decal Mower Srs Hvy Duty 12 Ga
Decal Hood Side
Decal V-Belt Schematic
Decal Deck "B” 42‘
Decal Bat Dan/Psn
Decal Replacement Parts
Pad Footrest LH STLT
Pad Footrest RH STLT
Decal Handle Lft Height Adjust
Decal By-Pass
Manual Owner's (English)
Manual Owner's (Spanish)
WHEELS & TIRES
KEY PART
NO. NO.
DESCRIPTION
1
59192
Cap Valve Tire
2
65139
Stem Valve
3
106222X
Tire Front
4
59904
Tube Front (Service Item Only)
5
106732X624
Rim Asm e’front Service
6
278H
Fitting Grease (Front Wheel Only)
7
9040H
Bearing Flange (Front Wheel niy)
8
106108X624 Rim Asm 8"rear Service
9
122082X
Tire Rear
10
7152J
Tube Rear (Service Item Only)
11
104757X428
Cap Axle BIk 1 50 x 1 00
- -
144334
Sealant, Tire ( 10 oz. Tube)
NOTE: All component dimensions given in U.S.
inches 1 inch = 25.4 mm
