Page 25

Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

Freezer

Compartment

Lamp

Dispenser Lamp

Freezer

Compartment

Shelf

Door Rack and

Support

Ice Storage Bin

After Dispenser

Is Used

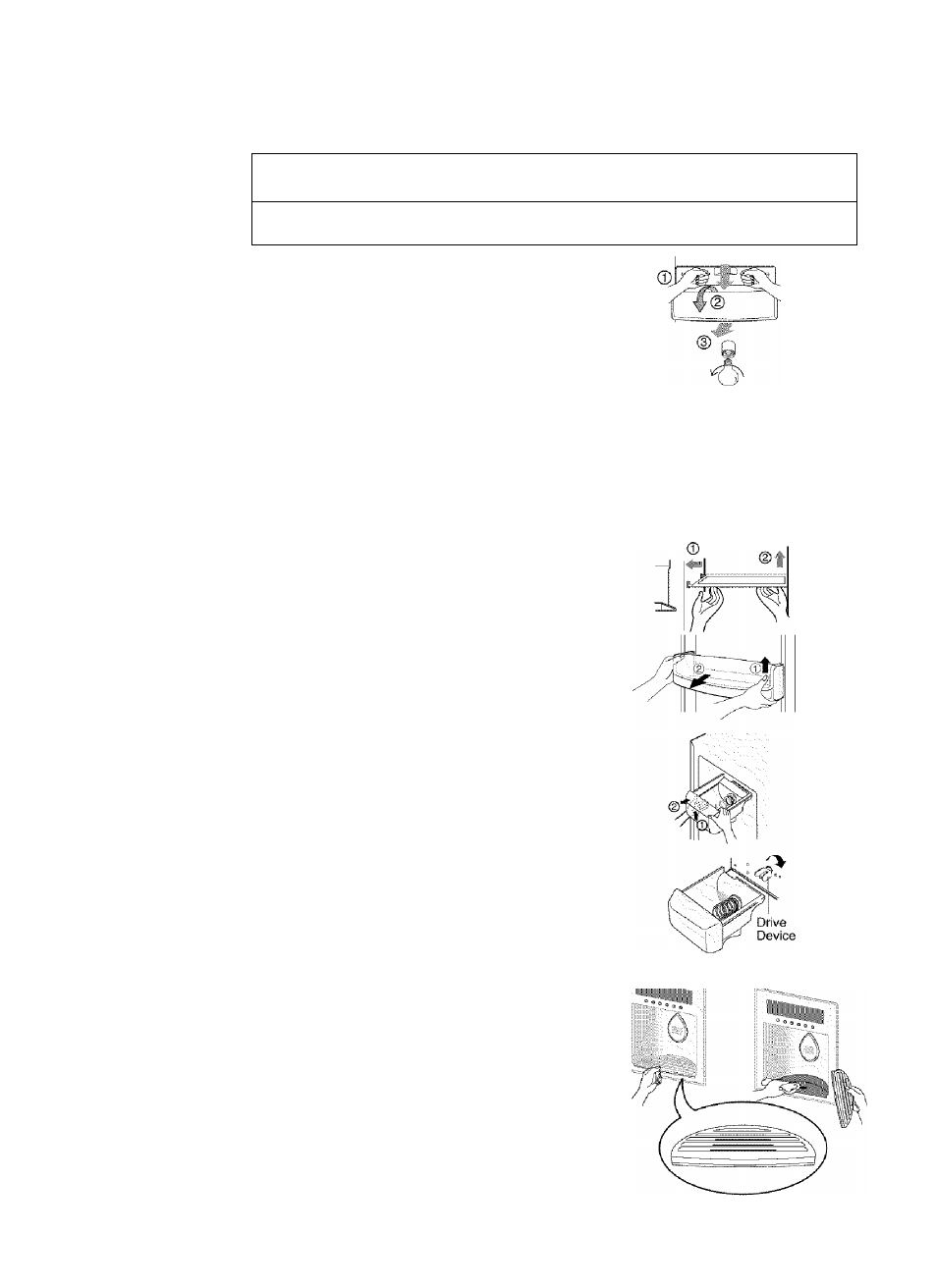

How to Dismantle Parts

NOTE

: : :'.l;Tisrtiahi:.iii:K'j js.d

oncMt) tlie.rt;\?orstr^s(:;qrH;nt:e f!l . a s s e r t v [ ) l y ; . : : : .... ............. .............

T-w.Si.|re r!Xi:jri):;Ji.

111 Novf.'t: appiy sow

('i .tfie i.iowéf .|.

I!,

;

..Ivel^ie .dlsriiant.liiH]s)tui.asseiiH?ly:. : : :

ere forco to .dismantle, parts;: Rarfs. ttiay.bo damaged:, : . . . . . . . . . :

To remove the lamp cover pull out firmly on the

lamp cover and rotate. This should expose the bulb.

Turn the bulb counterclockwise, Max. 40 W

refrigerator bulb is used and can be purchased at a
service center.

Seperate the lamp by pulling it out, and then
remove the lamp. Max. 15 W refrigerator bulb

is used and can be purchased at a service

center.

To remove a shelf, lift the left part of the shelf
a bit, push it to direction ®, lift the right part to

direction @, and take it out.

Lift the door rack holding both sides ® and
pull it in direction @.

Hold the ice storage bin as shown in the figure

to the right and pull it out (D while slightly lifting

it®.

■ It is recommended not to dismantle the ice

storage bin unless it is necessary.

" Use both hands to remove the ice bin to avoid

dropping it.

■ If the ice bin does not slide into place easily,

twist the drive device slightly.

The water collector has no self-drainage
function. It should be cleaned regularly.

Remove the cover by pulling the front side of

water collector cover and dry it with a cloth.

w ii
