External Control Device Setup
External Control Device Setup
Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor’s functions externally.
Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.
RS-232C connection cables are not supplied with the Monitor.
RS-232C Setup
[1
Q itO-' § C A
Cl Cf ro
C) O r.)
oo
C) C)
I'OCjf.-)
rocff.) (■■■
ij!^
■ 1 ■ 1 : 1
MiMitim o 0 o
TJJlIv
0 o
o o
. ...^ ....l
o O O f.li.Ufii
0 o o pwai .
j
■ili [lit
PC
Type of Connector; D-Sub 9-Pin Male
No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection
RS-232C Configurations
RXD
TXD
GND
DTR
DSR
RTS
CTS

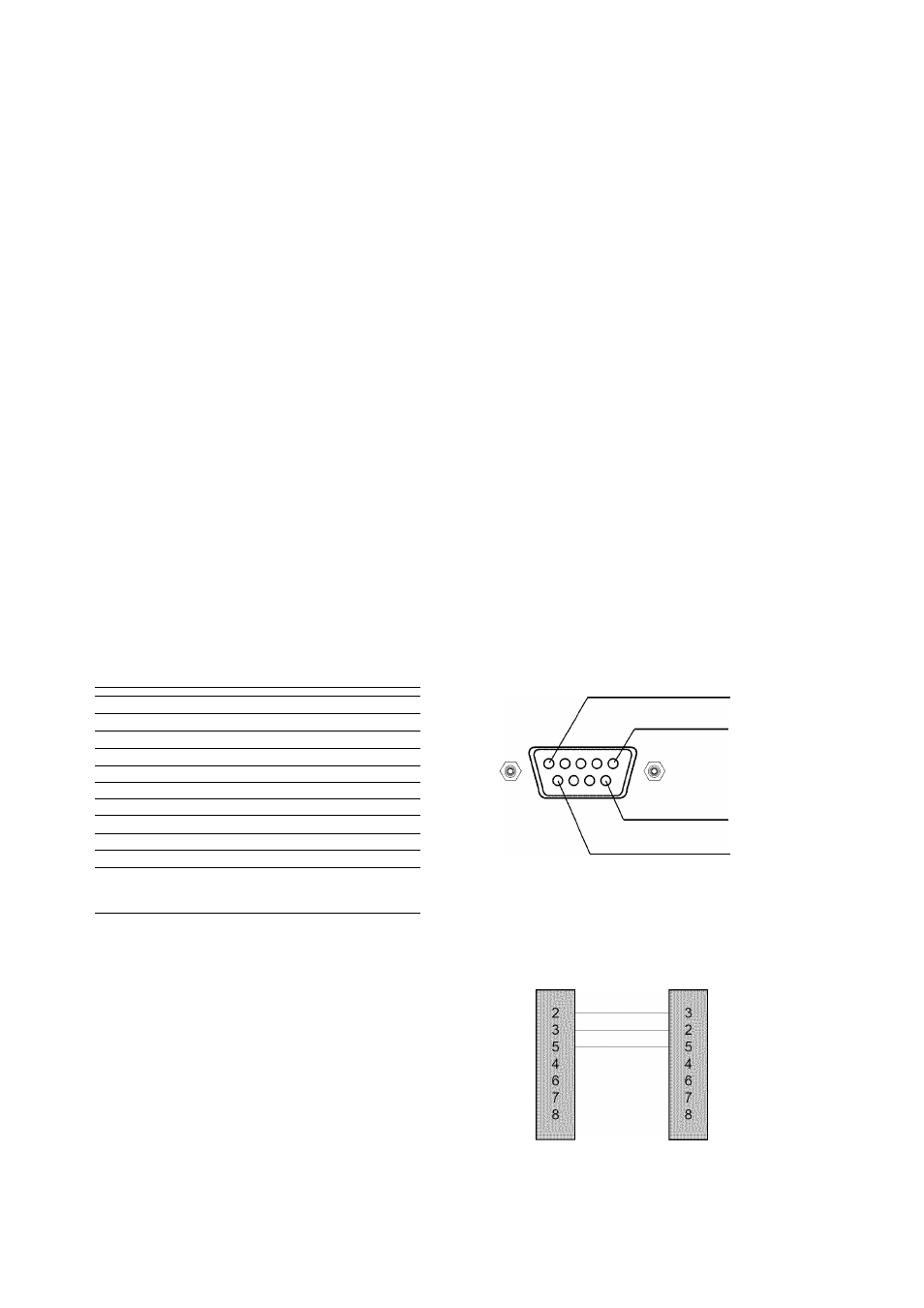

7-Wire Configurations
(Standard RS-232C cable)
PC PDP
TXD
RXD
GND
DSR
DTR
CTS
RTS
3-Wire Configurations
(Not standard)
PC
RXD
TXD
GND
DTR
DSR
RTS
CTS
PDP
TXD
RXD
GND
DTR
DSR
RTS
CTS
D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9
36 Plasma TV
