Connections for Playback

You can use this camcorder as a VCR by cotwecting it to your TV for playback. There are some ways to

connect your camcorder as shown below. It is recommended to use the house current as the power

source (p.l9).

Connecting to a TV without Video/Audio input Jades

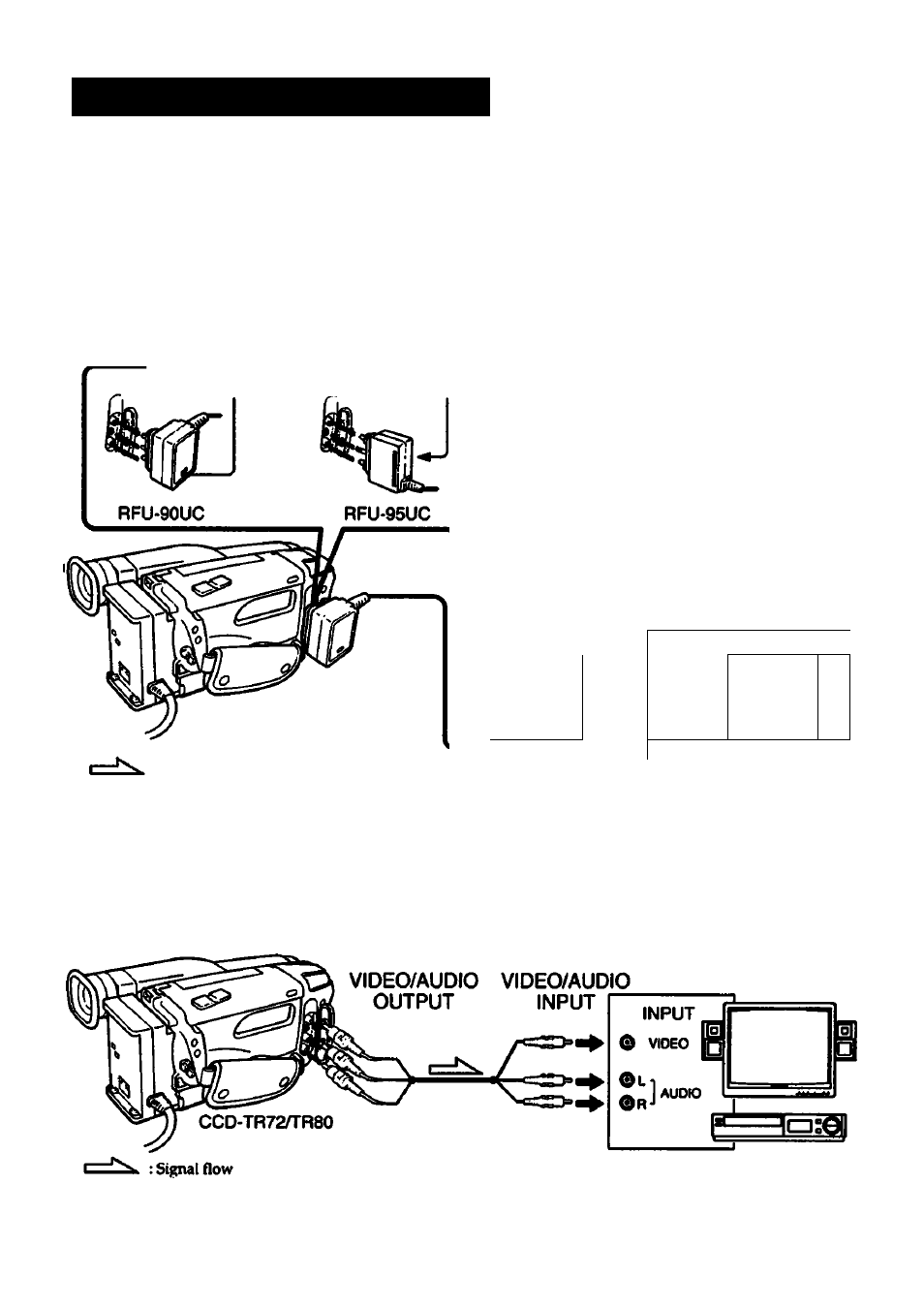

Connect the camcorder to the TV using the supplied RFU adaptor. Set the channel selector on the RFU
adaptor and your TV channel to VHP channel CH3 or CH4, whichever is not active in your area. With

this connection, the sound is monaural.

3CH/4CH

VHP

|ANT

□_______________

VHP

____________

: Signal flow

Connecting to a TV with Video/Audio input Jacks or VCR

For Stereo Models (CCD-TR72/TR80)

Connect the camcorder to your TV by using the supplied connecting cable. Set the TV/VCR selector to

VCR on the TV. When connecting the camcorder to VCR, set the input selector on the VCR to LINE.

If your TV or VCR is monaural type, connect only the white plug for audio on both the camcorder and
the TV or the VCR. With this connection, the sound is monaural.
