Getting Started

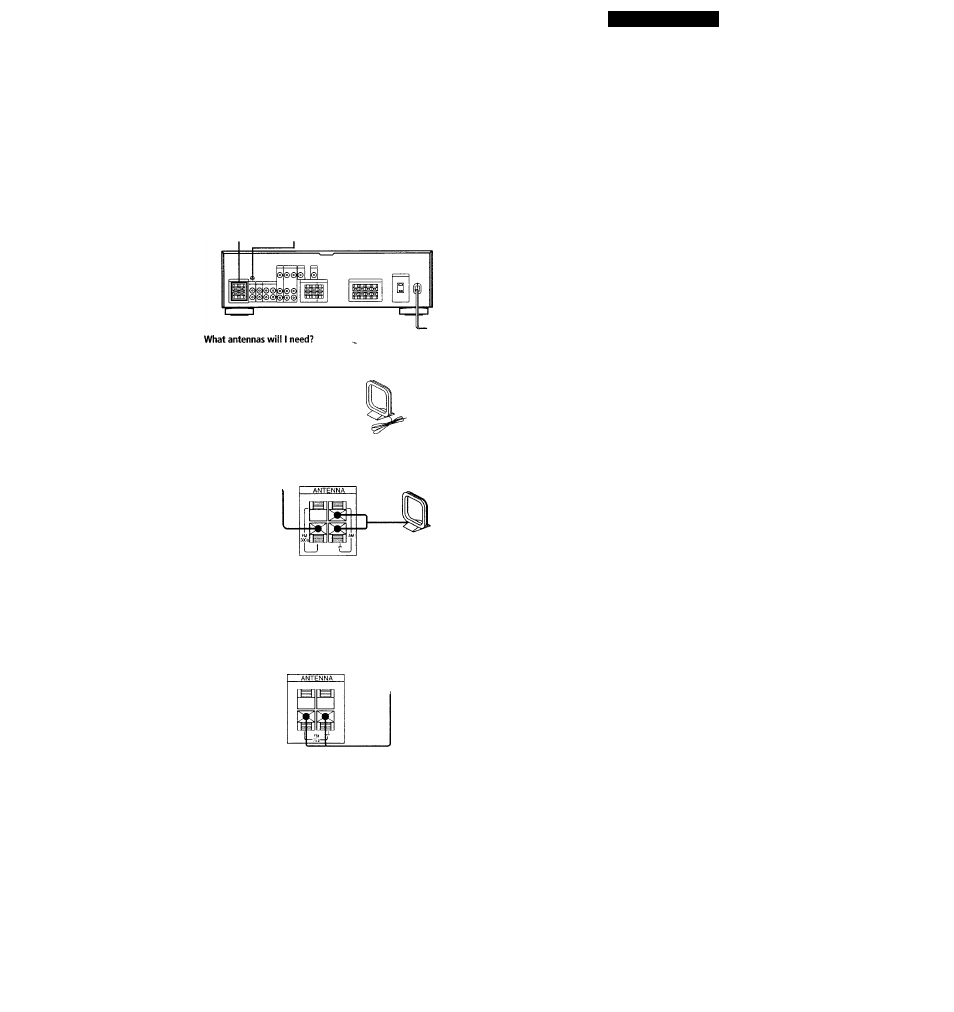

Antenna Hookups
Overview
This section describes how to connect AM and FM
antennas to the receiver. If you want to receive radio
broadcasts with the receiver, complete these
connections first, then go to the following pages.
For specific locations of the terminals, see the
illustration below.
ANTENNA ih
FM wire antenna
(supplied) (1) AM loop antenna
(supplied) (1)
Connecting a ground wire
To prevent hum, connect a ground wire (not supplied)
to the rh ground terminal. If you've connected an
outdoor antenna, be sure to connect the ground for
lightning protection.
Receiver
A
to ground
Where do / go next?
If you want to connect other components, go on to the next
section. If you're only planning to use the receiver to listen
to the radio, go to “Speaker System Hookups" on pages 6
and 7.
Hookups
Audio Component Hookups
FM wire antenna
After connecting
the wire
antenna, keep it
as horizontal as
possible.
Receiver AM loop antenna Overview
This section describes how to connect your audio
components to the receiver. If you want to use the
receiver as an amplifier, complete these connections.
For specific locations of the jacks, see the illustration
below.
If you have poor FM reception
Connect a 75-ohm coaxial cable (not supplied) to an FM
outdoor anterma. Pull back the mesh portion surrounding
the inner cable and connect it to the earth terminal (right
side). Connect the inner cable to the FM terminal (left
side).
Receiver
CD
m®
3S©
®@®
©(3
©®i
3_E.
n i
PHONO TAPE/MD
What cords will I need?
Audio cords (not supplied) (1 for each CD player and
turntable; 2 for each tape deck or MD recorder)
^ If you have poor AM reception
Connect a 20 to 50 ft. (6 to 15-meter) insulated wire (not
supplied) to the AM antenna terminal in addition to the
AM loop anterma. Try to extend the wire outdoors and
keep it horizontal.
White (L) '
Red (R)
White (L)
Red (R)
(continued)
