24

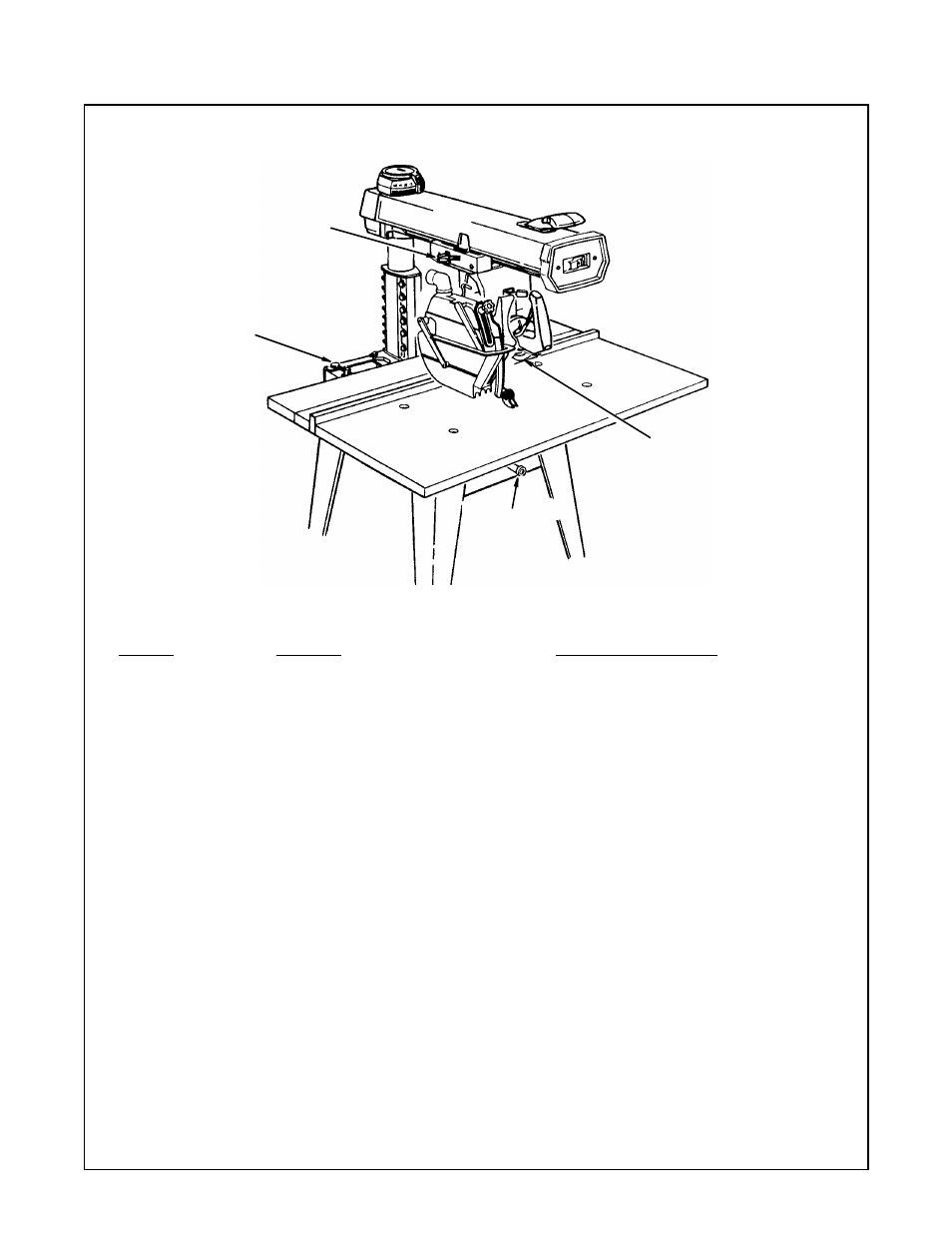

Elevation
Yoke Index
Lever
Table Clamp
Crank
Bevel Lock Lever
Control Function OperationlComments
Bevel Lock Lever Frees motor to rotate; locks in any
desired position Pull lever to release and push to lock
Support motor before unlocking
because it can swing down quickly
Bevel index lever must be unindexed
before moving motor
Elevation Crank Raises/lowers radial arm
Turn clockwise to raise, counterclock-
wise to lower
Table Clamp Frees table sections to allow
changing fence position Turn clockwise to tighten, counter-
clockwise to loosen
Yoke Index Lever Frees yoke to rotate between rip
and crosscut positions Pull the spring loaded yoke pivot
latch forward to release this pin
Controls
