14

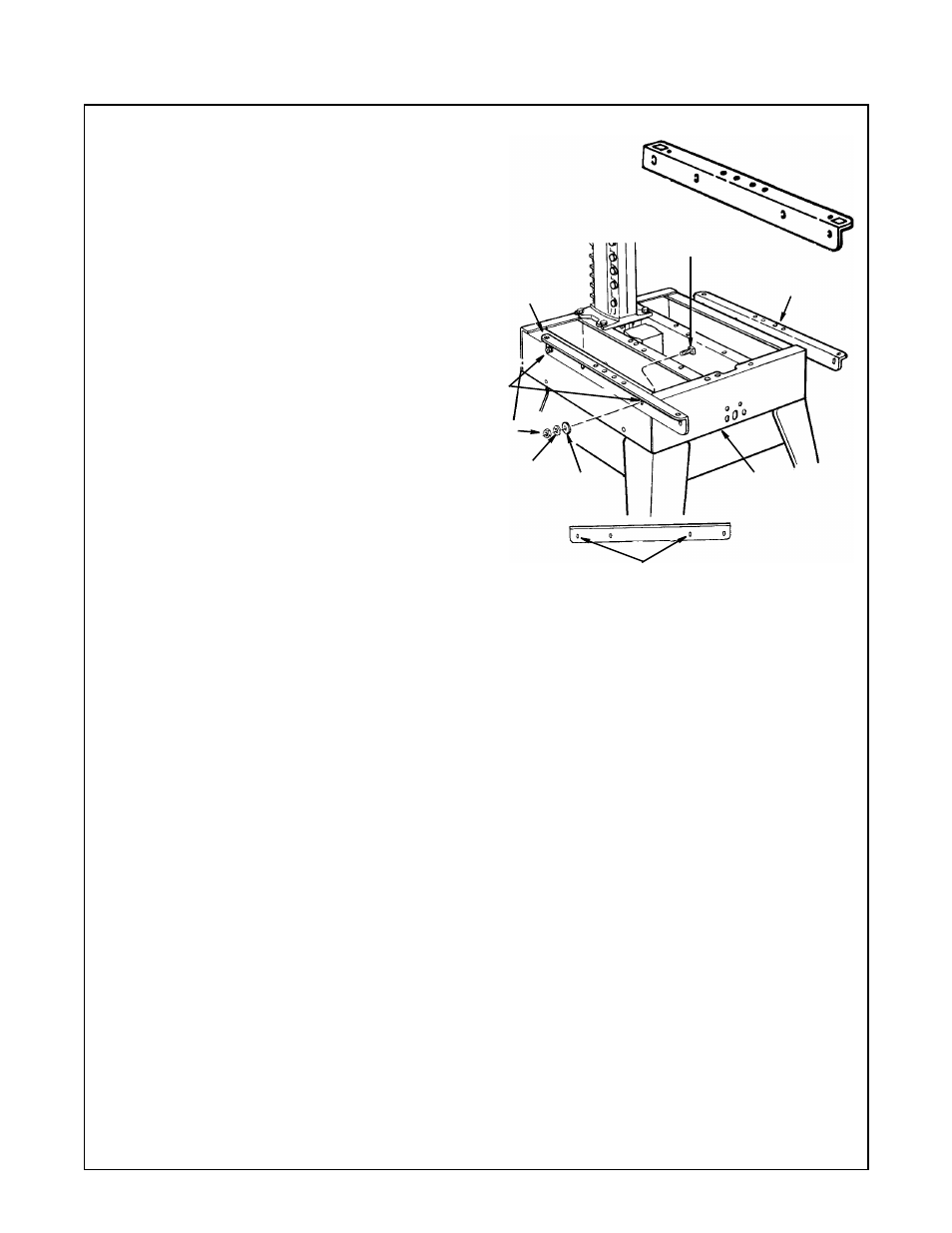

Attach new table supports
1. Set out:
- two table supports
- four 5/16" 18 x 3/4" long square head
screws
- four 11/32" x 7/8" x 1/16" flat washers
four 5/16" lockwashers
- four 5/16" hex nuts
- Attach supports to side frame, making
sure to use correct holes in table sup-
ports and side frame: Use two screws
per support (insert screws through base
and then support); on end of each screw
put a flat washer, lockwasher and nut,
then finger tighten to table supports rest
in lower position.
Table Mounting
Support Channel
Screws
Nut
Lockwasher
7/8" O.D.
Base
Square Hd. Screw
5/16-18 x 3/4
Table Mounting
Support Channel
Flat Washer
Here
Front
Mount Rails Using These Holes
Assembly
