Unpacking
Check that you received the following items:
• Audio connecting cords (2)
Setting the voltage selector (only on models
supplied with a voltage selector)
Check that the voltage selector on the rear panel of the
tape deck is set to the local power line voltage. If not,
set the selector to the correct position using a
screwdriver before connecting the AC power cord to
an AC outlet.
Hooking Up the System
This section describes how to hook up the tape deck to
an amplifier. Be sure to turn off the power of each
component before making the connections.
V O L T A G E
• 2 2 0 V
- 2 4 0 V
TC-WR665S/WR565
Connecting the AC power cord
Connect the AC power cord to an AC outlet.
Where do I go next?
Now you're ready to use your tape deck.
For basic operations, go to pages 4 to 6; for advanced
operations, go to the sections immediately after this one.

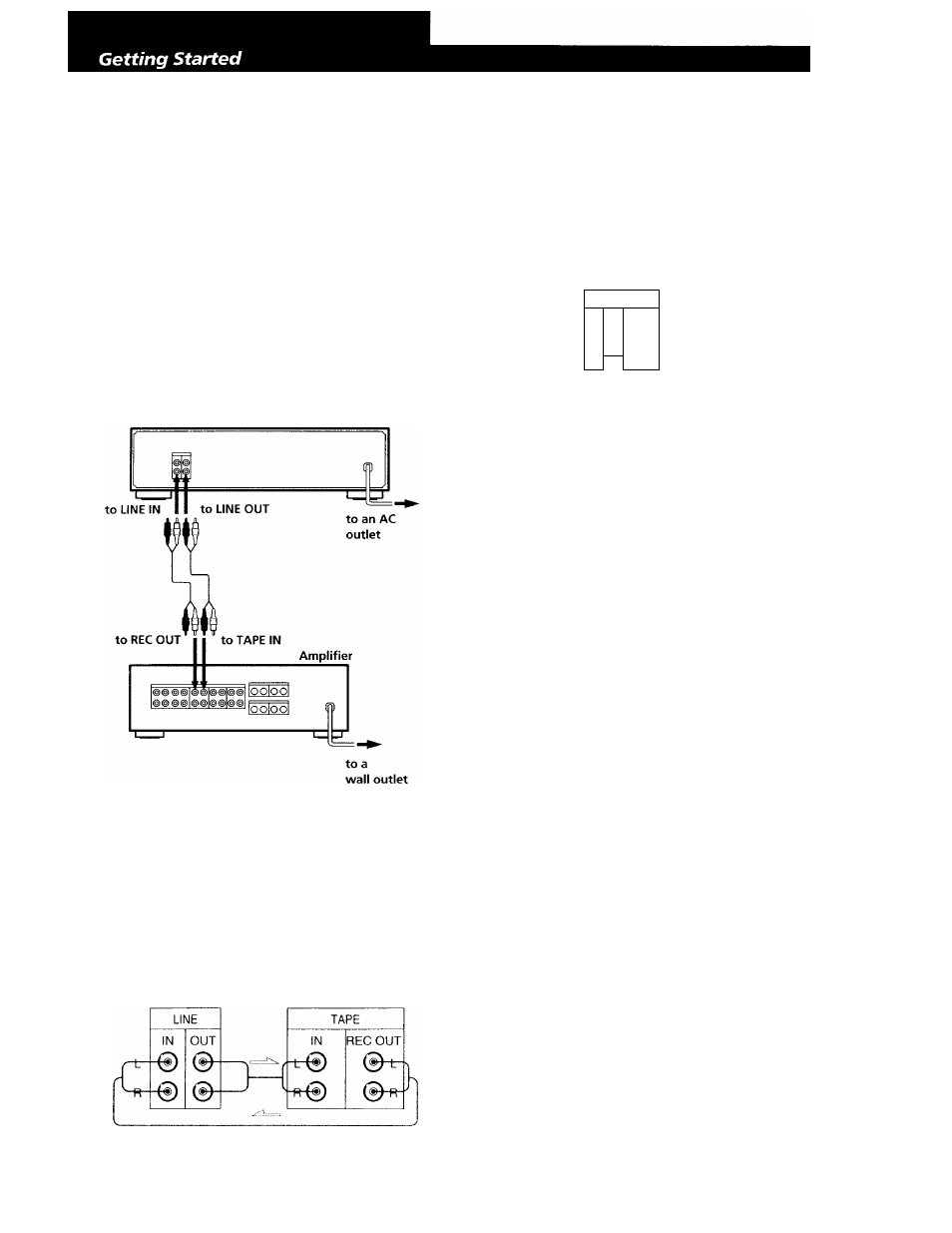

Hookups
When connecting an audio cord, be sure to match the
color-coded cord to the appropriate jacks on the
components: Red (right) to Red and White (left) to
White. Be sure to make connections firmly to avoid
hum and noise.
Connect the tape deck to the amplifier as shown
below.
Tape deck Amplifier
1»
