Unpacking
Hookups
Check that you received the following items:
• Audio connecting cords (2)
• Control A1 cord (1) (supplied for Canadian model
only)
Hooking Up the System
This section describes how to hook up the tape deck to
an amplifier. Be sure to turn off the power of each
component before making the connections.
TC-WE435
Signal flow
Connecting the tape deck to an amplifier
Connect the amplifier to the LINE IN/OUT connectors
using the supplied audio connecting cords.
When connecting an audio connecting cord, be sure to
match the color-coded cord to the appropriate jacks on the
components: Red (right) to Red and White (left) to White.
Be sure to make connections firmly fo avoid hum and
noise.

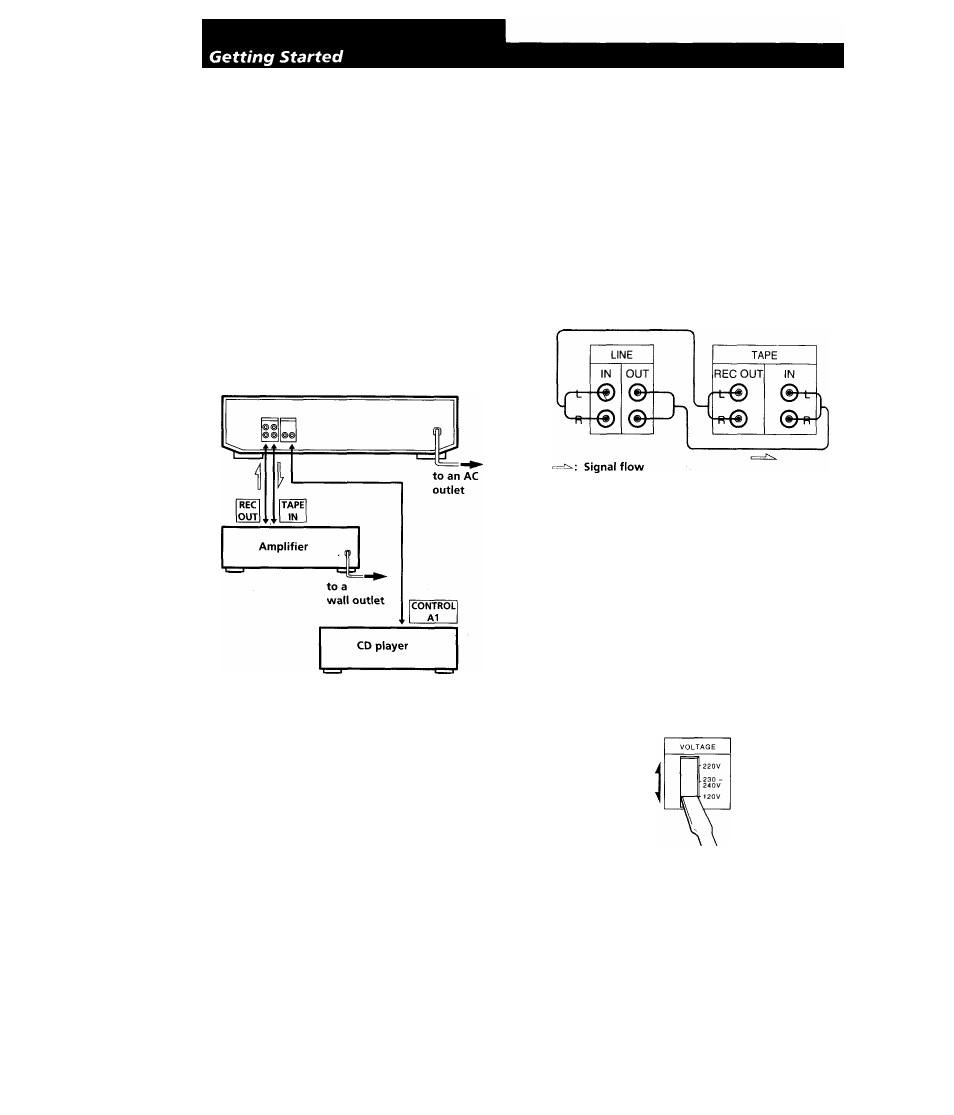

Connect the tape deck to the amplifier as shown below.
Tape deck Amplifier
Connecting the tape deck to a CD player equipped
with CONTROL A1 connectors
For information on connections through the CONTROL
A1 connectors, refer to the pamphlet included with this
manual.
Setting the voltage selector (only on
models supplied with a voltage selector)
Check that the voltage selector on the rear panel of the
tape deck is set to the local power line voltage. If not,
set the selector to the correct position using a
screwdriver before cormecting the AC power cord to
an AC outlet.
Connecting the AC power cord
Connect the AC power cord to an AC outlet.
Where do I go next?
Nozv you're ready to use your tape deck.
For basic operations, go to pages 5 to 7; for advanced
operations, go to the sections starting from page 8.
