Connecting the IR Blaster

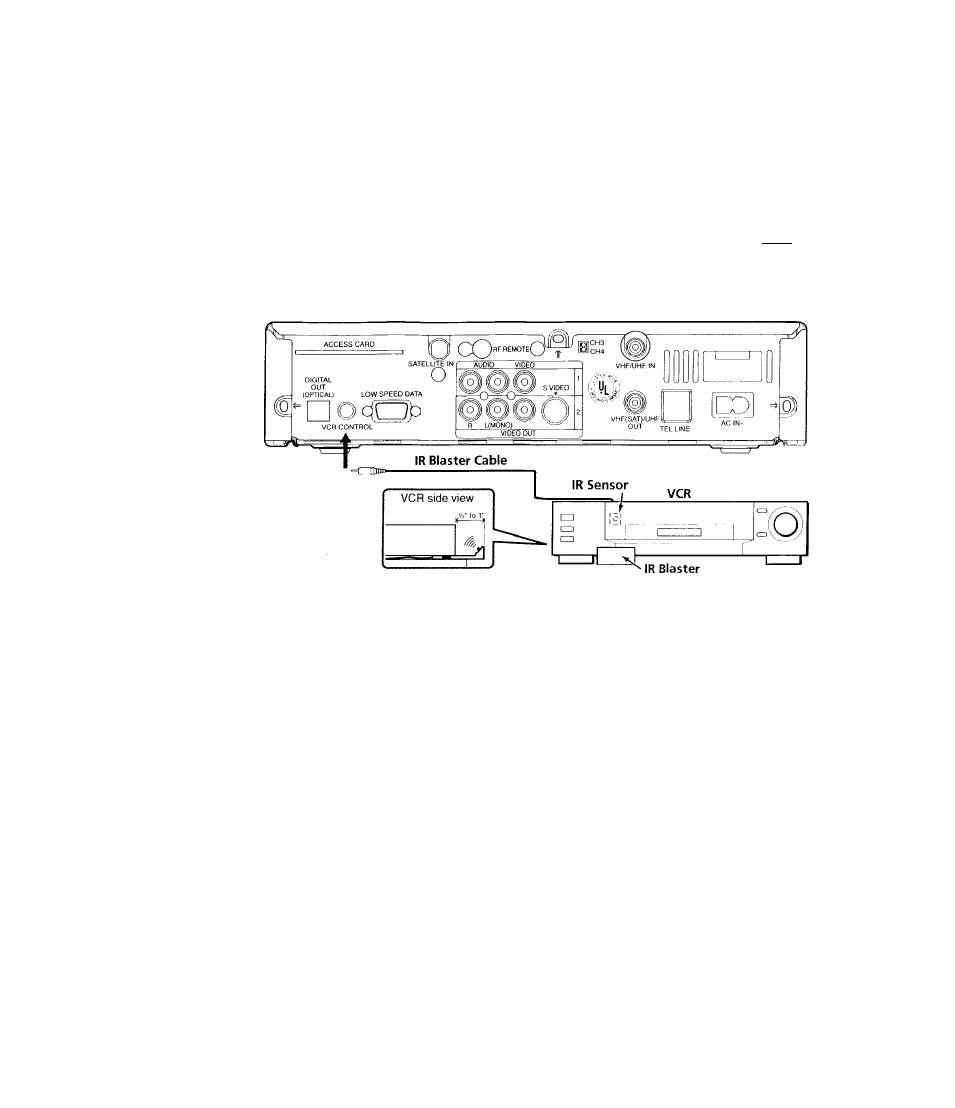

SAT-A4 receiver is pictured, hut
connections are identical for SAT-B3.
The IR Blaster works with the Digital Satellite Receiver's Timer
function to automatically start and stop the recording function of your
"VCR.
1 Connect the IR Blaster to the Digital Satellite Receiver's VCR
CONTROL jack. Then place the IR Blaster below and in front of the
VCR, about ^
/2 " to 1". For best results, place the IR Blaster directly
below the VCR's IR receiving area.
Digital Satellite Receiver
If the IR Blaster doesn't seem to be
working correctly, first check that the IR
Blaster is positioned directly below the
VCR's [R receiving area and that the
VCR's line input is set to the Digital
Satellite Receiver. If it's still not working,
try this procedure again using the other
codes listed for your VCR on page 86.
Set the manufacturer, and code type of your VCR using the VCR
RECORDING Screen on page 66. This must be done for the IR
Blaster to function properly.
To use the IR Blaster: 1) Set the Timer (page 35), 2) Turn
on the VCR and set the VCR's line input to the Digital Satellite
Receiver,
3) Insert a tape, 4) Turn off the VCR.
