TV With A/V Connectors
Ifi/our TV has only one AUDIO IN jack,
connect the lower (mono) AUDIO L jack
on the Digital Satellite Receiver to the
TV’s AUDIO IN jack.
1 Connect the RG-6 cable from the Satellite Antenna's LNB to the
Digital Satellite Receiver's SATELLITE IN jack.
2 Connect the Digital Satellite Receiver's A/V jacks to the TV's A/V
» IN jacks.
3 Connect one end of the telephone line cord to the Digital Satellite
Receiver's TEL LINE jack. Connect the other end to your home's
modular telephone outlet. Do not connect to a "wireless"
telephone extension. Since these devices typically do not support
high data rates, connecting to one may result in very slow
operation or may even prevent connection with your program
provider.
4 Connect one end of the AC power cord to the Digital Satellite
Receiver's AC IN jack. Connect the plug end to an AC outlet.

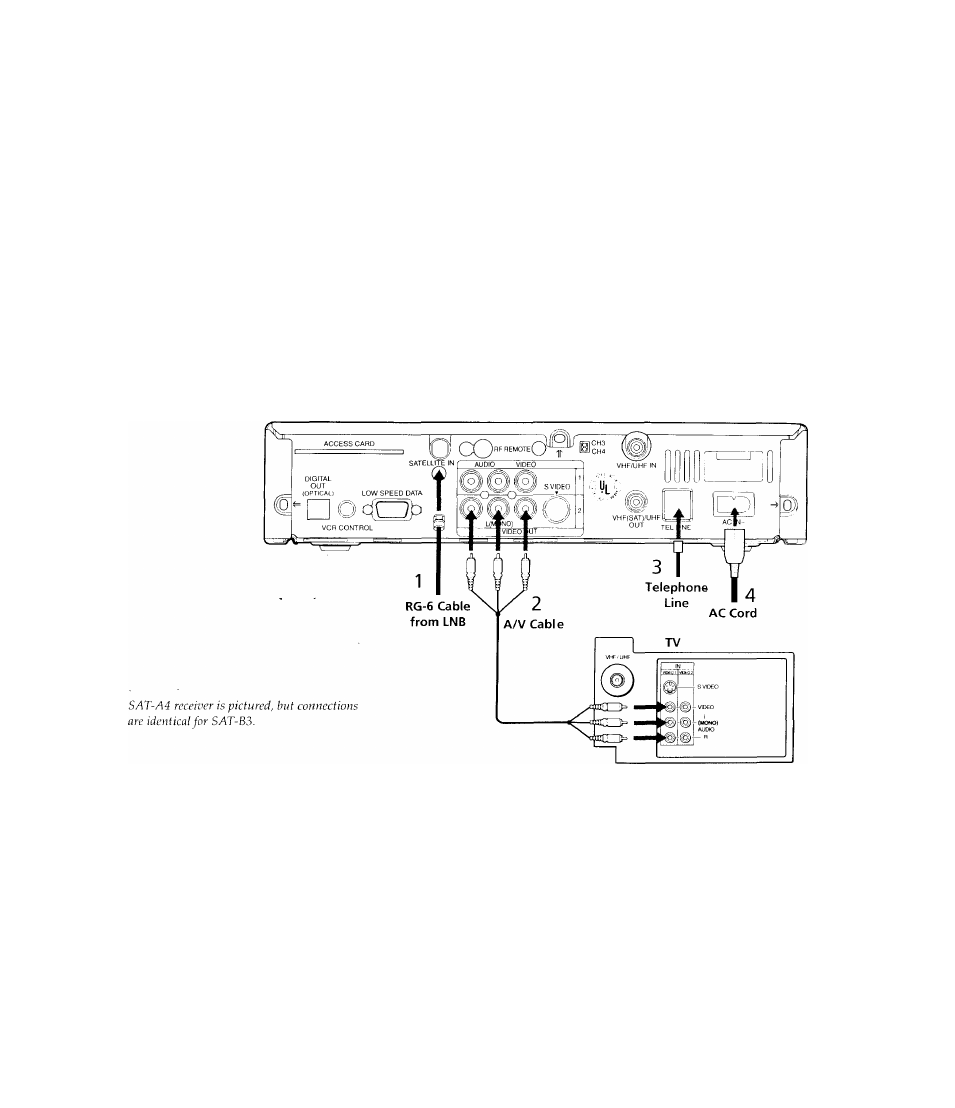

R e fe r to th e illu s tr a tio n b e lo w .
Digital Satellite Receiver
Your VHF/UHF IN jack may be labeled as
RFIN.
Optional Connections
□ If you have a cable input, cable box, or a terrestrial TV antenna,
connect it to the TV's VHF/UHF IN jack.
□ Best Connection: If your TV has an S-VIDEO jack, use an S-VIDEO
cable to connect the Digital Satellite Receiver's S-VIDEO jack to the
TV's S-VIDEO IN jack. This provides the best picture quality. Then
use audio cables to connect one set of the Digital Satellite
Receiver's audio jacks to the TV's AUDIO IN jacks.
□ You can also connect the Digital Satellite Receiver to your audio
receiver's AUDIO IN jacks using audio cables.
