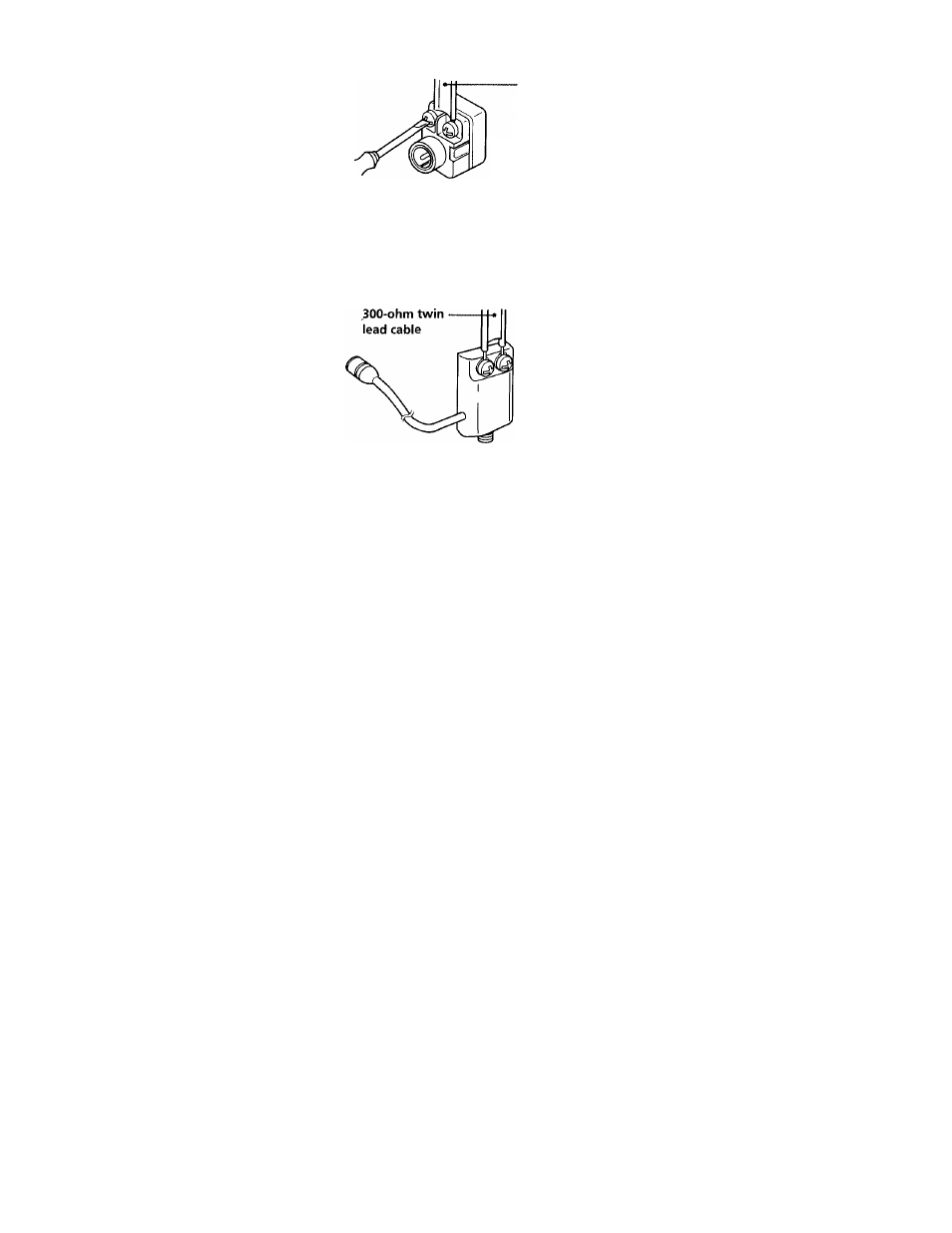

Attaching the external
antenna connector
when using a 300-ohm twin lead cable
for VHP / UHF antenna, use the E AC-32
antenna connector (not supplied) to
connect the antenna to the VCR.
300-ohm
twin
lead cable
EAC-32 Antenna
connector (not
supplied)
1
Loosen the screws on the anterma-connector.
2
Wind the twin leads around the screws on the antenna connector.
3
Retighten the screws.
Attaching a UHFAAHF band
mixer
When using both 75-ohm coaxial cable
and 300-ohm twin lead cable for VHP /
UHP antenna, use the EAC-66 UHF/
VHP band separator/mixer (not
supplied) to cormect the antenna to the
VCR.
EAC-66
UHF/VHF
band
separator/
mixer
(not
supplied)
75-ohm coaxial
cable
1
Loosen the screws on the mixer.
2
Wind the twin leads around the screws on the mixer.
3
Retighten the screws.
4
Cormect the 75-ohm coaxial cable to the mixer.
Additional Information 79
