9

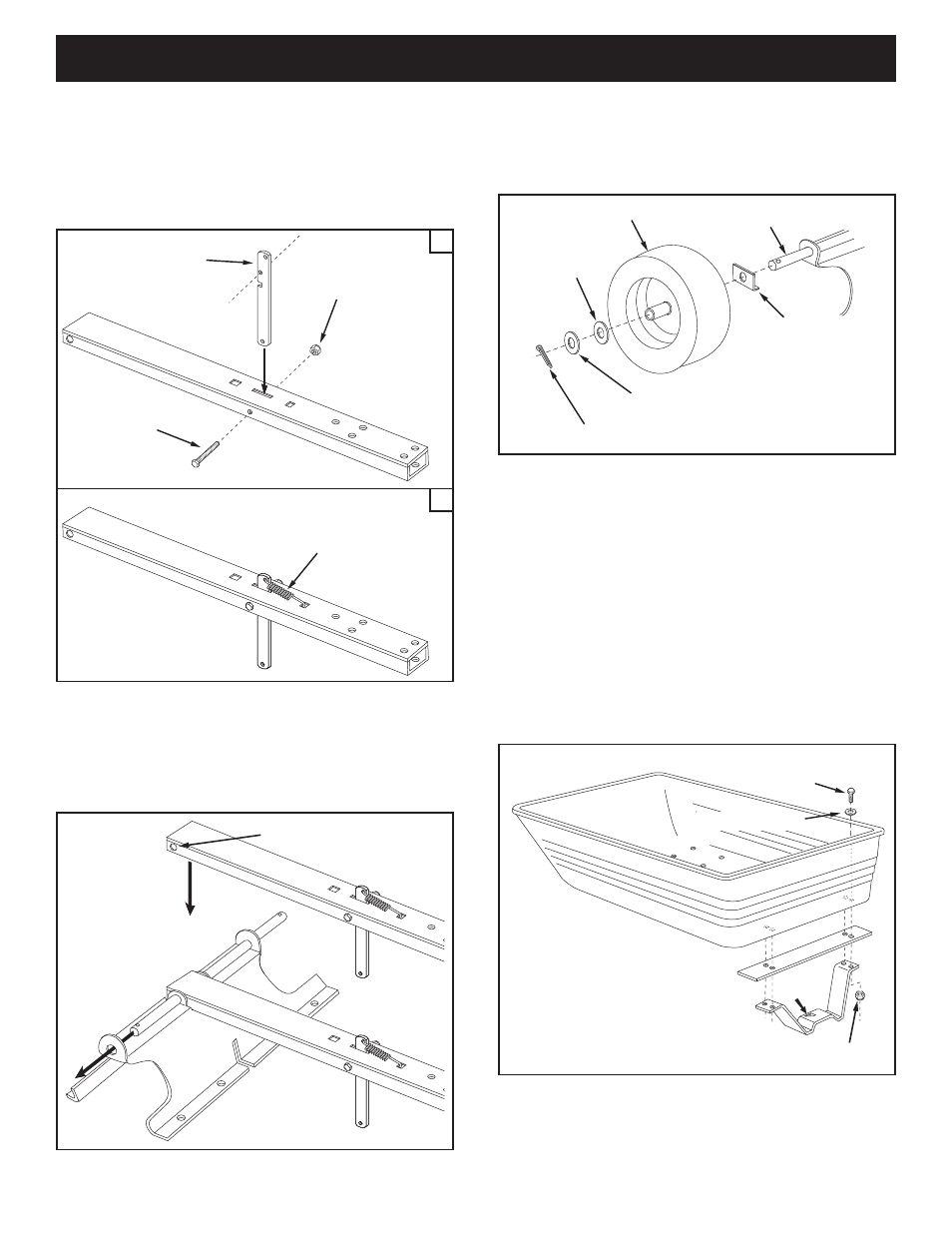

ASSEMBLY
Assemble latch lever to rear tongue using 5/16" x 4" •
hex bolt and 5/16" lock nut. Tighten nut until snug
against side of rear tongue. See figure 1A.
Attach the spring to the hole in the latch lock lever •
and the hole in the tongue. See figure 1B.
Assemble the rear tongue to the wheel support by •
sliding the axle through the holes in the tongue and
wheel support as shown in figure 2.
5/16" x 4"
HEX BOLT
SPRING
LATCH
LOCK
LEVER
5/16" LOCK NUT
Assemble an axle clip, wheel (valve stem facing out) •
washer, and a second washer (if space allows) onto
the axle as shown in figure 3. Secure the wheel in
place using a cotter pin. Repeat for other wheel.
HOLE FOR AXLE
FIGURE 2
FIGURE 1
COTTER PIN
WHEEL
FLAT WASHER
(IF SPACE ALLOWS)
FLAT
WASHER
AXLE
AXLE
CLIP
FIGURE 3
Assemble the latch stand plate and latch stand •
bracket (with alignment tab toward rear of cart) to the
cart try using four 1/4" x 3/4" hex bolts, 1/4" washers
and 1/4" nylock nuts.
Tighten nuts after all bolts are
in place. See figure 4.
1/4" WASHER
1/4" NYLOCK NUT
TAB
1/4" x 3/4"
HEX BOLTS
FIGURE 4
A
B
