6

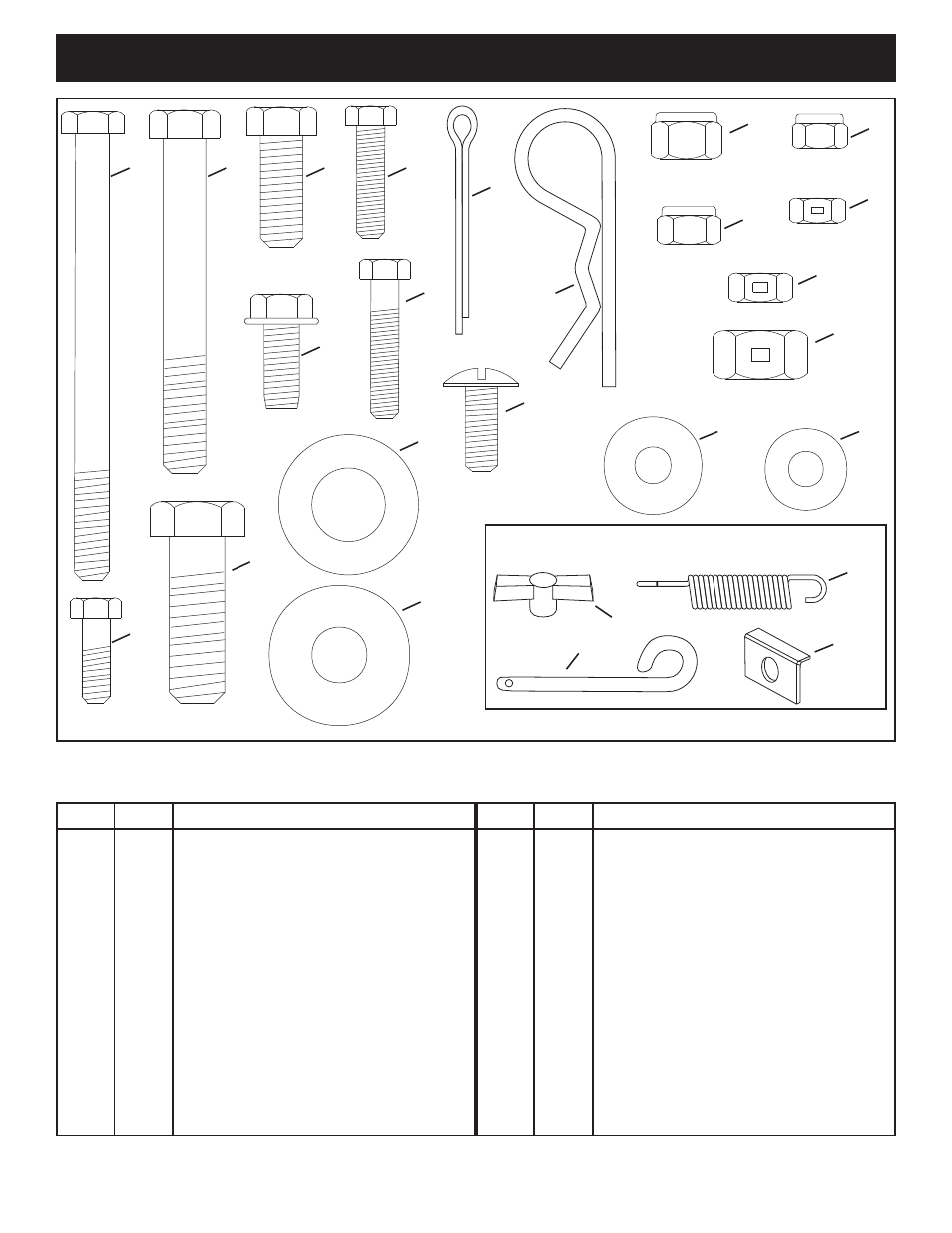

FULL SIZE HARDWARE CHART (Cart)
REF. QTY. DESCRIPTION
A 1 Hex Bolt, 5/16-18 x 4"
B 5 Hex Bolt, 3/8-16 x 3"
C 4 Hex Bolt, 3/8-16 x 1"
D 4 Hex Bolt, 1/4-20 x 1"
E 2 Cotter Pin, 1/8" x 1-1/4"
F 1 Hair Cotter Pin, 3/32 x 2-5/16"
G 4 Bolt, 5/16-18 x 3/4" Self-Tapping
H 4 Hex Bolt, 1/4-20 x 1-1/4"
I 13 Hex Bolt, 1/4-20 x 3/4"
J 1 Hex Bolt, 1/2-13 x 1-1/2"
K 4 Washer
L 1 Washer, 7/16"
M 8 Truss Head Bolt, 5/16-18
REF. QTY. DESCRIPTION
N 9 Nylock Nut, 3/8-16
O 13 Nylock Nut, 1/4-20
P 8 Nylock Nut, 5/16-18
Q 8 Lock Nut, 1/4-20
R 1 Lock Nut, 5/16-18
S 1 Lock Nut, 1/2-13
T 4 Nylon Washer, .328" x .75"
U 18 Washer, 1/4"
V 3 Wing Nut, 5/16-18
W 1 Idler Spring
X 1 Hitch Pin
Y 2 Axle Clip
NOT SHOWN FULL SIZE
A B C D
E
F
G
I
K
L
M
N O
P
Q
R
V
T
J
H
S
U
Y
W
X
