Craftsman MONSTER 486.245071 - Manual (Page 26)

26
REF.
NO.
PART
NO.
QTY. DESCRIPTION
1 629-0241A 1 Harness, Wire
2 24634 1 Housing Assembly, Inner
3 24633 1 Housing Assembly, Outer
4 43182 10 Hex Bolt, 5/16-18 x 3/4"
5 40320 4 Hex Bolt, 5/16-24 x 1-1/4"
6 710-1268 2 Screw, Self Tap #10-16 x 3/8"
7 43063 3 Hex Bolt, 5/16-18 x 1"
8 712-0421 3 Wingnut
9 47810 12 Nylock Nut, 5/16-18
10 43086 4 Lock Washer, 5/16"
11 23727 4 Spacer
12 725-1700 1 Switch Cover
REF.
NO.
PART
NO.
QTY. DESCRIPTION
13 725-3166 1 Snap Mount Switch
14 726-0272 1 Clamp
15 731-1613 1 Switch Cover
16 24958 1 Hose Hanger Bracket
17 48848 4 Nylock Jam Nut, 5/16-18
18 43081 4 Washer, 5/16" Std.
19 736-0247 1 Washer
20 65428 1 Impeller Assembly
21 44377 1 Hex Bolt, 3/8-24 x 1"
22 43003 1 Lockwasher, 3/8"
23 49869 1 Wire Mag. Ground
24 23477 1 Key, 1/4 Sq. 2" Long

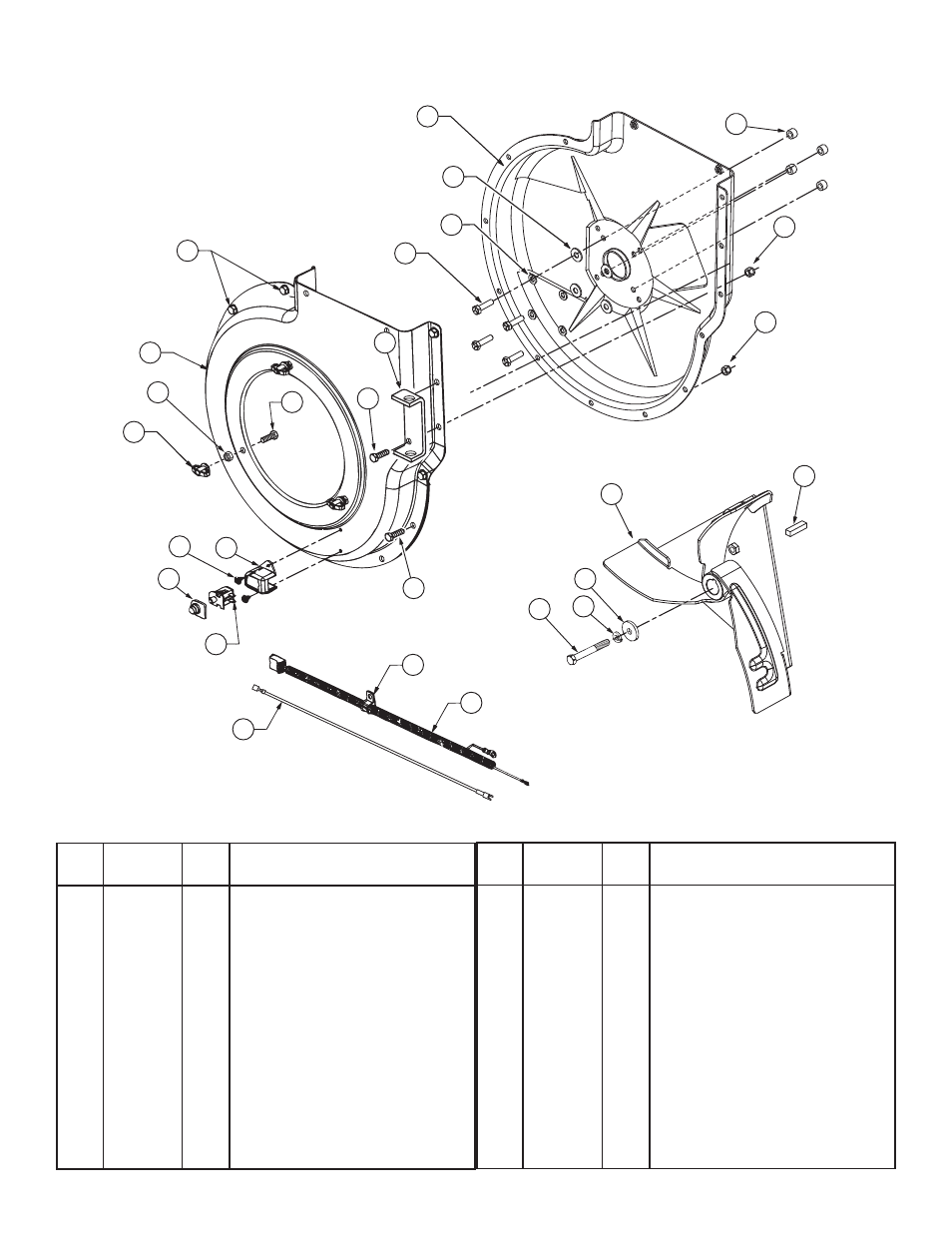

REPAIR PARTS LIST FOR 486.245071 MONSTER vAC
