The numbers in parentheses indicate the pages where each item is explained.
.
Camera

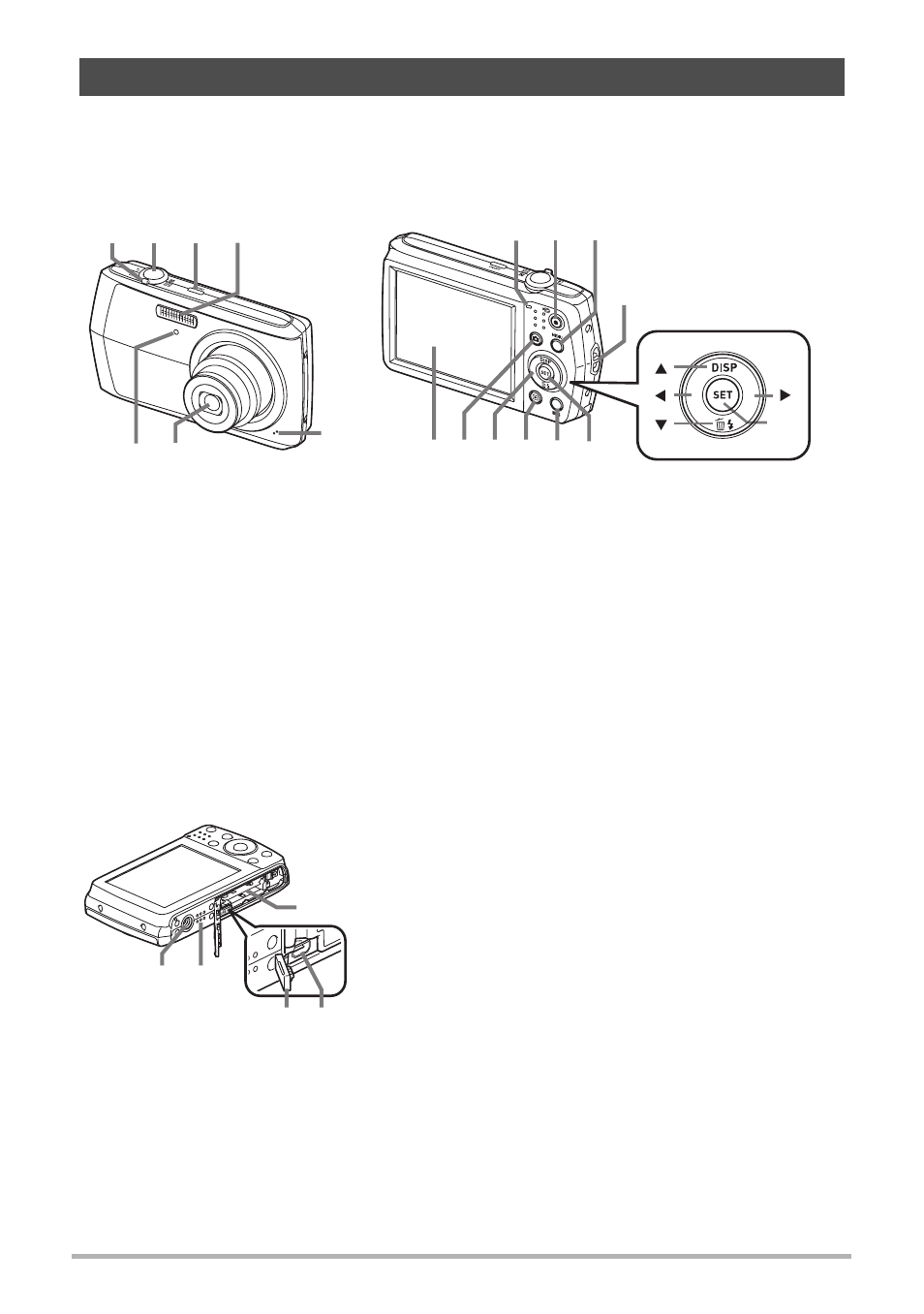

General Guide
1 Zoom controller
(pages 25, 45, 72)
2 Shutter button (page 25)
3 [ON/OFF] (Power)
(page 23)
4 Flash (page 36)
5 Microphone
(pages 49, 80)
6 Lens
7 Front lamp (page 38)
bs Battery/memory card slots
(pages 18, 21, 126, 128)
bt USB/AV port (pages 73, 83, 91, 100)
ck Connector cover
cl Speaker
cm Tripod hole
Use this hole when attaching to a tripod.
4 3 2 1
6
5
7
[ ]
[ ]
[ ]
[ ]
[SET]
bk
bn
8 9
bl
bm bp bq br bo
Front Back
bs
cl cm
ck bt
Bottom
8 Back lamp
(pages 17, 23, 26, 36)
9 [0] (Movie) button
(page 48)
bk [MENU] button
(page 55)
bl Strap hole (page 2)
bm [SET] button (page 31)
bn [BS] button (page 52)
bo [p] (PLAY) button
(pages 23, 28)
bp Control button
([8] [2] [4] [6])
(pages 29, 31, 36, 55,
117)
bq [r] (REC) button
(pages 23, 25)
br Monitor screen
(pages 10, 117)
