Connections
Video and audio connection cord plug colors are indicated as yellow, white, and
red. Make sure that the jacks of the equipment are properly connected to Its
corresponding colors.

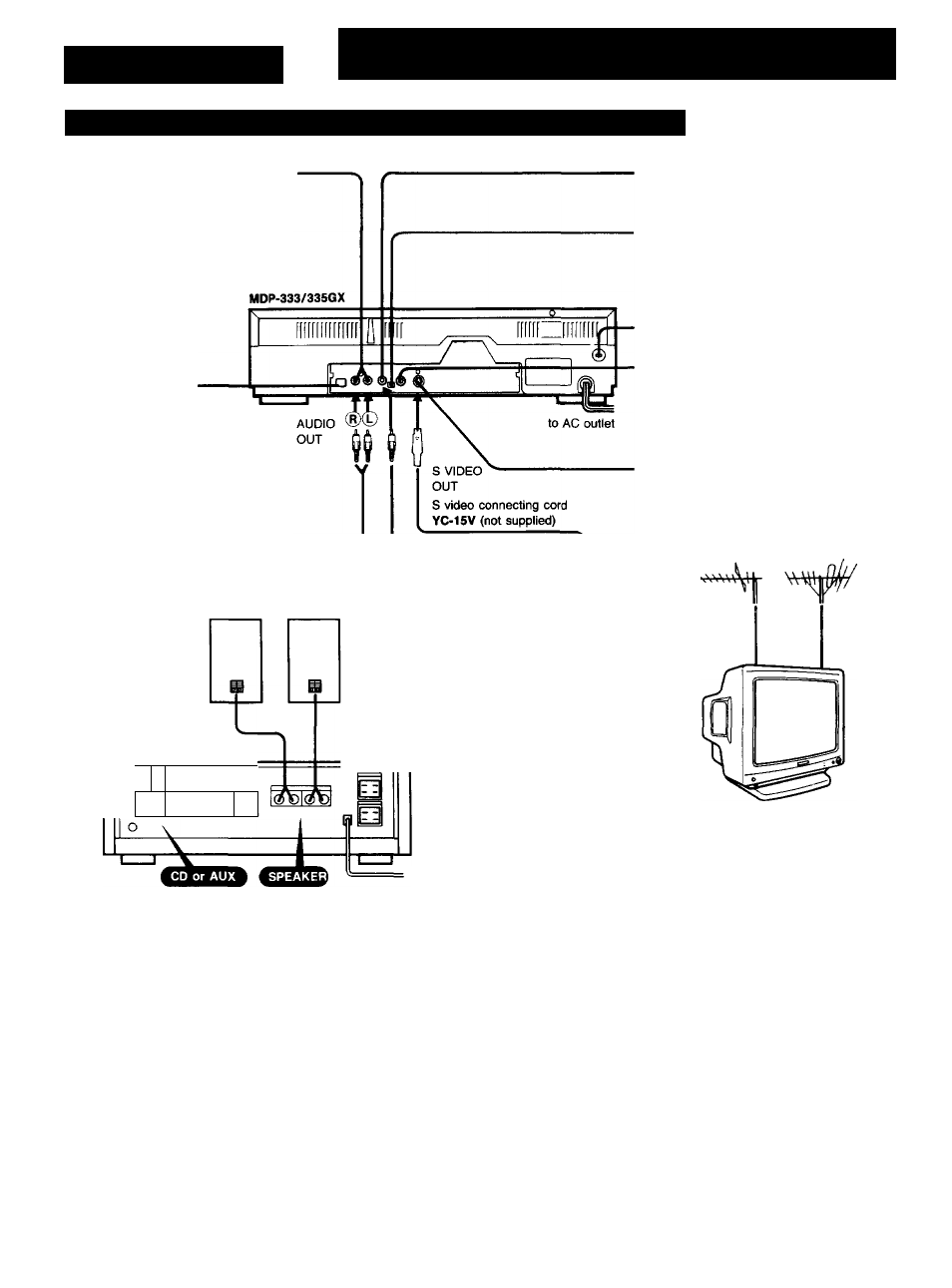

To Connect to Audio System and to TV with Video Inputs
AUDIO OUT jacks (phono jacks)
Connect to the audio input
jacks of a TV set or the AUX
input jacks of an amplifier. The
output signal will be the same -
that is, digital or analog -
depending on the signal
recorded on the disc.
DIGITAL OUTPUT
CONNECTOR (optical)
This jack permits optical fiber
connection to an amplifier or
D/A converter unit with optical
input. For connection, use the
optional audio fiber cable POG
15.
Discs that are not digitally
recorded will not be output.
Supplied audio connecting cord* (Red/White)
VIDEO OUT jack (phono jack)
Connect to the video input jack of
a TV set or VCR.
RFU DC OUT jack (mini
mini jack)
This jack supplies power to the
(optional) RFU adaptor for TV
sets without audio/video Inputs.
Voltage selector (see page 4)
MDP-355GX only
AUDIO OUT monaural jack
(phono jack)
Connect to the audio input jack
of the TV set or the (optional)
RFU adaptor.
S VIDEO OUT jack
Connect to the S video input
jack of a TV set or VCR.
VIDEO OUT
Supplied video connecting
cord (Yellow)
Speakers
(D®
loo I
о <
о (
n h ob о b d
) olio olio o|
о о
о О
RK-C74 (not supplied)
Amplifier
to S VIDEO IN
to VIDEO IN
to AUDIO IN
to AC outlet
You can connect the player's audio output to the TV
instead of an audio system. If the TV set has only a
monaural phono jack for audio, use the VMC-720M/730M
connecting cord (not supplied).
Set input
selector to
“Video” to view
videodiscs.
Precautions on connecting
• Make sure that all equipment is turned off before connecting or
disconnecting any cables.
• Firmly insert the plugs into the jacks. A loose connection can
lead to noise.
• When unplugging a cabie, grasp the plug. Never pull the cable
itself.
• To prevent interference, turn off ail equipment connected, but
not currently in use.
• if noise is emitted from the audio or video input, try moving the
equipment further apart.
• Connection methods differ. When in doubt, consult the
manufacturer’s manual.
Connection of optical fiber cable
Remove protective cover. Plug in connector firmly.
