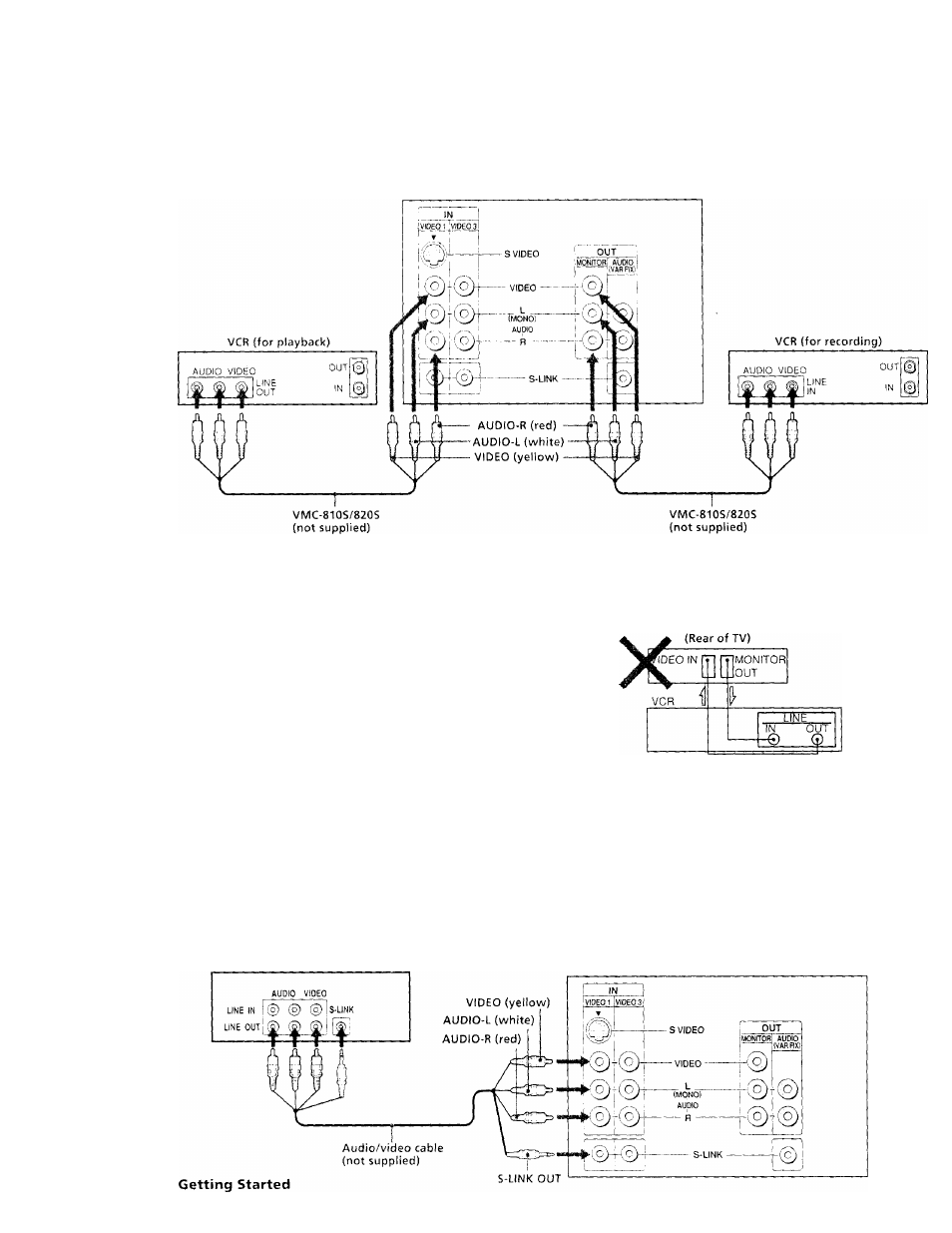

Connecting two VCRs for tape editing using MONITOR OUT
■ KV-27V25I27V35I29V3SCI29V65MI29V75MI32V25I
32V35I34V35CI35V35I35V45I35V75 only
MONITOR OUT allows you to record a program that is
on the screen.
(Rear of TV)
The above type of connection should only be used
when you connect from the line input of one VCR, and
from the line output of a second VCR.
When amnecting a single VCR to the TV, do not connect the
MONITOR OUT jacks at the rear of the TV to the VCR's line input,
while at the same time connecting from the TV's VIDRO IN jacks
to the \'CR's line output, as shown below.
Notes
• Do not cliange the input signal while editing tirrough .MONITOR
OUT, or the output signaj «’ill ajso ehange,
• h'dii can use the S video jack to connect a VCR for playback and the
composite video jack to connect a VCR for recording.
Using the S-Link function
■ KV-27V25I2 7 V35I29 V35C/29 V6SMI29 V75MI32 V25I
32V35I34V35CI35V35I35V45I35V75 only
The S-Link feature allcrvvs you to operate the TV and
VCR with the S-Link function in the following ways:
• When you press the VCR's play button, the TV's
input mode is automatically changed to vicleo, and
the VCR starts playing a tape.
VCR
• You can turn off the TV and VCR together using the
SYSTEM OFF button (see page 35 for details).
Notes
• The TV mav malfunction if you connect the S-Link cable to the TV
without connecting the other end of the cable to the VCR.
• When making the S-Link connection, be sure to insert all the
connectors firnilv.
• Connect the TV''s S-link terminal to the other equipment's S-Link
terminal only; otherwise, the S-link connection will not function.
(Rear of TV)
10
