Entering New Timings Plug and Play
When using a video mode that is not one of the factory
preset modes, some fine tuning may be required to optimize
the display to your preferences. Simply adjust the monitor
according to the preceding adjustment instructions. The
adjustments will be stored automatically and recalled
whenever that mode is used.
A total of 8 user-defined modes can be stored in memory.
If the 9th mode is entered, it will replace the first.
Power Saving Function
This monitor meets the power saving guidelines set by the
International ENERGY STAR Program as well as the more
stringent TC092 803299 (NUTEK) guidelines. It is capable
of reduced power consumption when used with a computer
equipped with Display Power Management Signaling
(DPMS). By sensing the absence of the sync signal coming
from the computer, it will reduce the power consumption as
follows:
CAUTION: The Power Saving function will automatically
put the monitor into Active-off state if the power
switch is turned on without any video signal
input. Once the horizontal and vertical syncs are
sensed, the monitor will automatically return to
its Normal operation, state.
State
Power
consumption
Required
resumption
time
6 POWER
indicator
1
Normal
operation
< now green on
2
Stand-by
(1st step of
power saving)
< 15 W
approx.
3 sec.
Orange and
green flashes
alternately
3
Suspend
(2nd step of
power saving)
<15 W approx.
3 sec.
Orange and
green rlashes
alternately
4
Active-off
(3rd step of
power saving)
<8 W
approx.
10 sec.
Orange on
5 Power-off 0 W — off
This monitor complies with DDC™1 and DDC2B, which are
the Display Data Channel (DDC) standards of VESA.
When a DDCl host system is connected, the monitor
synchronizes with the V. CLK in accordance with the VESA
standards and outputs the EDID (Extended Display
Identification Data) to the data line.
When a DDC2B host system is connected, the monitor
automatically switches to the DDC2B communication.
DDC"'"' is a trademark of the Video Electronics Standard
Association.

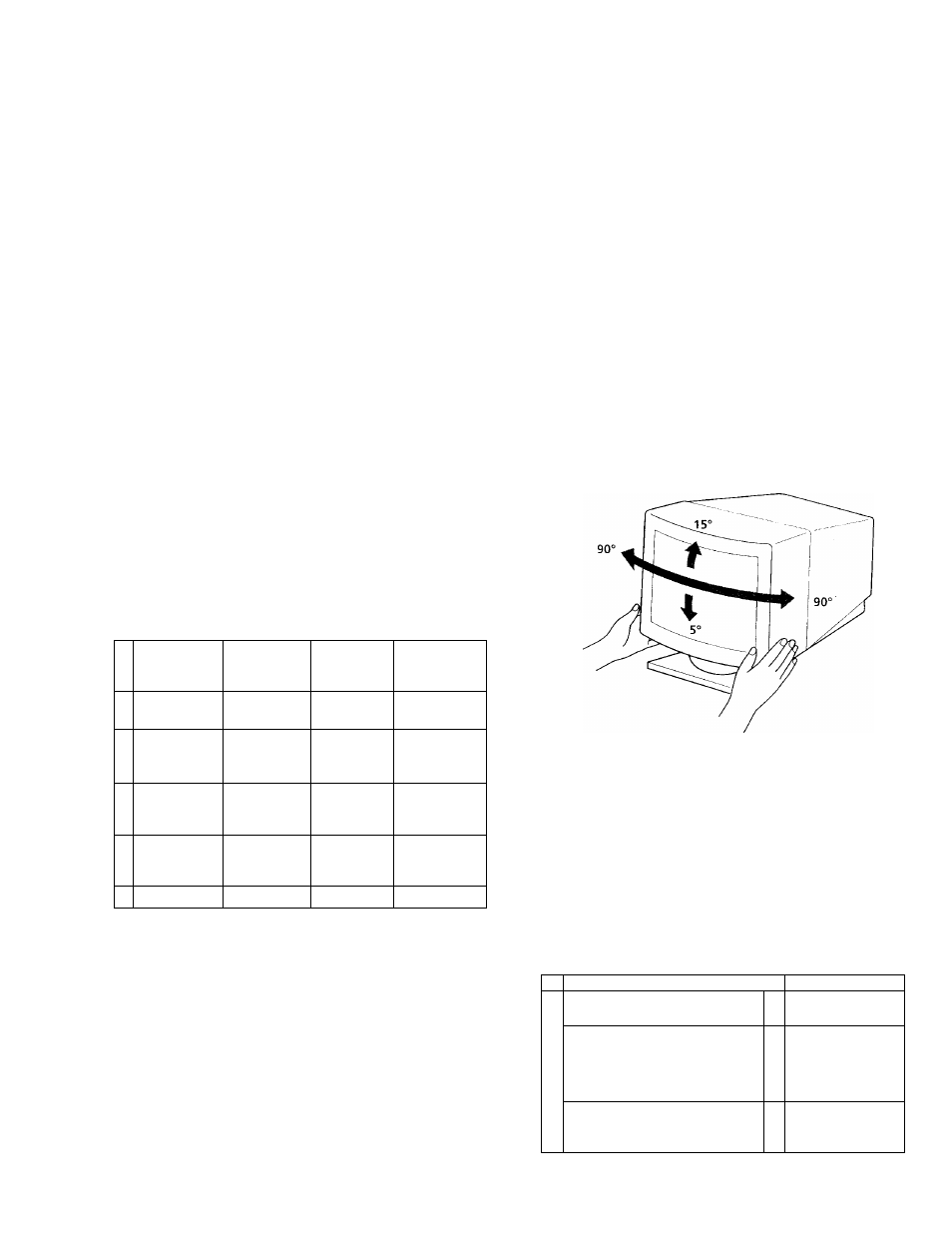

Use of the Tilt-Swivel
With the tilt-swivel, this unit can be adjusted to be viewed at
your desired angle within 180° horizontally and 20" vertically.
To turn the unit vertically and horizontally, hold it at its
bottom with both hands.
Damper Wire
Using a white background, very thin horizontal stripes on
the screen are visible as shown on the illustration. These
stripes are damper wiresi These wires are attached to the
aperture grille inside the Trinitron tube and are there to
dampen vibrations of the aperture grille in order to prevent
them from influencing the picture quality.
Damper wire
t (CPD-200ES/
1 200EST only)
/
V y
1 Approx. 6 cm
