Getting Started Using Your Monitor
Before using this monitor, please make sure that the following
items are included in your package: Multiscan 100ES/200ES
monitor (1), power cord (1), warranty card (1), "Windows95
Monitor Information Disk" (1), and this operating instruction
manual (1).
This monitor will sync with any IBM or compatible system
equipped with VGA or greater graphics capability. Although
this monitor will sync to other platforms running at horizontal
frequencies between 30 and 70 kHz, including Macintosh and
Power Macintosh system, a cable adapter is required. Please
consult your dealer for advice on which adapter is suitable for
your needs.

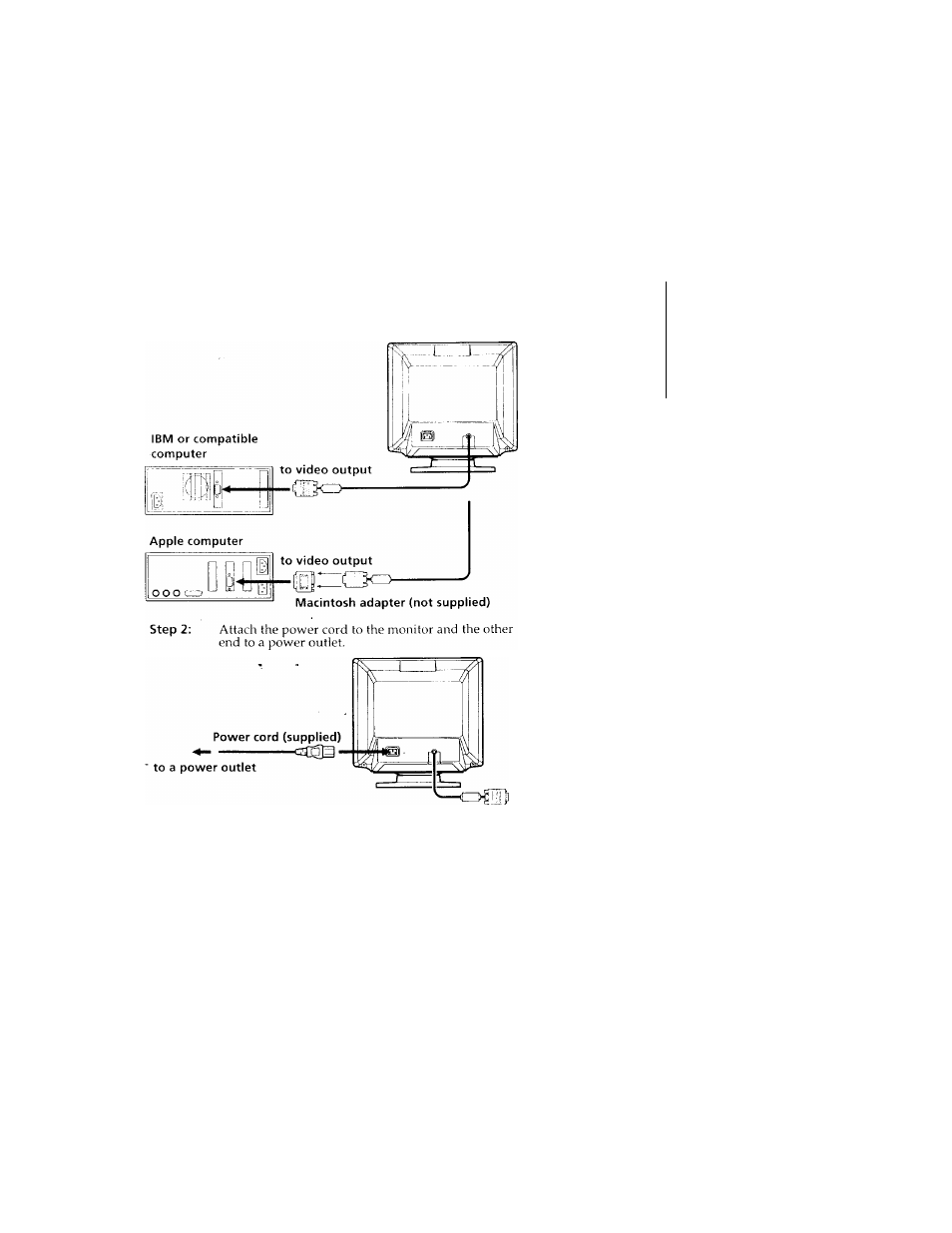

Step 1: With the computer switched off, attach the video
signal cable to the video output.
Step 3: Turn on the monitor anci computer.
Step 4: If necessary, adjust the user controls according to
your personal preference.
The installation of your Multiscan 100ES/200ES is compilete.
Enjoy your monitor.
1) VGA is a trademark of IBM Corporation.
2) VESA is a trademark of the non-profit organization. Video
Electronics Standard Association.
3) Macintosh is a trademark of Apple Computer Inc.
4) Windows'^ is a registered trademark of Microsoft
Corporation in the United States and other countries.
Preset and User Modes
The Multiscan 100ES/200ES has factory preset modes for the 8 most
popular industry standards for true "plug and play" capability.
For less common modes, the Multiscan 10OES/2OOES's Ibigital
Multiscan Technology will perform all of the complex adjustments
necessarx' to ensure a high qualitx picture for an\' timing betu een
30 and 70 kHz.
CPD-100ES/100EST and CPD-200ES/200EST
No. Resolution
(dots X lines) Horizontal
Erequencx' Vertical
Frequency
Graphics
Mode
1 640 X 480 31.5 kHz 60 Hz VGA Graph
2 640 X 480 43.3 kHz 85 Hz VESA
3 800
X
600 46.9 kHz 75 1 Iz VESA
4 800 X 600 53.7 kHz 85 Hz VESA’’
5 832 X 624 49.7 kHz 75 Hz Macintosh
16" Color
6 1024 X 768 60.0 kHz 75 Hz VESA
7 1024 X 768 68.7 kHz 85 Hz VESA
8 1280 X 1024 64.0 kHz 60 Hz VESA
For the customers using the Windows“>95
Install the new model information of the Sony computer displax
from "Windows95 Monitor Information Disk" into your PC. (To
install the file, refer to the attached "About the Windows95 Monitor
Information Disk/File".)
This monitor complies with "VESA DDC", the standards of
Plug&Play. If your PC/graphic board complies with DDC,
select "Plug and Play Monitor (VESA DDC)" or this
monitor's model name (CPD-IOOES/IOOEST or CPD-200ES/
200EST) as "Monitor type" from "Control Panel" on
Windows95. Some PC/graphic boards do not comply with
DDC. Even if they comply with DDC, they may have some
problems on connecting to this monitor. In this case, select
this monitor's model name (CPD-IOOES/IOOEST or CPD-
200ES/200EST) as "Monitor type" on Windows95.
Recommended horizontal timing conditions
Horizontal sync width should be: >1.0 yiscc.
Horizontal blanking width should be: >3.6 psec. (Multiscan lOOES)/
>3.0 visec. (Multiscan 200ES).
Vertical sync width should be: < 560 psec.
Note
CPD-IOOF.S/IOOEST and CPD-200ES/200EST does not apply to
■ Macintosh 21” cokxr mode.
