Trail Tech TTO TEMP METER 2 STK KTM THERMOSTAT 722-EH6 User Manual
Temperature sensor, Ktm thermostat replacement, Kit contents: installation

010-ELV-121
| 7500-3080 |
Tech Support: 360-687-4530
TEMPERATURE SENSOR
KTM ThERMOSTAT REPLAcEMENT
2008-2014 250-530 Xc-W, XcF-W, EXc, EXc-F MOdELS (iNcLUdiNg chAMPiONS & 6 dAyS EdiTiONS)

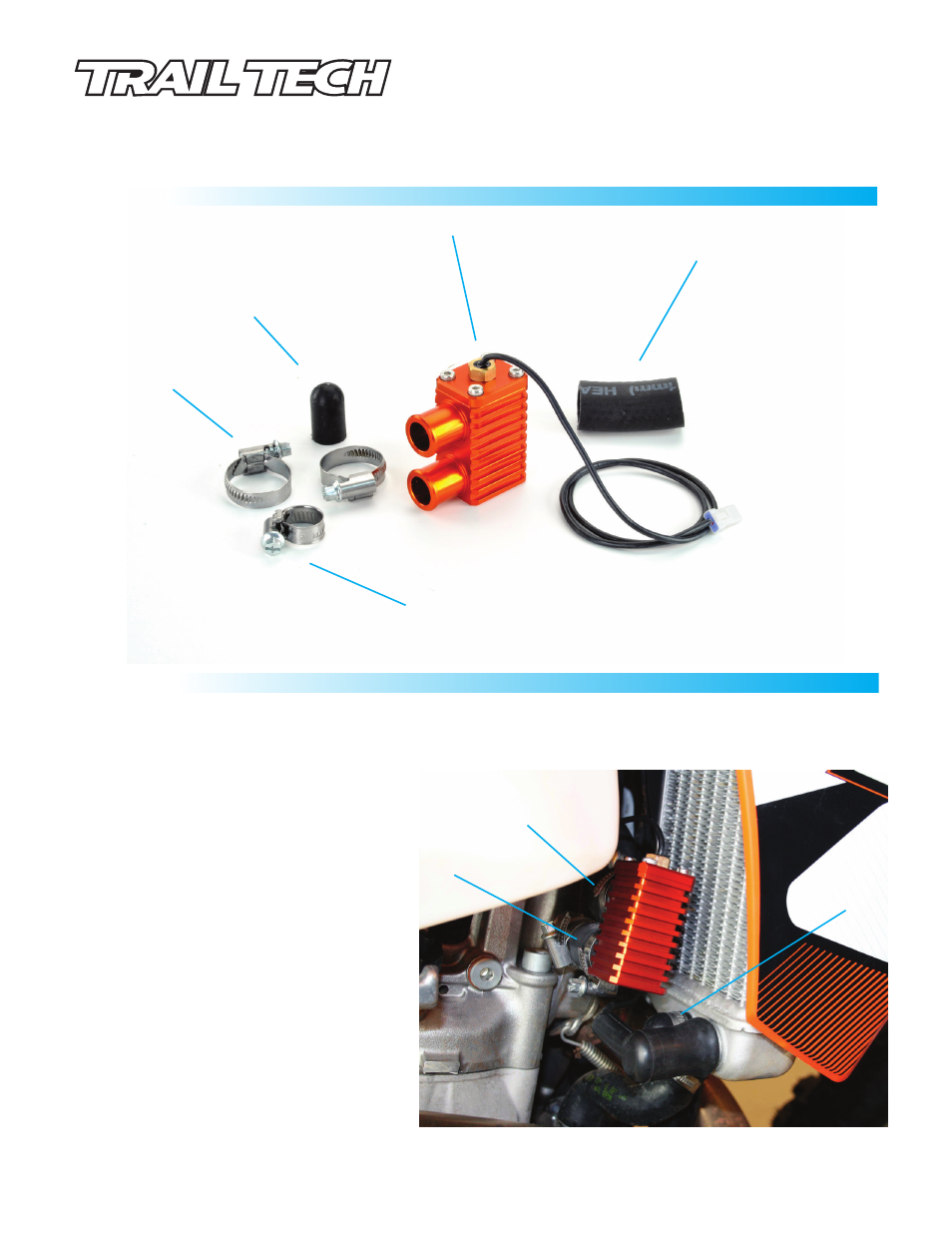

KiT cONTENTS:
iNSTALLATiON:
1. Drain cooling system.
2. Remove OEM thermostat housing, head connection hose, and bypass hose.
3. Install bypass cap with 1/2 hose clamp on radiator.
4. Install coolant hose with one 3/4” hose clamp on head.
5. Install sensor body with two 3/4” hose clamps on coolant hose to frame and coolant hose to
head.
6. Refill cooling system.
7. Connect temperature sensor to computer.
8. Start engine and check for leaks before riding.
Sensor Body
coolant hose
3/4” hose clamp
Bypass cap
1/2” hose clamp
coolant hose to head
coolant hose to Frame
Bypass cap
