SHOCK MOUNT FOOT RING
Item No. Description Part No. (XL-55 Only) Qty.
1 Rubber Shock Ring XL50-4C18 (GL55-4C21) 1
2 Foot Ring XL50-4C19 (GL55-4C19) 1
3 Hex Nut 6310-0135 4
4 Washer 6430-0125 4
5 Carriage Bolt 6620-0401 4
Replacement of Shock Mount Foot Ring
1. Empty or transfer all contents of tank. Vent to atmospheric pressure.
2. Gently lay the container on its side and unbolt the four (4) carriage bolts that attach the
foot ring and rubber shock ring to the tank.
3. Slide off the damaged foot ring and rubber shock ring.
4. Assemble rubber shock ring into new foot ring and force over shock mount ring on
container. Use a rubber hammer to drive the rubber shock ring into place.
5. Using a 1/2 in. drill bit, drill holes through the rubber so that the carriage bolt slides in
smoothly.
6. The holes in foot ring must be positioned in alignment with holes in shock mount ring.
Using the 4 bolts, washers and nuts, fasten the new parts to the container.
7. After securing the shock mount ring, gently lift the container to the upright position and

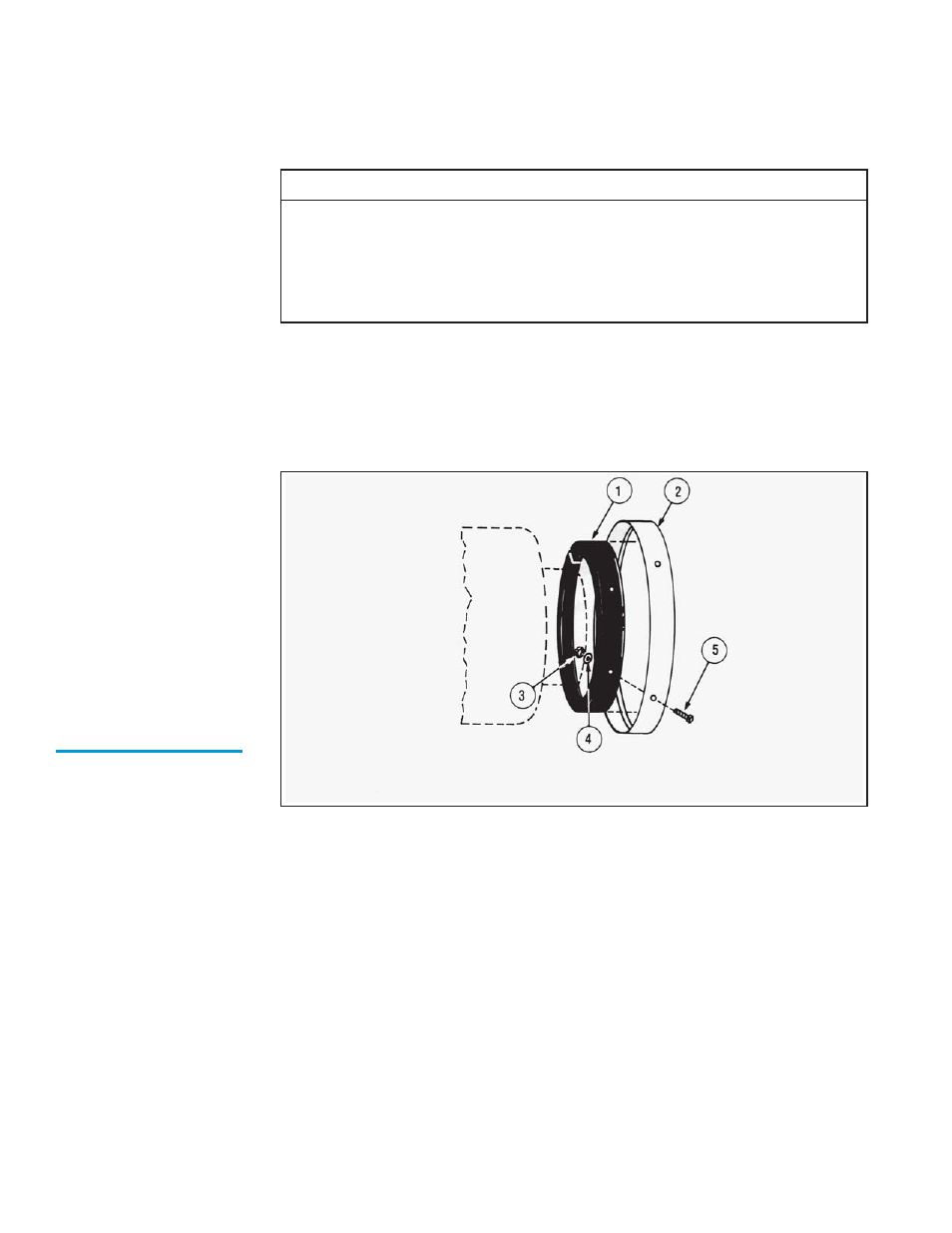

Shock Mount
Foot Ring -
Exploded View
