Assembly instructions
for the wall mounting
- Mark the positions of the two dowel
holes with a pen (boring template, fig. 3).
- Drill the two holes with a 4 mm drill.
- Put the supplied dowels in the holes.
- Screw one of the attached screws in the
upper dowel until the distance between
the wall and the screw head amounts to
ca. 6.5 mm (see fig. 1).
- The wall mounting can now be hung in
with the upper screw and is fixed with
the lower screw.
Important note:
This wall mounting has to be fixed out of
reach of a person using the bath tub or
shower (see fig. 2).
Please consider the length of the power cord
and the location of the socket when you
install the wall mounting.
min. 6
0 cm
min. 6
0 cm
ca
. 1
3
0 c
m

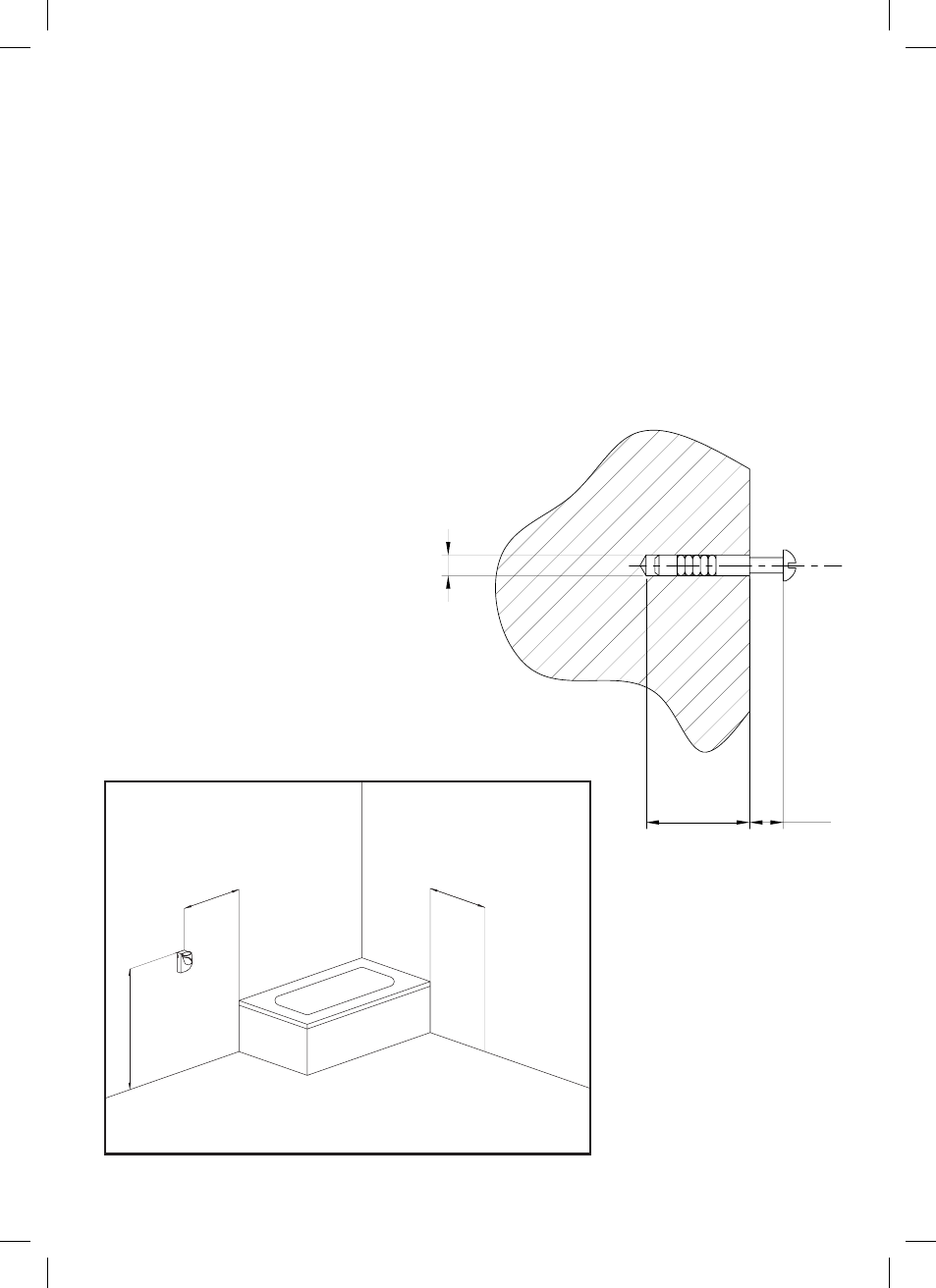

Fig. 2
20 mm 6,5 mm
4 mm
Fig. 1
